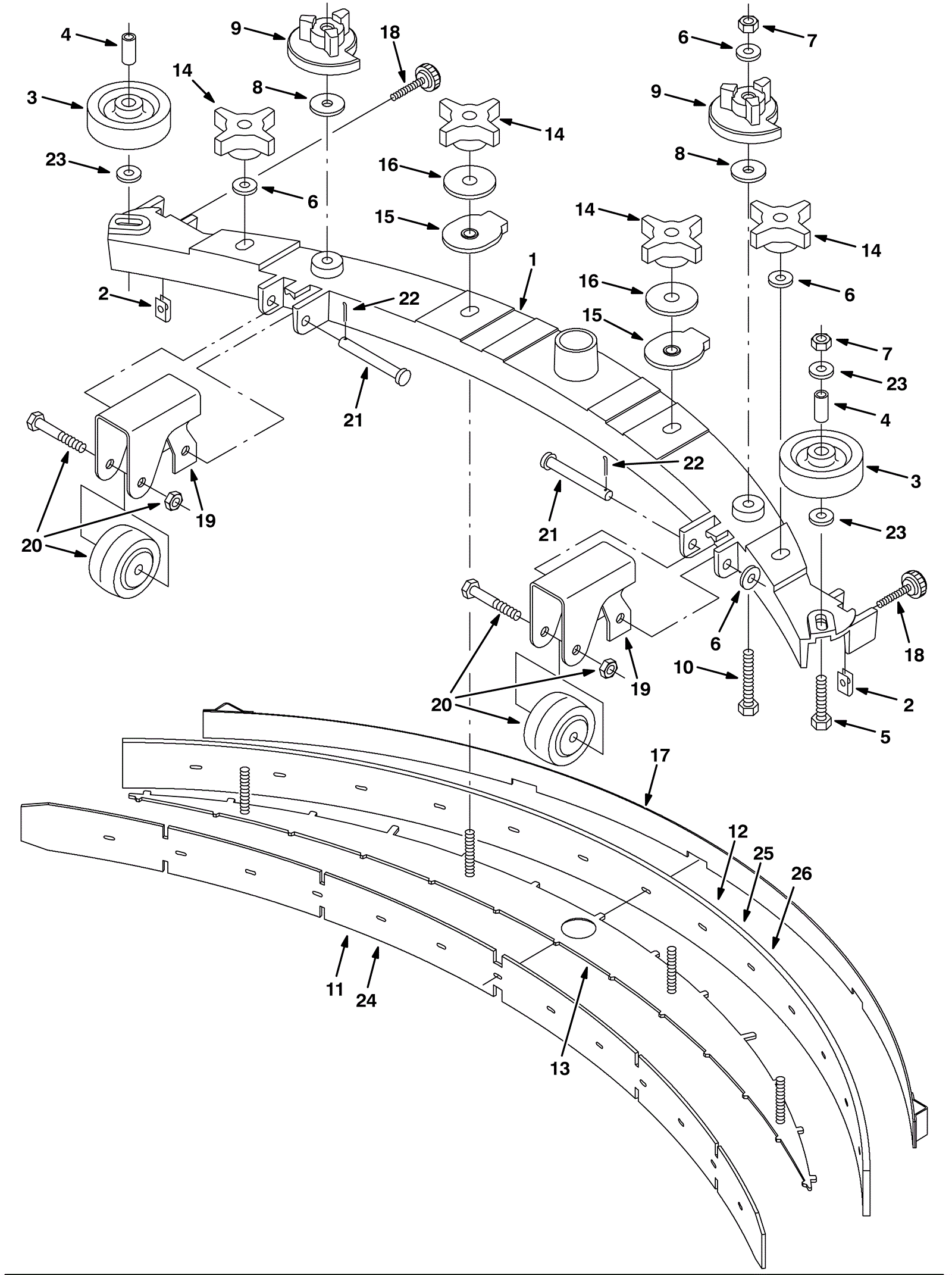

7080 Rear Squeege Assembly - 28 inch

#PartDescriptionPriceReqNotesAvailability
0 175-5296 28 inch (700mm) squeegee assembly $1,584.00 1 (includes 1-23) usually ships 1-5 days
1 175-3465 28 inch (700mm) squeegee weldment $230.89 1 usually ships 13-17 days
2 175-2291 Nut 1/4-20 speed clip $4.36 2 ships same day
3a 175-7919 Guide wheel $5.50 2 ships same day
3b 991-8570 Bumper wheel $2.97 2 (NON-OEM) ships same day
4 175-2249 Sleeve $4.22 2 ships same day
5 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 2 ships same day
6 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 6 usually ships 19-32 days
7 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
8 175-2309 Washer $5.28 2 ships same day
9 175-2183 Adjustment cam $9.02 2 ships same day
10 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel $3.83 2 ships same day
11a 175-3476 Squeegee blade 26 & 28 in kit rear gum rubber/front linatex $81.95 1 (includes 11b-12) usually ships 13-17 days
11b 175-3466 Squeegee blade 26 and 28 inch linatex front (red) $29.59 1 ships same day
11c 991-1921 28 inch squeegee blade kit gum rubber $30.17 1 (NON-OEM) usually ships 13-17 days
11d 991-7139 Squeegee blade 26 inch gum rubber front (red) $16.41 1 (NON-OEM) ships same day
12 175-3477 Squeegee blade 26 and 28 inch gum rubber rear (tan) $29.48 1 ships same day
13 175-3467 Squeegee retainer plate 28 inch $195.47 1 usually ships 13-17 days
14 175-2208 Plastic star knob $5.28 4 ships same day
15 175-3469 Squeegee mounting ring $14.30 2 usually ships 13-17 days
16 175-3470 Washer .53b 1.88d .12 steel plated $4.88 2 usually ships 13-17 days
17 175-3471 Squeegee strap rear 28 inch $73.59 1 usually ships 13-17 days
18 175-2180 Knob $6.49 2 ships same day
19 175-5297 Squeegee wheel bracket $34.54 2 usually ships 13-17 days
20 175-5298 Squeegee wheel assembly $104.61 2 ships same day
21 173-1595 Clevis pin (OBSOLETE) $4.88 2 usually ships 13-17 days
22 175-6176 Cotter pin $3.30 2 ships same day
23 999-0024 Washer 5/16 flat stainless steel $1.34 4 usually ships 19-32 days
24a 175-3475 Squeegee blade 26 and 28 inch kit urethane $181.17 1 (includes 24b-25) ships same day
24b 175-2067 Squeegee blade 26 and 28 inch urethane front $99.66 1 ships same day
24c 991-9181 BLADE, SQ FRONT, 35"URE [700MM] $37.63 1 (NON-OEM) ships same day
24d 991-3178 Squeegee blade 26 and 28 inch PRIMOthane front $24.66 1 (NON-OEM) ships same day
25a 175-2068 Squeegee blade 26 and 28 inch urethane rear $122.32 1 ships same day
25b 991-3179 Squeegee blade 26 and 28 inch PRIMOthane rear $26.35 1 (NON-OEM) ships same day
26a 175-3468 Squeegee blade 26 and 28 inch linatex rear (red) $42.02 1 ships same day
26b 991-7140 Squeegee blade 26 inch gum rubber rear (red) $41.80 1 (NON-OEM) ships same day
