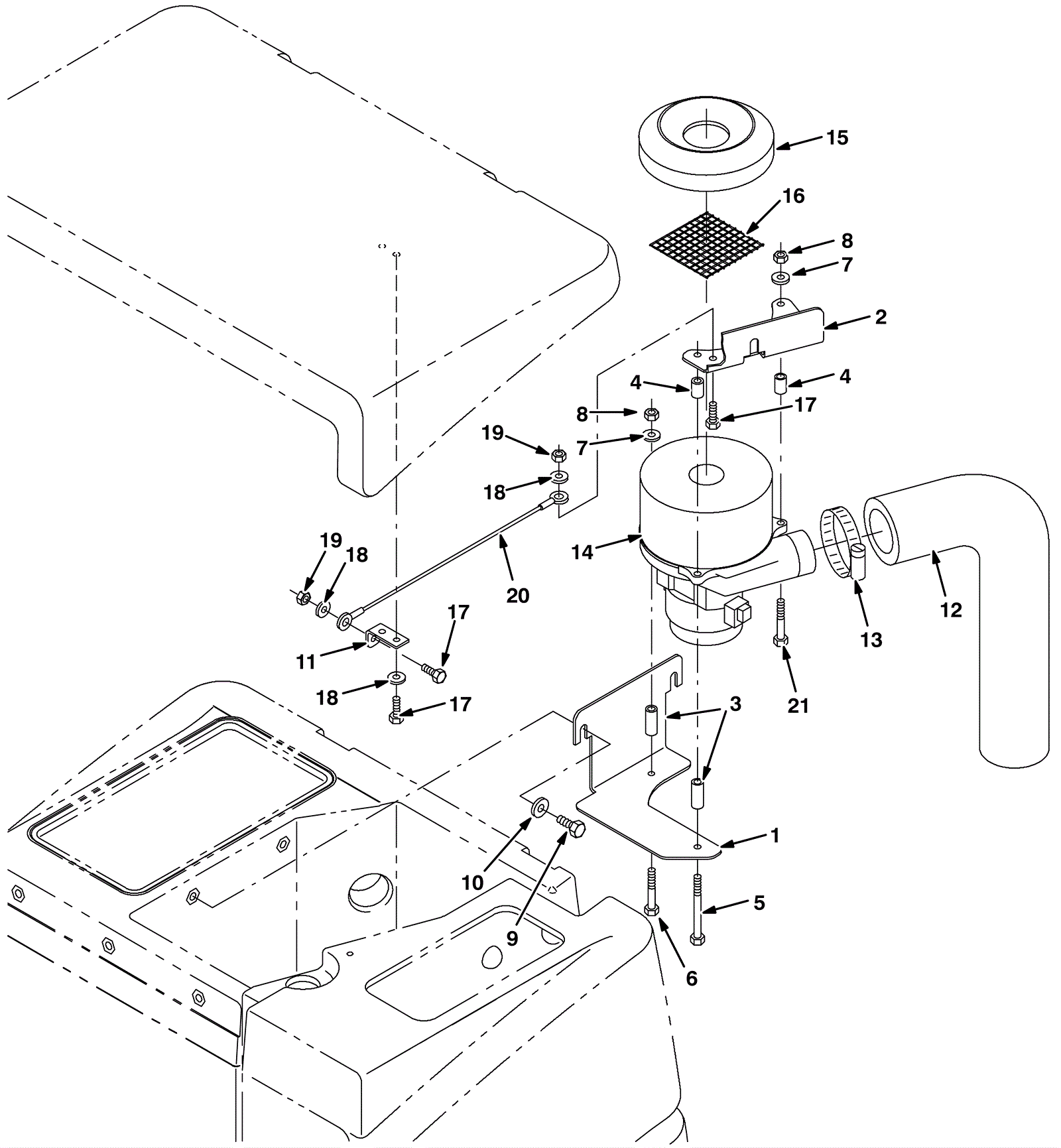

7080 Vacuum Fan Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4997 Vac motor bracket $22.00 1 usually ships 1-5 days
2 175-4998 Vac motor bracket $18.15 1 usually ships 1-5 days
3 175-2207 Sleeve $5.39 2 ships same day
4 175-3398 Sleeve $7.26 2 usually ships 5-16 days
5 175-3399 Bolt M6-1 x 80mm hex head stainless steel $4.95 1 usually ships 5-16 days
6 175-3400 Bolt M6-1 x 55mm hex head stainless steel $3.96 1 usually ships 1-5 days
7 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 3 ships same day
8 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 3 ships same day
9 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 3 ships same day
10 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 3 ships same day
11 175-3406 Cable bracket $59.07 1 usually ships 5-16 days
12 175-3401 Vacuum motor exhaust hose $71.17 1 ships same day
13 175-2226 Nylon wire tie $3.30 1 ships same day
14 175-3402 36V 3 stage vacuum motor assembly $464.31 1 (includes 15-16) usually ships 5-16 days
14b 991-1202-D 36V 3 stage vacuum motor tangential with Delphi plug $107.86 1 (NON-OEM) usually ships 3-26 days
15 175-3403 Fan seal $17.38 1 usually ships 5-16 days
16 175-3404 Fan inlet screen $16.28 1 usually ships 5-16 days
17 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
18 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
19 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
20 175-5200 Cable $33.33 1 usually ships 5-16 days
21 175-0758 Bolt M6-1 x 40mm hex head stainless steel $3.30 1 usually ships 1-5 days
