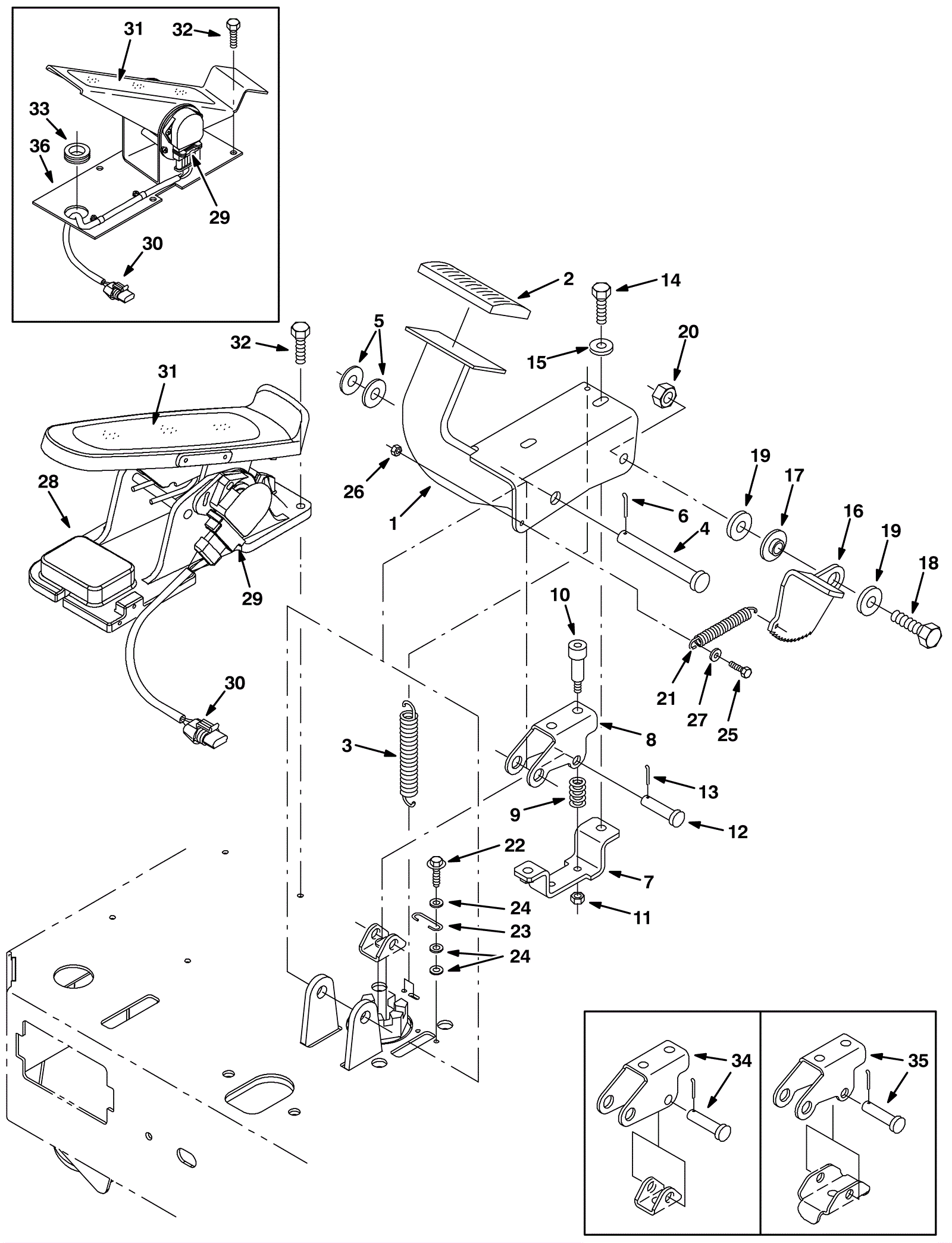

7080 Brake Pedal and Directional Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-5336 Brake pedal weldment $112.42 1 usually ships 1-5 days
2 175-3279 Pedal pad $29.92 1 usually ships 5-16 days
3 175-2064 Extension spring $9.35 1 usually ships 5-16 days
4 175-4960 Clevis pin $10.01 1 usually ships 5-16 days
5 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
6 175-2106 Cotter hair pin $3.30 1 ships same day
7 175-4961 Spring mounting channel weldment $30.03 1 usually ships 1-5 days
8 275-5337 Brake channel mounting bracket $28.27 1 (after SN 10251077) usually ships 1-5 days
9 175-3284 Compression spring $15.62 2 usually ships 1-5 days
10 175-3285 Bolt 1/4-20 x 5/16-1 shoulder $6.60 2 usually ships 1-5 days
11 999-0609 Nut 1/4-20 hex stainless steel $0.99 2 ships same day
12 175-2111 Clevis pin $3.85 1 ships same day
13 175-6176 Cotter pin $2.42 1 ships same day
14 175-4963 Bolt M6-1 x 20mm hex head $4.73 2 usually ships 1-5 days
15 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
16 175-3286 Brake pedal lock $73.15 1 usually ships 1-5 days
17 175-3287 Flanged bushing $5.61 1 ships same day
18 175-3258 Bolt M10-1.5 x 35mm hex head $3.96 1 usually ships 1-5 days
19 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
20 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
21 175-2065 Extension spring $10.12 1 usually ships 5-16 days
22 175-3289 Bolt M5-.8 x 16mm hex head $3.96 2 usually ships 5-16 days
23 175-3290 Parking brake spring $5.83 1 usually ships 1-5 days
24 999-0006 Washer 3/16 flat zinc plated $0.99 6 ships same day
25 175-3291 SCREW, HEX, M4 X 0.70 X 20, 8.8 (Tennant Industrial) $4.84 1 usually ships 5-16 days
26 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 1 ships same day
27 999-0412 Washer #8 SAE flat $0.99 1 ships same day
28 175-4964 Foot pedal assembly $692.01 1 (includes 29-31a) usually ships 5-16 days
29 175-4966 Pedal postion sensor $264.55 1 usually ships 5-16 days
30 175-4967 Pedal harness $130.13 1 usually ships 5-16 days
31a 275-9283 Non-skid tread $11.11 1 (after SN 10371923) usually ships 1-5 days
31b 175-3307 Non-skid tread $5.83 1 (before SN 10371924) usually ships 5-16 days
32a 999-0779 Screw M6-1 x 25mm hex head plain finish $0.99 4 (after SN 10371923) ships same day
32b 175-3298 Bolt M6-1 x 12mm hex head $4.47 4 (before SN 10371924) ships same day
33 175-3311 Rubber grommet $4.95 1 (before SN 10371924) usually ships 1-5 days
34 275-2754 Brake linkage replacement kit $230.45 1 (before SN 10230073) usually ships 1-5 days
35 275-2754 Brake linkage replacement kit $230.45 1 (between SN 10230075 and SN 10251077) usually ships 1-5 days
36 N/A Not available Call for price 1 (foot pedal) (before SN 10371924) (replaced by 28) usually ships 3-26 days
