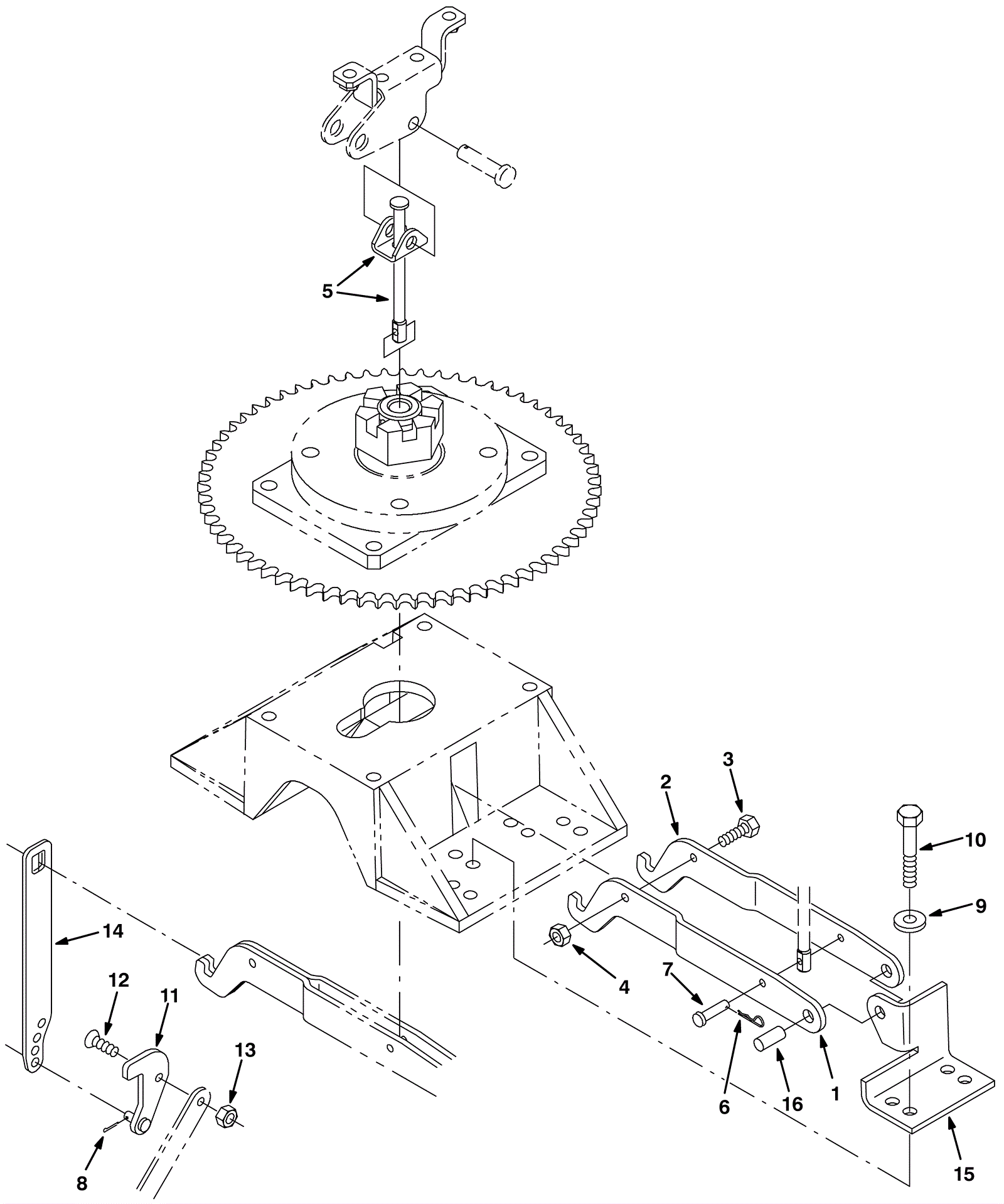

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
175-3267
|
Left side brake arm link (OBSOLETE) |
$24.31
|
1 |
|
usually ships 1-5 days |
2 |
175-3268
|
Right side brake arm link (OBSOLETE) |
$52.91
|
1 |
|
usually ships 1-5 days |
3 |
999-1312
|
Screw M6-1 x 20mm hex head stainless steel |
$0.99
|
1 |
|
ships same day |
4 |
999-0497
|
Nut M6-1 nylon insert lock stainless steel |
$1.03
|
1 |
|
ships same day |
5 |
275-2754
|
Brake linkage replacement kit |
$230.45
|
1 |
|
usually ships 1-5 days |
6 |
175-2113
|
Cotter pin |
$2.42
|
1 |
|
ships same day |
7 |
175-3271
|
Clevis pin |
$5.83
|
1 |
|
usually ships 1-5 days |
8 |
175-3272
|
Cotter pin |
$2.42
|
1 |
|
usually ships 5-16 days |
9 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
10 |
175-3163
|
Screw M8-1.25 x 60mm hex head |
$3.30
|
2 |
|
usually ships 5-16 days |
11 |
175-3273
|
Brake arm weldment (OBSOLETE) |
$45.87
|
1 |
|
usually ships 1-5 days |
12 |
175-3274
|
Screw M6-1 x 16mm flat |
$2.31
|
1 |
|
usually ships 1-5 days |
13 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
$1.32
|
1 |
|
ships same day |
14 |
175-4953
|
Brake link (OBSOLETE) |
$11.44
|
1 |
|
usually ships 1-5 days |
15 |
175-3276
|
Brake pivot bracket (OBSOLETE) |
$19.91
|
1 |
|
usually ships 1-5 days |
16 |
175-3277
|
Brake pin (OBSOLETE) |
$3.17
|
1 |
|
usually ships 1-5 days |
