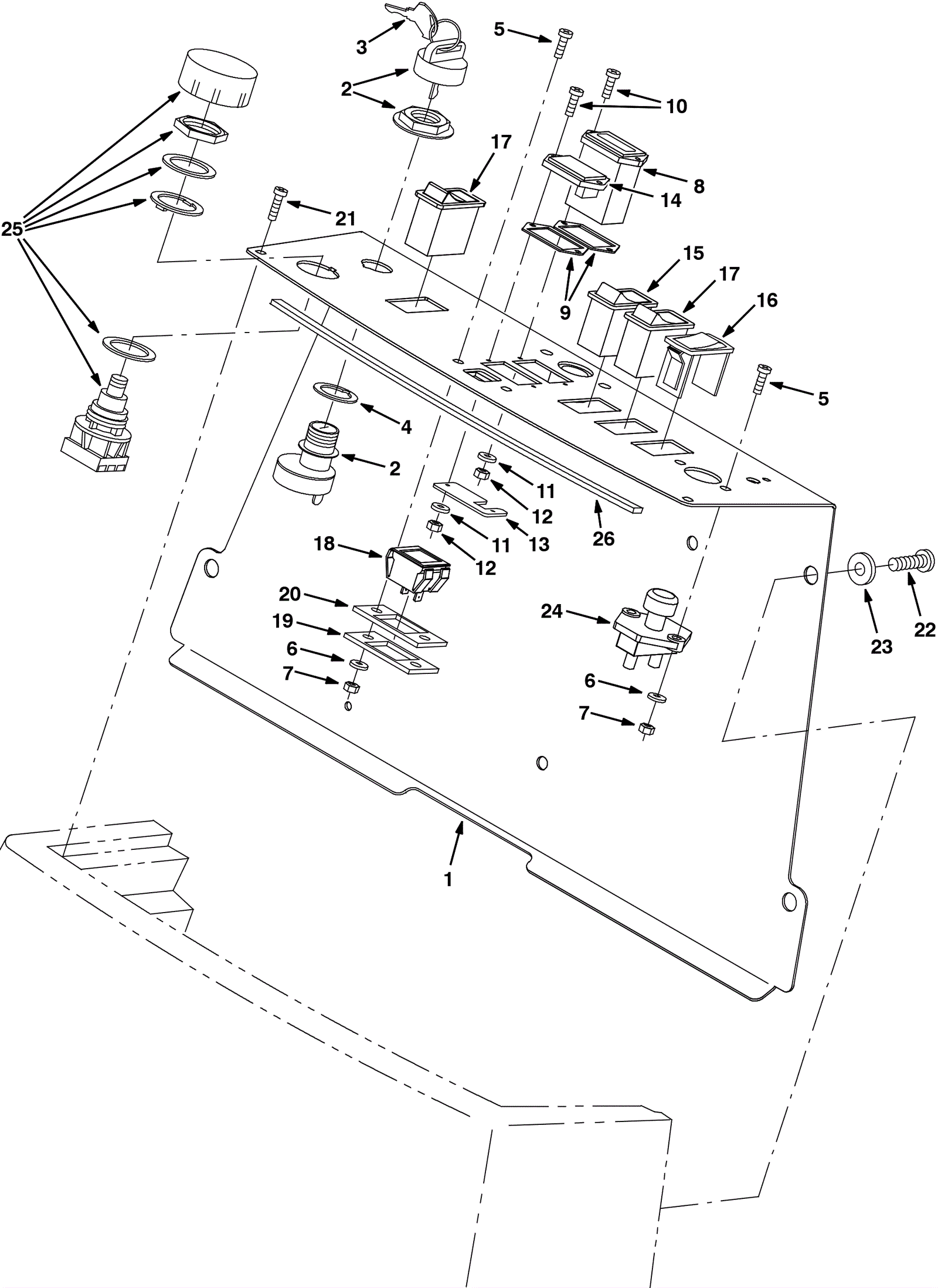

7080 Instrument Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-4928 Instrument panel $86.68 1 usually ships 1-5 days
2 175-4929 Key switch $96.36 1 (includes 3) usually ships 13-17 days
3 175-4930 Replacement key $13.42 1 usually ships 13-17 days
4 175-4931 Key switch washer $9.57 1 usually ships 1-5 days
5 175-4932 Screw M6-1 x 20mm button head $3.83 4 usually ships 1-5 days
6 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
7 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 4 ships same day
8a 175-7079 Hour meter $84.70 1 ships same day
8b 991-7137 Hour meter $78.26 1 (NON-OEM) ships same day
9 175-2327 Gasket $5.50 2 usually ships 13-17 days
10 175-4933 Screw M3-.5 x 12mm pan head $3.30 4 usually ships 1-5 days
11 999-0479 Washer #4 internal star lock zinc plated $0.99 4 ships same day
12 999-0768 Nut M3-.5 hex coarse thread plain finish $1.54 4 ships same day
13 175-4934 Battery gauge support plate $15.73 1 usually ships 1-5 days
14a 175-4935 36V Battery gauge $97.35 1 usually ships 13-17 days
14b 991-9183 GAUGE, DISCHARGE, BATTERY, 36VDC, RT,LED $125.90 1 (NON-OEM) usually ships 13-17 days
15 175-4940 SWITCH, ROCKER, DPDT, ON / OFF / ON (Tennant Industrial) $41.84 1 usually ships 13-17 days
16 175-2556 Switch plug $7.37 1 usually ships 13-17 days
17a 175-2356 Rocker switch DPST $46.64 2 ships same day
17b 991-3035 Rocker switch DPST $57.14 2 (NON-OEM) usually ships 13-17 days
18 175-4936 LIGHT, PANL, 36VDC, 1.1 X 1.0 (Tennant Industrial) $36.84 1 usually ships 1-5 days
19 175-4937 Light mounting plate $5.41 1 usually ships 1-5 days
20 175-4938 Foam seal $2.51 1 usually ships 1-5 days
21 175-3223 Screw 12-16 x 1/2 pan head plastic $5.28 2 usually ships 1-5 days
22 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 4 ships same day
23 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 usually ships 19-32 days
24 175-3218 Push switch SPST $26.40 1 usually ships 13-17 days
25 175-3220 Push switch $59.84 1 usually ships 13-17 days
26 275-5334 Gasket strip (OBSOLETE) $9.57 1 usually ships 1-5 days
