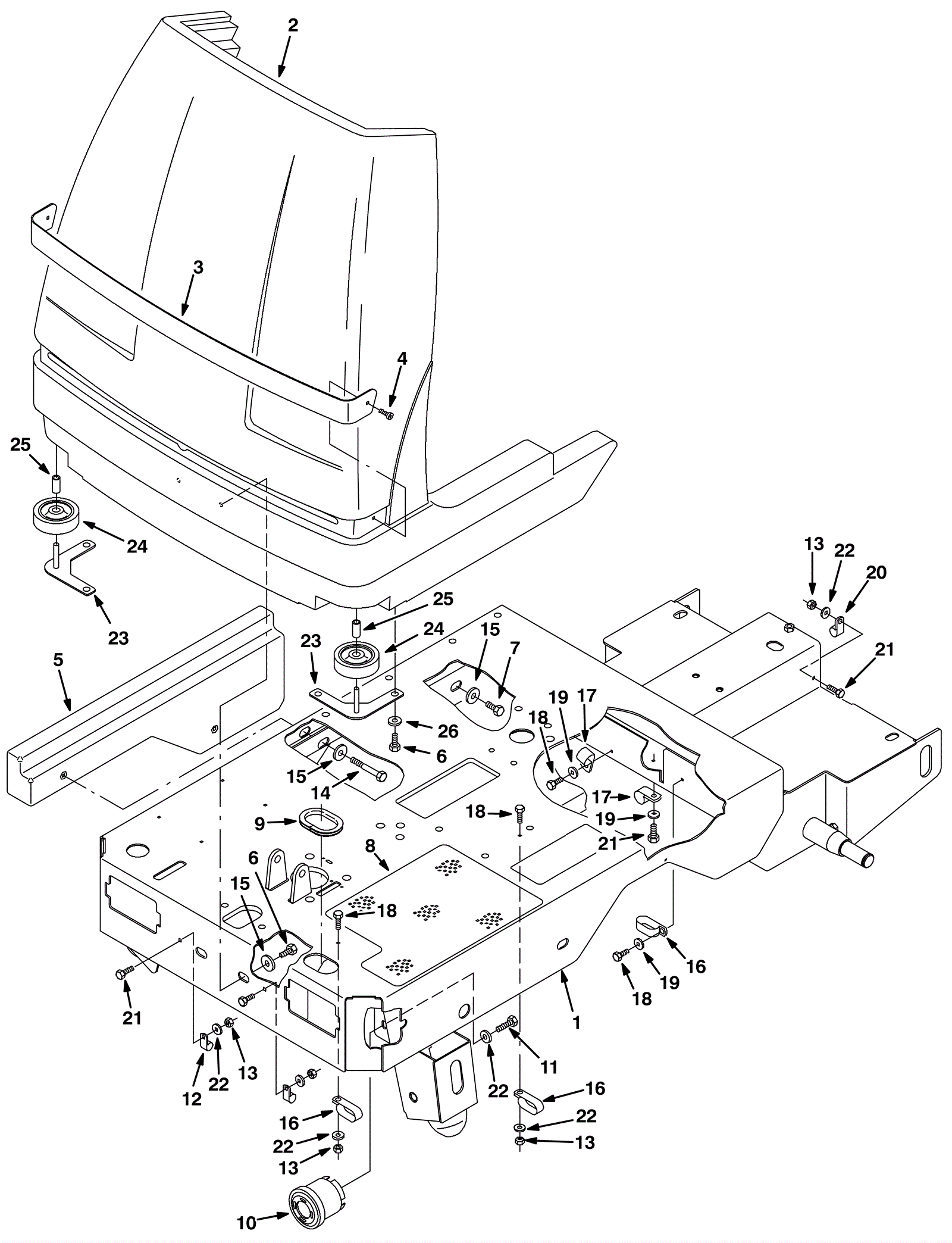

7080 Main Frame Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-1963 Frame $1,705.55 1 usually ships 1-5 days
2 275-5330 Front shroud (OBSOLETE) Call for price 1 usually ships 1-5 days
3 175-4911 Front shroud cover strip $23.98 1 usually ships 1-5 days
4 175-3223 Screw 12-16 x 1/2 pan head plastic $3.96 2 usually ships 1-5 days
5 275-5332 Plastic tank filler panel (OBSOLETE) Call for price 1 usually ships 1-5 days
6 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 10 ships same day
7 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 1 ships same day
8 175-3158 Non-skid tread $24.97 1 usually ships 1-5 days
9 275-1964 Molding (OBSOLETE) $39.71 1 usually ships 1-5 days
10 275-8062 Horn $146.52 1 usually ships 5-16 days
11 999-0633 Bolt 1/4-20 x 5/8 hex head stainless steel $0.99 1 ships same day
12 175-3170 P clamp $3.08 2 usually ships 1-5 days
13 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 5 ships same day
14 175-3163 Screw M8-1.25 x 60mm hex head $3.30 1 usually ships 5-16 days
15 175-2367 Steel plated washer $2.97 8 usually ships 1-5 days
16 175-3171 Cable clamp $4.95 3 usually ships 1-5 days
17 175-2260 P clamp $3.96 2 usually ships 5-16 days
18 999-1087 Bolt M6-1 x 25mm hex head stainless steel $0.99 4 ships same day
19 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
20 175-3168 P clamp $3.96 1 usually ships 5-16 days
21 999-1312 Screw M6-1 x 20mm hex head stainless steel $0.99 4 ships same day
22 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 6 ships same day
23 175-3155 Mounting wheel plate weldment $20.90 2 usually ships 5-16 days
24 175-3156 Bumper wheel $15.18 2 usually ships 5-16 days
25 175-4916 Sleeve $4.84 2 usually ships 5-16 days
26 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 ships same day
