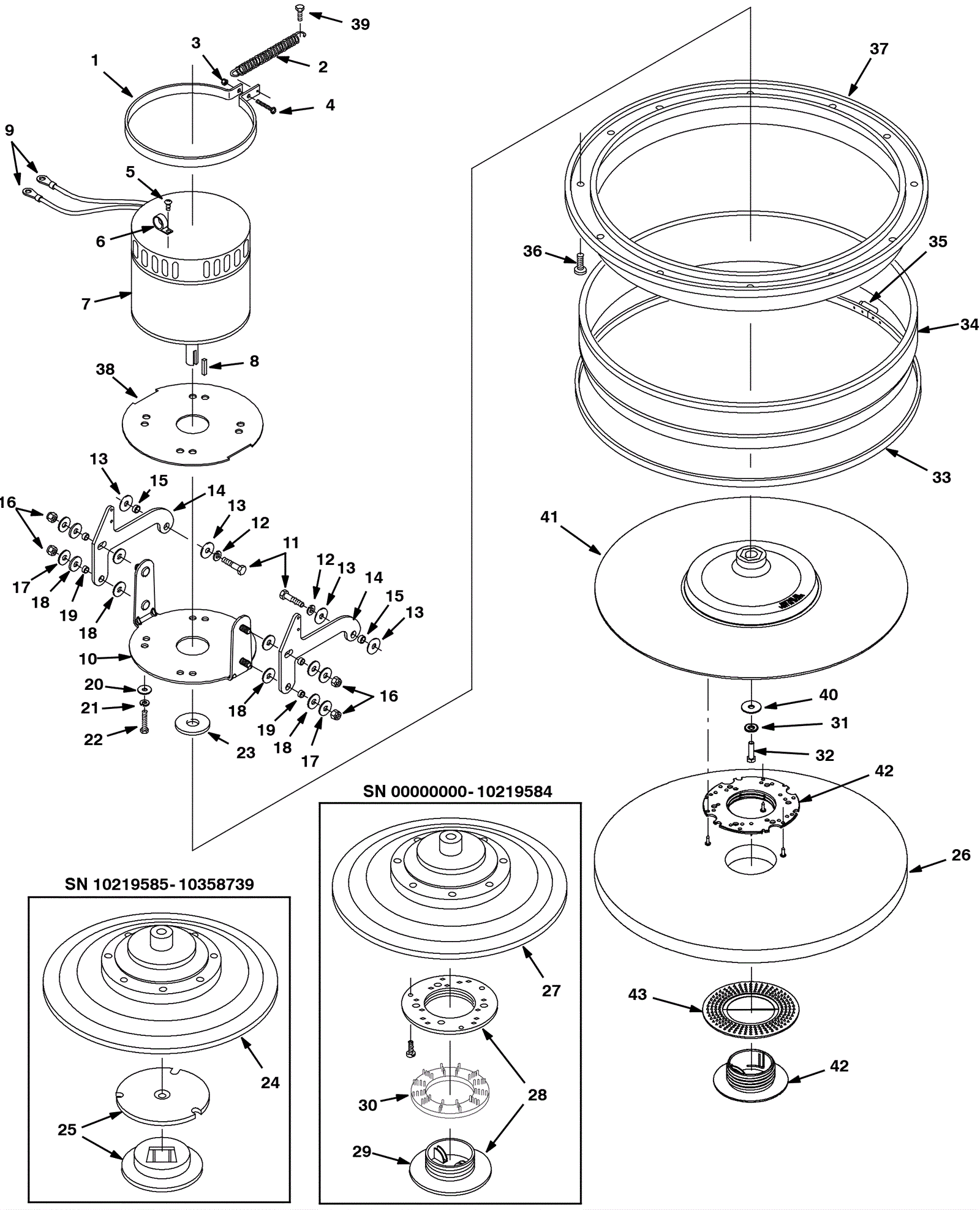

2510 Pad Driver Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-1239 Motor bracket $87.78 1 usually ships 1-5 days
2 175-1240 Spring $14.85 1 ships same day
3 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 1 ships same day
4 999-1325 Screw M6-1 x 40mm pan head stainless steel $2.84 1 ships same day
5 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 1 ships same day
6 999-1654 P clamp $0.99 1 ships same day
7a 175-1242 36V brush motor assembly $1,833.26 1 (includes 7b-9) usually ships 5-16 days
7b 175-1113 Carbon brush (sold individually) $49.39 4 ships same day
8 175-1087 Square keyway $34.76 1 ships same day
9 175-1255 Ring terminal $26.18 2 usually ships 5-16 days
10 175-1243 Motor mounting bracket $162.69 1 ships same day
11 999-1223 Screw M12-1.75 x 25mm hex head stainless steel $5.17 2 ships same day
12 999-0126 Washer 1/2 split lock $1.28 2 ships same day
13 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 4 ships same day
14 175-1244 Motor lifting arm $82.50 2 usually ships 5-16 days
15 175-2743 Sleeved bushing $3.85 2 ships same day
16 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 4 ships same day
17 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
18 999-1156 Washer M12-.7 nylon $3.96 8 ships same day
19 175-1245 Bushing $5.39 4 usually ships 5-16 days
20 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
21 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
22 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 4 ships same day
23 175-0406 Washer.77 flate stainless steel $3.96 1 usually ships 5-16 days
24 275-7527 20 inch (500mm) pad driver assembly $221.21 1 (includes 25) (between SN 10219585 aand SN 10358739) ships same day
25a 275-6264 Pad centering device $45.21 1 (between SN 10219585 and SN 10358739) ships same day
25b 991-2206 Center-Lok 3 pad holder $35.50 1 (NON-OEM) ships same day
26 255-2050 20 inch gorilla spray buff/polish/burnish pad (pkg of 5) $39.25 usually ships 6-38 days
27 275-7527 20 inch (500mm) pad driver assembly $221.21 1 (includes 28-29) (before SN 10219585) ships same day
28 175-0182 Universal center lock $32.23 1 (includes 29) (before SN 10219585) ships same day
29a 991-2205 Deep lock ring and pad grip ring $21.53 1 (before SN 10219585) ships same day
29b 991-2202 Big mouth pad holder set (blue) $17.75 1 (NON-OEM) ships same day
30 175-5850 Pad driver retainer $12.54 1 (before SN 10219585) ships same day
31 999-1407 Washer 5/16 belleville $3.04 1 ships same day
32 175-1116 Screw .31-24 x 1 1/4mm hex head $4.73 1 usually ships 5-16 days
33 175-1250 Skirt strip $17.60 1 ships same day
34 175-9010 Dust control skirt $38.70 1 ships same day
35 175-1251 Clamp and screw kit $33.11 1 ships same day
36 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 6 ships same day
37 175-1252 Dust shield ring $564.63 1 usually ships 5-16 days
38 175-1253 Motor base seal $19.47 1 usually ships 5-16 days
39 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 1 ships same day
40 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
41 275-7527 20 inch (500mm) pad driver assembly $221.21 1 (includes 42-43) ships same day
42 175-0182 Universal center lock $32.23 1 ships same day
43 275-7012 Locking collar $10.12 1 (after SN 10679749) usually ships 5-16 days
