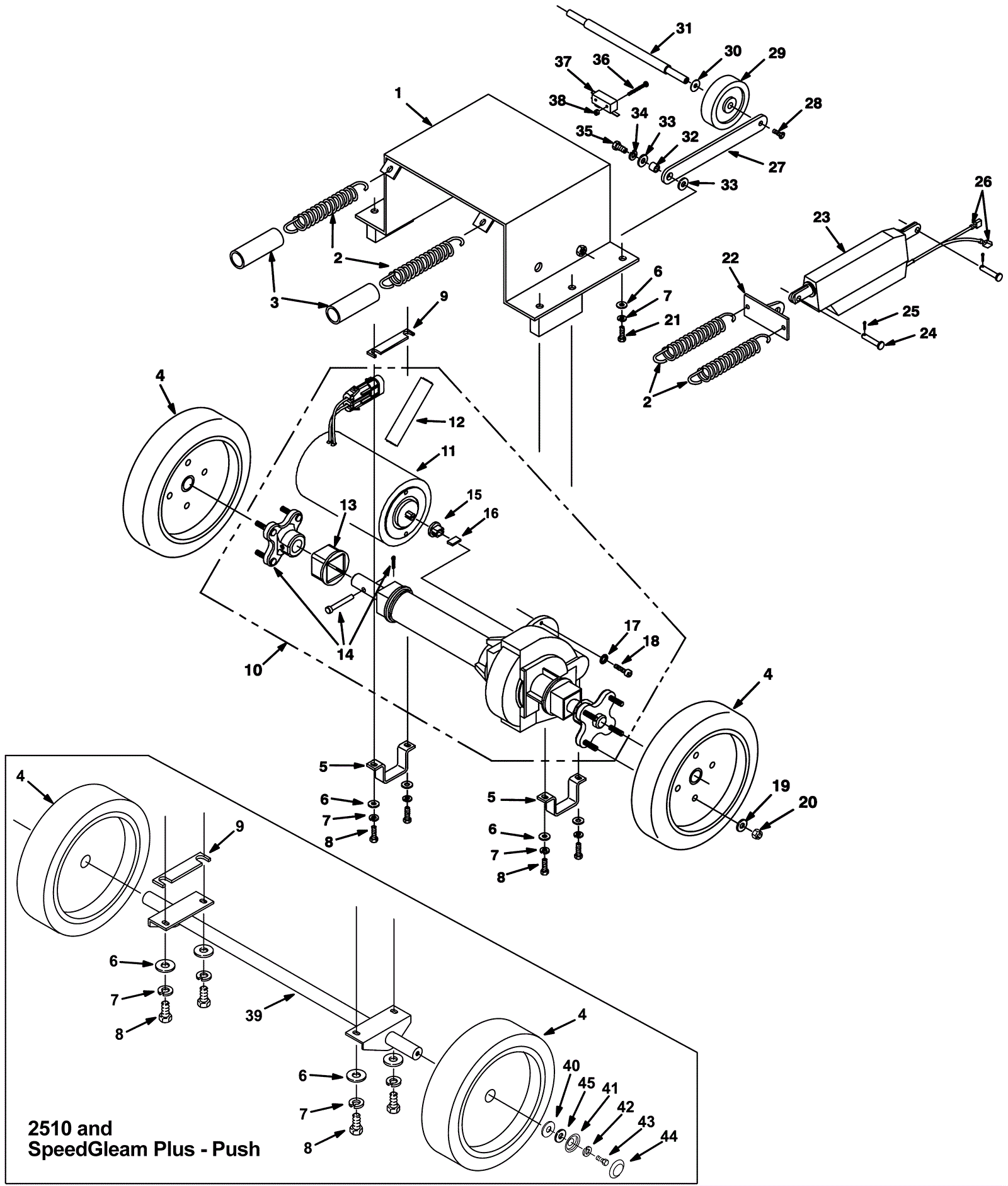

SPEEDGLEAMPLUS LEVER Drive Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-1166 Frame weldment $551.32 1 usually ships 5-16 days
2 175-0943 Extension spring $10.67 4 usually ships 5-16 days
3 175-1172 Sleeve (OBSOLETE) $10.89 2 usually ships 5-16 days
4a 175-3017 Neoprene solid wheel $258.94 2 (2550 and SpeedGleam Plus - drive) usually ships 5-16 days
4b 175-1072 8 inch wheel $139.92 2 (2510 and SpeedGleam Plus - push) ships same day
4c 175-1118 Bearing (OBSOLETE) $15.40 4 (2510 and SpeedGleam Plus - push) usually ships 5-16 days
5 175-3020 Transaxle mounting bracket $21.52 2 (2550 and SpeedGleam Plus - drive) ships same day
6 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
7 999-1081 Washer M10 split lock stainless steel $0.99 6 ships same day
8a 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.99 4 (2550 and SpeedGleam Plus - drive) ships same day
8b 999-9081 Screw M10-1.5 x 65mm hex head stainless steel $2.99 4 (2510 and SpeedGleam Plus - push) ships same day
9 175-1170 Spacer $21.78 1 usually ships 1-5 days
10 175-4374 36V transaxle assembly $2,265.45 1 (includes 11-17a, 18) (drive) usually ships 5-16 days
11 275-0635 Transaxle motor $653.07 1 (includes 12) (drive) usually ships 5-16 days
12 175-7898 Carbon brush (pkg of 4) $65.45 2 (2550 and SpeedGleam Plus - drive) ships same day
13 175-3660 Transaxle sleeve $10.12 2 (2550 and SpeedGleam Plus - drive) usually ships 5-16 days
14a 275-5229 Transaxle wheel hub with retainer $134.86 2 (2550 and SpeedGleam Plus - drive) usually ships 5-16 days
14b 997-2500 Cotter pin $0.99 1 ships same day
14c 202-0805 Clevis pin $5.50 1 ships same day
15 175-3655 Transaxle coupling $9.79 1 (2550 and SpeedGleam Plus - drive) ships same day
16 175-3656 Transaxle key $10.01 1 (2550 and SpeedGleam Plus - drive) usually ships 5-16 days
17 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 (2550 and SpeedGleam Plus - drive) ships same day
18a 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 2 (before SN 10206962) (2550 and SpeedGleam Plus - drive) ships same day
18b 999-0320 Screw 1/4-20 x 3/4 socket head alloy plain finish $0.99 2 (before SN 10206962) ships same day
19 999-0016 Washer 1/4 flat plain finish $0.99 8 (2550 and SpeedGleam Plus - drive) ships same day
20 999-1201 Nut 1/4-28 nylon insert lock hex stainless steel $0.99 8 (2550 and SpeedGleam Plus - drive) ships same day
21 999-1170 Bolt M10-1.5 x 20mm hex head stainless steel $3.06 2 ships same day
22 175-1174 Bracket $77.77 1 usually ships 5-16 days
23 175-3010 Actuator $471.24 1 usually ships 5-16 days
24 175-3012 Clevis pin $7.48 2 usually ships 5-16 days
25 175-5080 Cotter pin $3.30 2 ships same day
26 175-0142 1/4 inch male terminal $3.96 2 usually ships 5-16 days
27 175-1175 Pivot arm $54.67 2 usually ships 5-16 days
28 999-1422 Screw M6-1 x 16mm flat head zinc plated $2.26 2 ships same day
29a 175-0292 4 inch rear wheel (gray) $37.95 2 (OEM) ships same day
29b 991-1913 4 inch wheel (gray) $18.50 2 (NON-OEM) usually ships 5-16 days
30 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
31 175-1177 Rear axle $71.17 1 usually ships 5-16 days
32 175-2731 Bushing $7.92 2 usually ships 5-16 days
33 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
34 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
35 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 2 ships same day
36 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
37 175-6532 Snap switch $14.41 1 usually ships 5-16 days
38 999-0144 Nut 6-32 k-lock zinc plated $0.99 2 ships same day
39 175-1262 Axle weldment $203.39 1 (2510 and SpeedGleam Plus - push) usually ships 1-5 days
40 999-0187 Washer 1/2 flat plain finish $0.99 2 (2510 and SpeedGleam Plus - push) ships same day
41 175-1095 Washer $3.85 2 (2510 and SpeedGleam Plus - push) usually ships 5-16 days
42 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 (2510 and SpeedGleam Plus - push) ships same day
43 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 (2510 and SpeedGleam Plus - push) ships same day
44 175-1096 Wheel cap $3.30 2 (2510 and SpeedGleam Plus - push) usually ships 5-16 days
45 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 (2510 and SpeedGleam Plus - push) ships same day
N/S 175-2113 Cotter pin $2.42 2 (2550) ships same day
N/S 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 (2550) ships same day
N/S 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 (2550) ships same day
