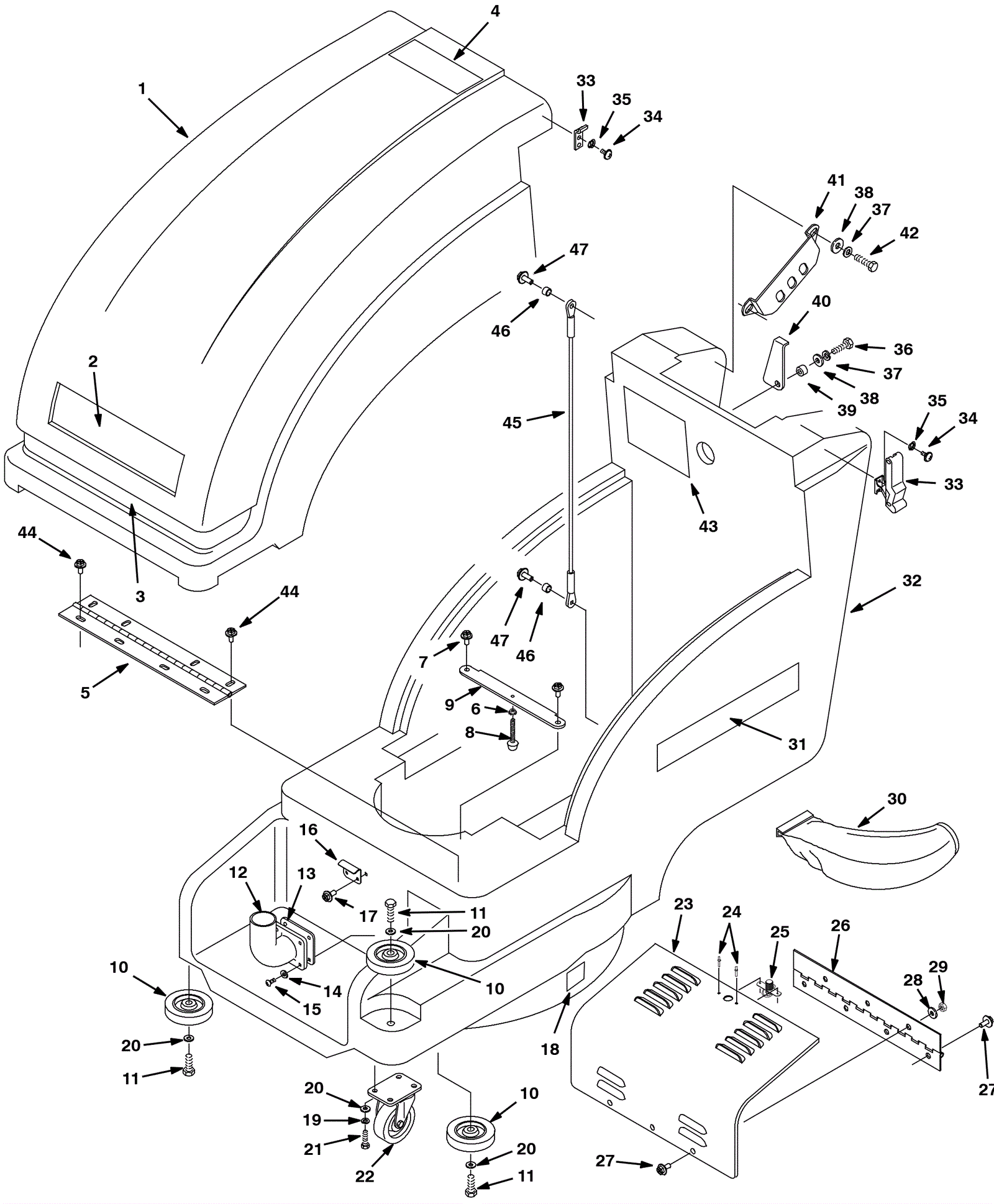

2510 Main Housing Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-0624 Battery cover assembly with decal $586.19 1 (includes 2-4) usually ships 1-5 days
2 175-4891 Tennant decal $13.97 1 usually ships 1-5 days
3 175-1223 Decal $29.15 1 usually ships 5-16 days
4 175-2868 Warning decal $11.99 1 ships same day
5 175-1224 Hinge $31.13 1 usually ships 5-16 days
6 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 1 ships same day
7 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
8 175-1225 Motor stop $12.43 1 usually ships 5-16 days
9 175-1226 Motor stop bracket $34.87 1 usually ships 1-5 days
10 175-0117 Guide wheel with bushing $9.68 4 ships same day
11 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 4 ships same day
12 175-1227 Deflector elbow $129.25 1 usually ships 1-5 days
13 275-0626 Elbow gasket $5.61 1 usually ships 1-5 days
14 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
15 175-1228 Screw 10-16 x 1 pan head phillips $1.10 4 usually ships 1-5 days
16 175-1229 Latch plate $23.87 1 usually ships 5-16 days
17 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
18 175-1238 Moving parts decal $5.28 2 usually ships 5-16 days
19 999-0553 Washer 5/16 medium split lock stainless steel $0.99 4 ships same day
20 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
21 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
22 175-1780 3 inch swivel caster wheel $56.87 1 ships same day
23 275-0627 Dust bag cover (teal) $260.15 1 ships same day
24 997-1004 Pop rivet $1.87 2 usually ships 11-24 days
25 175-1231 Spring latch $11.99 1 ships same day
26 175-1232 Hinge $30.69 1 usually ships 5-16 days
27 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 7 ships same day
28 999-0016 Washer 1/4 flat plain finish $0.99 7 ships same day
29 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 3 ships same day
30a 175-1233 Cloth bag $48.73 1 ships same day
30b 275-0628 Paper filter bag (pkg of 10) $18.04 1 usually ships 5-16 days
31a 275-0629 2550 decal $16.28 2 usually ships 1-5 days
31b 275-0630 2510 decal $15.18 2 usually ships 1-5 days
32 275-0631 Chassis (teal) $1,359.49 1 usually ships 1-5 days
33 375-7802 Latch $40.15 2 usually ships 5-16 days
34 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 8 ships same day
35 999-1083 Washer #8 internal star lock stainless steel $0.99 8 ships same day
36 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 1 ships same day
37 999-0553 Washer 5/16 medium split lock stainless steel $0.99 5 ships same day
38 999-0024 Washer 5/16 flat stainless steel $1.34 5 ships same day
39 175-2673 Bushing $3.08 1 usually ships 5-16 days
40 175-1236 Support $24.53 1 usually ships 5-16 days
41 175-2728 Locking plate $48.62 2 usually ships 1-5 days
42 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
43 175-1237 Battery hook up and cautions decal $15.29 1 usually ships 1-5 days
44 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 8 ships same day
45 275-5227 Galvanized cable $33.66 1 usually ships 5-16 days
46 275-5228 Sleeved bushing $8.25 2 usually ships 5-16 days
47 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 2 ships same day
