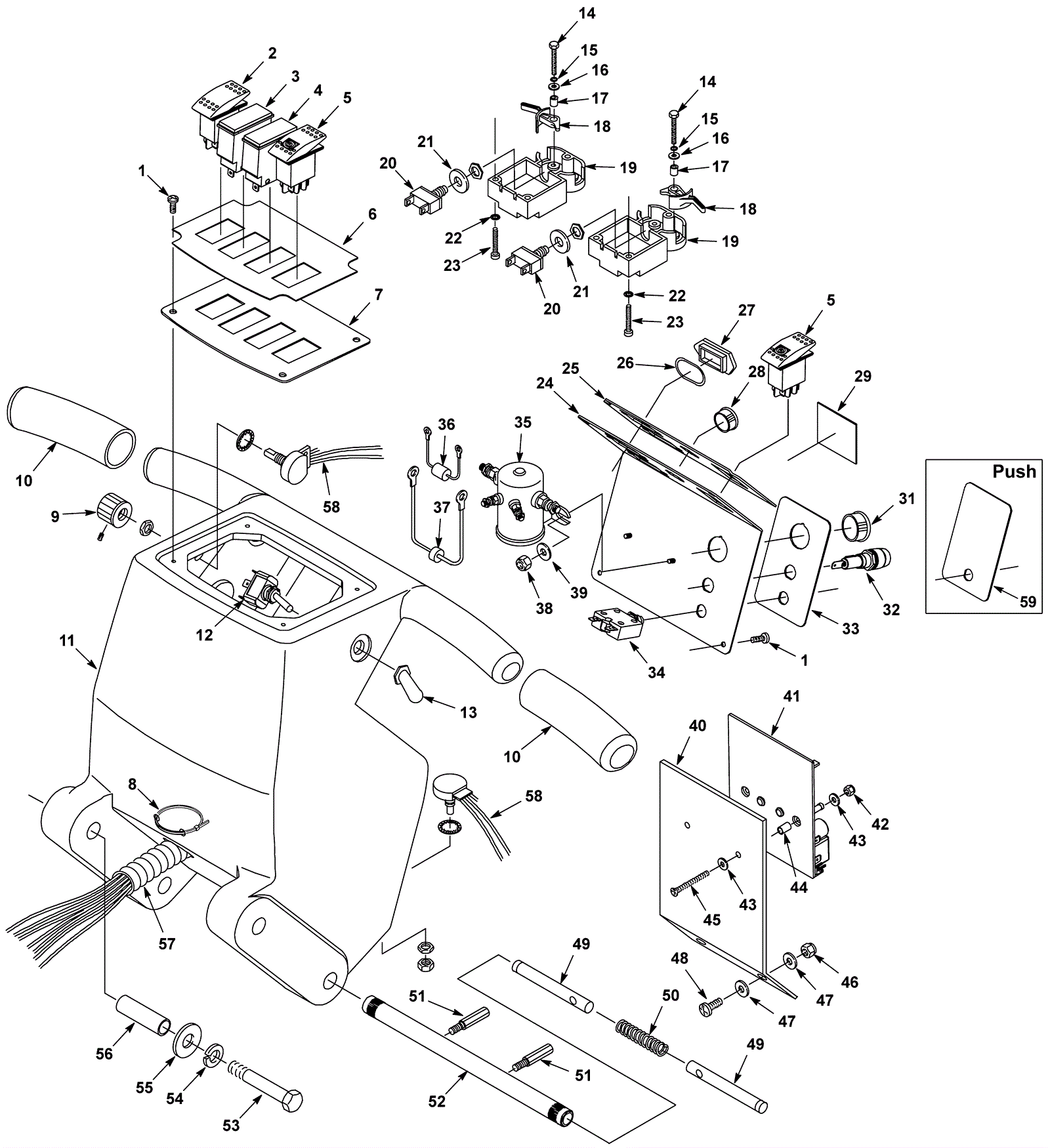

SPEEDGLEAMPLUS LEVER Control Console Assembly (Drive Model)

#PartDescriptionPriceReqNotesAvailability
1 175-3223 Screw 12-16 x 1/2 pan head plastic $3.96 8 usually ships 1-5 days
2 175-3097 Momentary rocker switch $44.88 1 (brush pressure) usually ships 5-16 days
3 175-1159 Pad pressure gauge $55.77 1 ships same day
4 175-1161 36V battery voltage meter $69.41 1 usually ships 5-16 days
5 175-3098 Lighted on/off rocker switch $32.89 2 (qty 1 for push model) (qty 2 for drive model) ships same day
6 275-0740 Panel decal (OBSOLETE) $30.91 1 usually ships 5-16 days
7 275-0741 Upper panel $23.32 1 usually ships 5-16 days
8 175-0921 Wire tie $3.96 1 usually ships 5-16 days
9 175-1163 Speed control knob $38.28 1 (drive) ships same day
10 275-4706 Handle grip $6.27 2 ships same day
11a 275-6383 Control housing $780.67 1 (drive) usually ships 5-16 days
11b 275-0750 Control housing $723.03 1 (push) usually ships 5-16 days
12 175-3103 Toggle switch $60.72 1 (drive) ships same day
13 175-3104 Switch boot $19.91 1 (drive) ships same day
14 999-0805 Bolt M3-.5 x 16mm hex head $0.99 2 ships same day
15 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
16 999-1115 Washer M4 flat zinc plated $0.99 2 ships same day
17 175-6384 Trigger spacer $3.63 2 usually ships 5-16 days
18 175-6383 Trigger arm (OBSOLETE) $7.37 2 usually ships 5-16 days
19a 275-4697 Right hand console trigger assembly $56.65 2 ships same day
19b 275-4704 Left hand console trigger assembly $56.65 1 (includes 14-19a, 20 and 21) ships same day
19c 275-4697 Right hand console trigger assembly $56.65 1 (includes 14-19a, 20 and 21) ships same day
20 175-6400 Push button switch kit $31.13 2 ships same day
21 175-6386 Washer 1/2 flat spring disc zinc plated $4.95 2 usually ships 5-16 days
22 999-1083 Washer #8 internal star lock stainless steel $0.99 6 ships same day
23 999-1673 Screw M4-.7 x 25mm pan head phillips stainless steel $0.99 6 ships same day
24 275-0743 Lower panel $38.50 1 usually ships 1-5 days
25a 275-0744 Panel decal $22.99 1 (drive) usually ships 1-5 days
25b 275-0751 Meter panel decal $11.66 1 (push) usually ships 1-5 days
26 175-3144 O-ring $3.41 2 usually ships 5-16 days
27 175-3646 Hour meter plug $9.79 2 ships same day
28 175-3127 Plug $3.96 1 usually ships 5-16 days
29 175-2649 Do not spray decal $4.29 1 usually ships 5-16 days
31 175-3126 Plug $3.96 1 (drive) ships same day
32a 175-5010 Fuse holder $10.12 1 (drive) usually ships 5-16 days
32b 175-5447 2amp fast blow fuse $8.25 1 (drive) usually ships 5-16 days
33 275-0745 Circuit breaker decal $10.45 1 (drive) usually ships 1-5 days
34a 175-1186 15amp circuit breaker $17.93 1 (main power) ships same day
34b 991-8539 15amp circuit breaker $7.74 1 (NON-OEM) ships same day
35 175-1183 36V solenoid $117.37 1 (drive) usually ships 5-16 days
36 175-2757 Diode with ring terminals (small) $11.11 1 (drive) usually ships 5-16 days
37 175-1182 Diode with ring terminals (large) $14.41 1 (drive) usually ships 5-16 days
38 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 ships same day
39 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
40 275-0746 Circuit board bracket $15.07 1 (drive) usually ships 1-5 days
41 275-5230 36V propel controller $415.03 1 (drive) usually ships 5-16 days
42 275-7848 Nut M4 x .7 hex jam stainless steel $1.43 2 (drive) usually ships 1-5 days
43 999-1652 Washer M4.3 flat $1.93 4 (drive) ships same day
44 175-4898 Spacer $3.08 2 (drive) usually ships 1-5 days
45 999-1673 Screw M4-.7 x 25mm pan head phillips stainless steel $0.99 2 (drive) ships same day
46 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 2 (drive) ships same day
47 999-0016 Washer 1/4 flat plain finish $0.99 4 (drive) ships same day
48 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 2 (drive) ships same day
49 175-3109 Handle locking pin $20.79 2 usually ships 1-5 days
50 175-2712 Spring $4.84 1 usually ships 1-5 days
51 175-2710 Handle adjustment pin $16.61 2 usually ships 1-5 days
52 175-3108 Handle adjustment tube $67.10 1 usually ships 1-5 days
53 999-0619 Screw 10-24 x 3/4 truss head slotted stainless steel $0.99 2 ships same day
54 999-0126 Washer 1/2 split lock $1.28 2 ships same day
55 999-0559 Washer 1/2 x 1/4 flat stainless steel $0.99 2 ships same day
56 175-2714 Bushing $7.59 2 usually ships 1-5 days
57a 275-0747 Main wiring harness $424.38 1 (drive) usually ships 1-5 days
57b 275-0753 Main wiring harness $265.21 1 (push) usually ships 1-5 days
58 275-0748 Potentiometer harness $296.12 2 (drive) usually ships 1-5 days
59 275-0752 Circuit breaker decal $13.97 1 (push) usually ships 1-5 days
