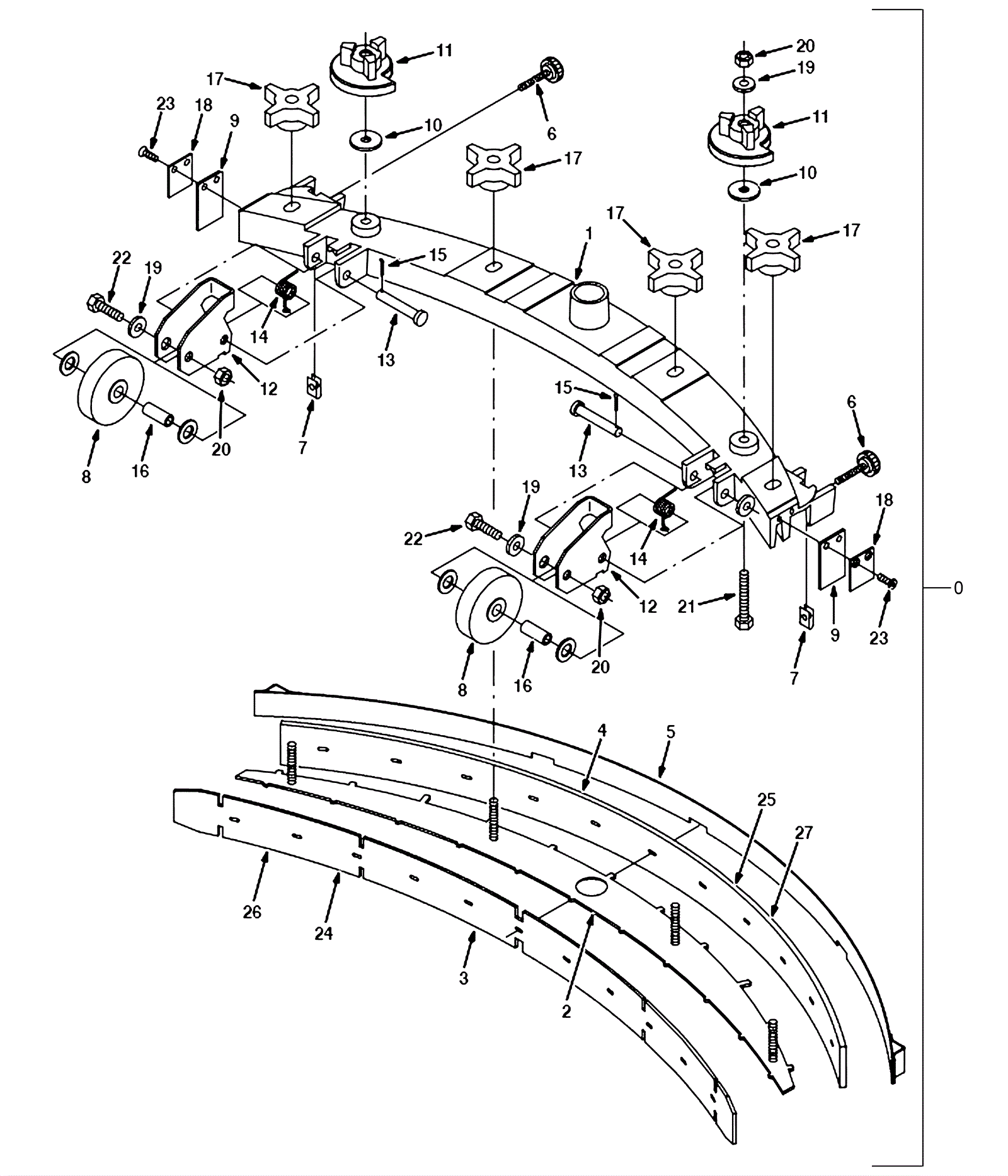

5700 SERIES Squeegee Assembly - Tight Aisle

#PartDescriptionPriceReqNotesAvailability
0 175-2565 Squeegee assembly tight aisle 22 inch (550mm) $1,550.23 1 (includes 1-23) usually ships 10-16 days
1 175-2566 FRAME, SQGE, TIGHT-AISLE, 77CM (Tennant Industrial) $903.85 1 usually ships 1-5 days
2 175-2567 Squeegee blade retainer plate tight aisle 22 inch $337.37 1 usually ships 10-16 days
3 175-2568 Squeegee blade 22 inch gum rubber front $28.49 1 usually ships 1-5 days
4 175-2569 Squeegee blade 22 inch linatex rear $45.21 1 usually ships 10-16 days
5 175-2570 RETAINER, BLADE, SQGE, TIGHT-AISLE (Tennant Industrial) $40.70 1 usually ships 1-5 days
6 175-2180 Knob $6.49 2 ships same day
7 175-2291 Nut 1/4-20 speed clip $4.36 2 ships same day
8a 175-2181 Wheel $11.66 4 ships same day
8b 991-3030 Wheel $6.17 4 (NON-OEM) ships same day
8c 991-3060 Bumper wheel $6.17 4 (NON-OEM) ships same day
9 175-2571 BLADE, SQGE, END, TIGHT-AISLE (Tennant Industrial) $18.67 2 usually ships 1-5 days
10 175-2309 Washer $5.28 2 ships same day
11 175-2183 Adjustment cam $9.02 2 ships same day
12 175-2184 Wheel mounting bracket $27.83 2 ships same day
13 175-2185 Clevis pin $4.36 2 ships same day
14 175-2273 Torsion spring $5.28 2 ships same day
15 175-6176 Cotter pin $3.30 2 ships same day
16 175-2207 Sleeve $5.94 2 ships same day
17 175-2208 Plastic star knob $5.28 4 ships same day
18 175-2572 Squeegee end blade retainer tight aisle $37.29 2 usually ships 1-5 days
19 999-9097 Washer M8 flat stainless steel $0.99 6 ships same day
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.34 4 ships same day
21 999-0909 Bolt M8-1.25 x 70mm hex head stainless steel $3.83 2 ships same day
22 999-1297 Screw M8 x 50mm hex head stainless steel $2.86 2 ships same day
23 175-2897 Screw M5 x 16mm $5.50 4 usually ships 1-5 days
24 175-2574 BLADE, SQGE, FRONT, TILE, TIGHT-AISLE $37.95 1 usually ships 10-16 days
25 175-2575 BLADE, SQGE, REAR, TILE, TIGHT-AISLE $36.85 1 usually ships 10-16 days
26 175-2577 BLADE, SQGE, FRONT, PYU, TIGHT-AISLE $72.27 1 usually ships 10-16 days
27 175-2578 BLADE, SQGE, REAR, PYU, TIGHT-AISLE $128.48 1 usually ships 10-16 days
KIT 175-2573 SQUEEGEE KIT, TILE, TIGHT-AISLE $81.40 1 (includes 24 and 25) usually ships 10-16 days
KIT 175-2576 Squeegee blade kit oil resistant tight aisle 22 inch $204.60 1 (includes 26 and 27) usually ships 10-16 days
