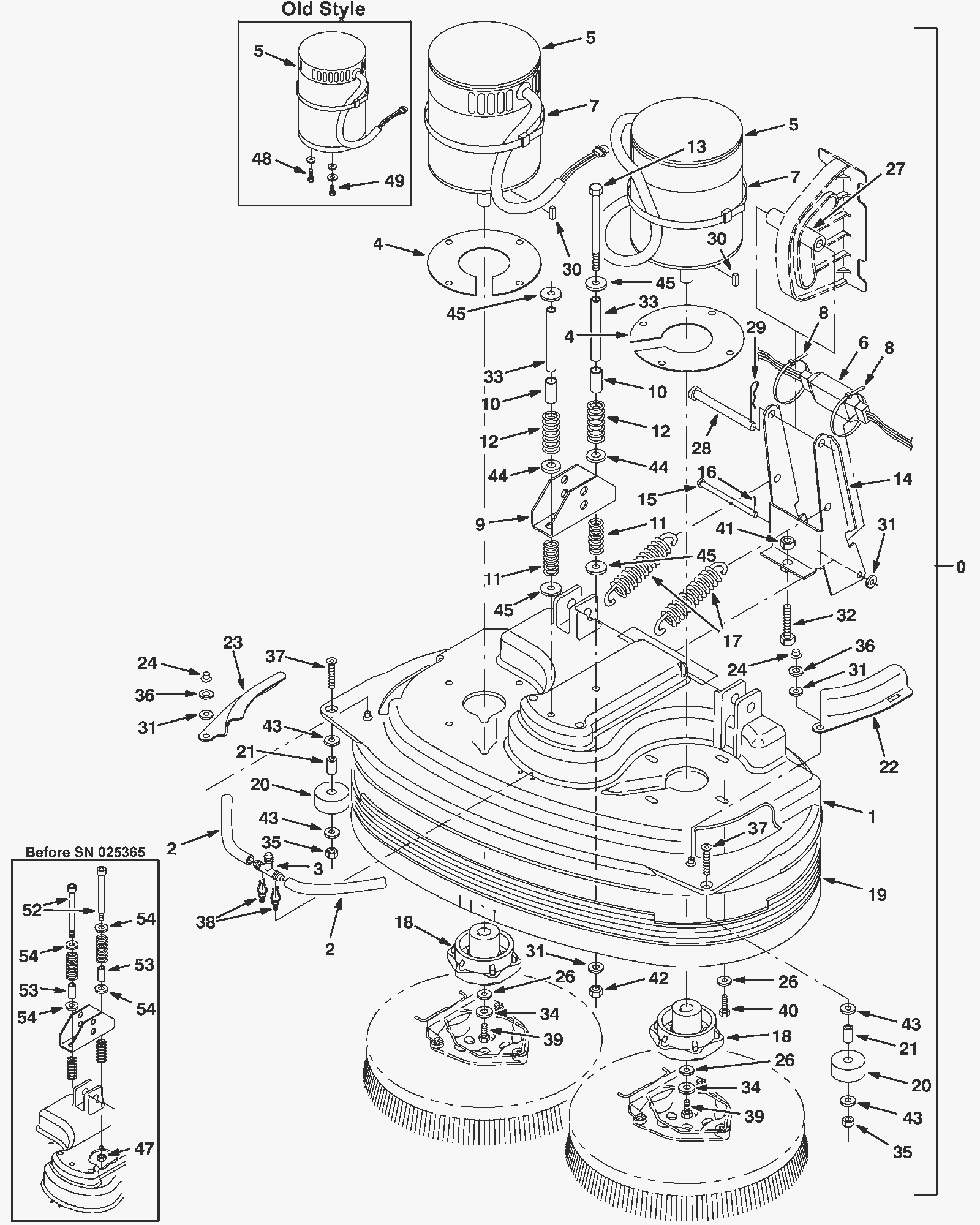

Scrub Head Assembly - Disk

#PartDescription ReqNotesAvailability
0a 175-2433 28 inch scrub head kit 1 (includes 1-46)
0b 175-2436 32 inch scrub head kit 1 (includes 1-46)
0c 175-2449 36 inch scrub head kit 1 (includes 1-46)
0d 175-2461 32 inch scrub head kit 1 (heavy duty) (includes 1-46)
1a 175-2434 28 inch (700mm) scrub head cover 1
1b 275-9065 32 inch scrub head cover 1
1c 175-2450 36 inch scrub head cover 1
1d 175-2434 28 inch (700mm) scrub head cover 1
2a 175-2222 PVC hose 2 (OEM)
2b 991-1409 Clear vinyl tubing 9/16 OD x 3/8 ID inch (sold by the inch) 9 in x 2 (NON-OEM)
3 175-2223 Plastic tee fitting 1
4 175-2438 End bell gasket 2
5a 175-2439 36V .50HP brush motor assembly 2 (standard)
5b 175-2451 36V 1.0HP brush motor assembly 2 (heavy duty option)
5c 991-8524 36V 1.0HP brush motor assembly with gear box 2 (NON-OEM)
6 175-2440 Disk head wiring harness 1
7 175-2226 Nylon wire tie 4
8 175-2202 Nylon wire tie 2
9 275-0646 Mounting bracket 1
10 675-9888 Sleeved bushing 2
11 175-2443 2 1/2 inch compression spring 2
12 175-2199 Compression spring 2
13 275-1216 Screw 3/8-16 x 5 1/2 hex head (Tennant Industrial) 2
14 175-2229 Pivot bracket 1
15 175-2230 Clevis pin 1
16 175-2040 Cotter pin 1
17 175-2234 Extension spring 2
18 175-9525 Brush drive hub 2
19a 175-2435 28 inch (700mm) skirt assembly 1
19b 175-2446 32 inch skirt assembly 1
19c 175-2457 36 inch skirt assembly 1
20a 175-2245 Wheel 2
20b 991-3044 2 inch wheel 2 MPVR01707
21 175-2182 Sleeve 2
22 175-2241 Left hand scrub head door 1
23 175-2242 Right hand scrub head door 1
24 175-2302 Retainer nut 2
26 999-1407 Washer 5/16 belleville 10
27 175-2231 Roller head linkage 1
28 175-2232 Clevis pin 1
29 175-2106 Cotter hair pin 1
30 175-2236 Square keyway 2
31 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 3
32 999-0775 Screw M10-1.5 x 40mm hex head stainless steel 1
33 275-1217 TUBE, 0.40ID 0.50OD 04.3L, SS (Tennant Industrial) 2
34 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 2
35 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
36 175-2293 Washer 2
37 999-0771 Screw M8-1.25 x 40mm flat head socket 2
38 175-2095 Keeper clip 2
39 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
40 999-1087 Bolt M6-1 x 25mm hex head stainless steel 8
41 999-0767 Nut M10-1.5 hex coarse thread 1
42 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2
43 999-0123 Washer 1/4 SAE flat zinc plated 4
44 999-0114 Washer 1/2 SAE flat 2
45 175-2298 Washer .38 x .06 stainless steel 4
47 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2 (before SN 025365)
48 175-2860 Screw 1/4-20 x 1 hex stainless steel 8 (old style)
49 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2 (old style)
52 275-1212 Bolt kit (Tennant Industrial) 2 (before SN 025365)
53 175-2442 Sleeve 2 (before SN 025365)
54 999-0114 Washer 1/2 SAE flat 4 (before SN 025365)
N/S 275-0647 Front cover 1
