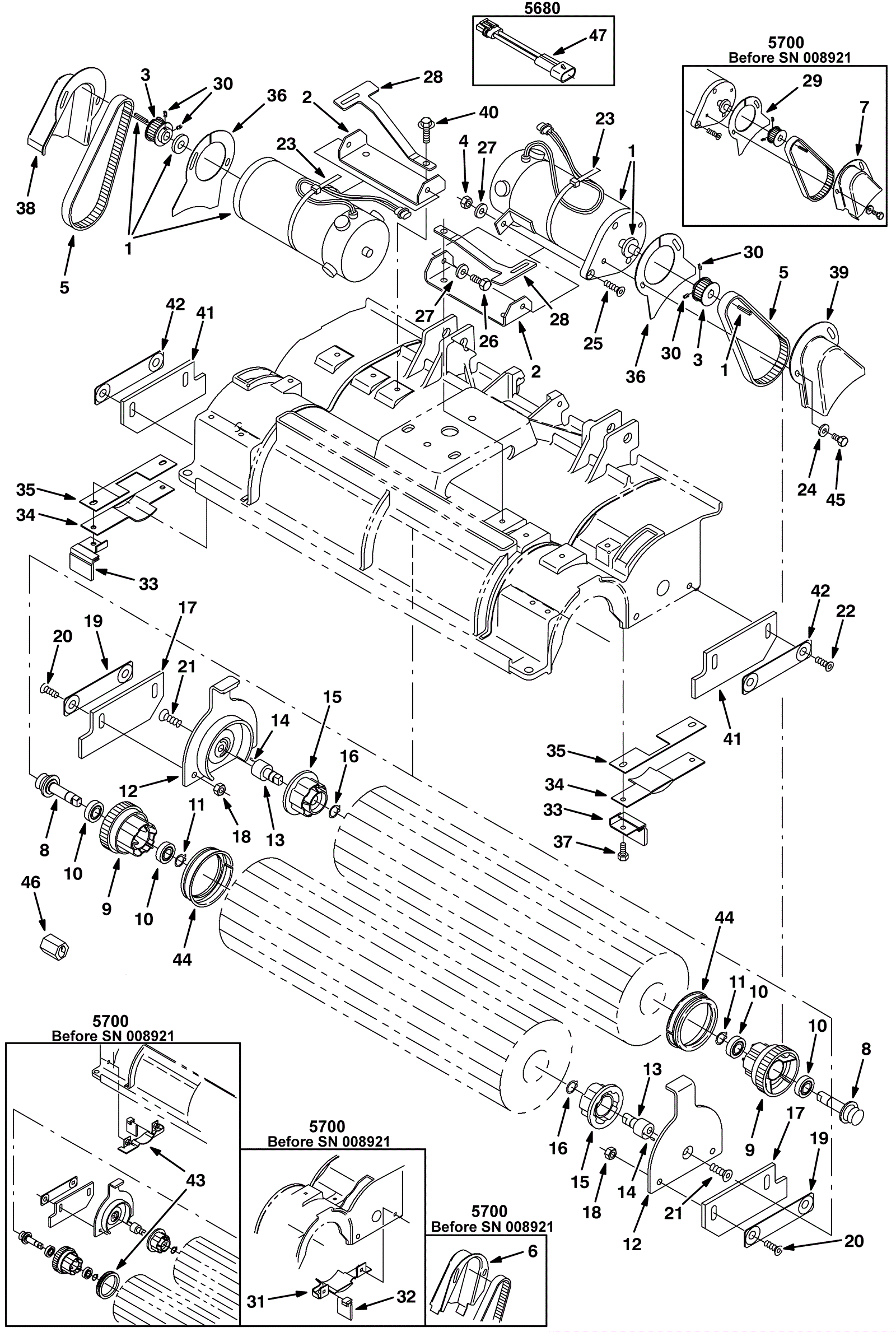

Scrub Head Drive Assembly - Cylindrical

#PartDescription ReqNotesAvailability
1a 175-2056 Brush motor assembly 2
1b 175-2056 Brush motor assembly 2 (SN 10355043 - )
2a 175-2463 Mounting motor bracket 2 (5700) (before SN 008921)
2b 175-2464 Mounting motor bracket 2 (5680) (5700 after SN 008920)
3 775-0474 Drive sprocket 2
4 999-0496 Nut M8-1.25 nylon insert lock stainless steel 4
5 175-2034 Cogged drive belt 2
6 175-2466 Right belt guard 1 (5700) (before SN 008921)
7 175-2467 Left belt guard 1 (5700) (before SN 008921)
8a 175-2468 Brush drive plug assembly 2 (includes 8b-11)
8b 175-2469 Shaft drive plug 1
9a 175-2470 Brush drive plug 2
9b 175-2470 Brush drive plug 1 (after SN 9999999)
10 175-2471 Ball bearing 4
11 175-2472 Retaining ring 2
12a 175-2473 Brush door assembly 2 (includes 12b-21)
12b 175-2474 Brush door 1
12c 175-2474 Brush door 1 (after SN 9999999)
13a 175-2475 Idler plug assembly 1 (includes 13b-16)
13b 175-2476 Idler plug shaft 1
14 175-2477 Roll pin 2
15a 175-2478 Brush idler plug 2
15b 175-2478 Brush idler plug 1 (after SN 9999999)
16 175-2472 Retaining ring 2
17 675-9892 Scrub head skirt 2
18 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
19 175-2481 Support bar 1
20 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel 2
21 175-2863 Screw M10-1.5 x 20mm flat head stainless steel nylok 1
22 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel 4
23 175-2226 Nylon wire tie 2
24 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 4 (before SN 10000000)
25 999-1622 Screw M8-1.25 x 25mm flat head phillips stainless steel 2
26 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel 2
27 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 6
28 175-2482 Door spring 2
29 175-2483 Belt shield 2 (5700) (before SN 008921)
30 999-0431 Screw 8-32 x 1/4 set socket cup point alloy plain finish 4
31 175-2484 Shield bracket 2 (5700) (before SN 008921)
32 175-2485 Deflector skirt 2 (5700) (before SN 008921)
33 175-2486 Water deflector 2 (5680) (5700 after SN 008920)
34 175-2487 Shield bracket 2 (5680) (5700 after SN 008920)
35 175-2488 Shield gasket 2 (5680) (5700 after SN 008920)
36 175-2489 Belt shield 2 (5680) (5700 after SN 008920)
37 999-0784 Screw M8-1.25 x 16mm hex head stainless steel 4 (5680) (5700 after SN 008920)
38 175-2490 Right belt guard 1 (5680) (5700 after SN 008920)
39 175-2491 Left belt guard 1 (5680) (5700 after SN 008920)
40 175-2888 Bolt M8-1 1/4 x 25mm hex head 4
41 675-9892 Scrub head skirt 2
42 175-2481 Support bar 2
43 175-2494 Seal replacement kit 2 (5700) (before SN 008921)
44 175-2495 Seal ring 2
45a 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 4 (before SN 10000000)
45b 999-1383 Screw M6-1 x 16mm hex head stainless steel 4 (after SN 9999999)
46 275-1209 Shaft removal tool 1
47 275-1210 Brush motor harness 1 (5680)
