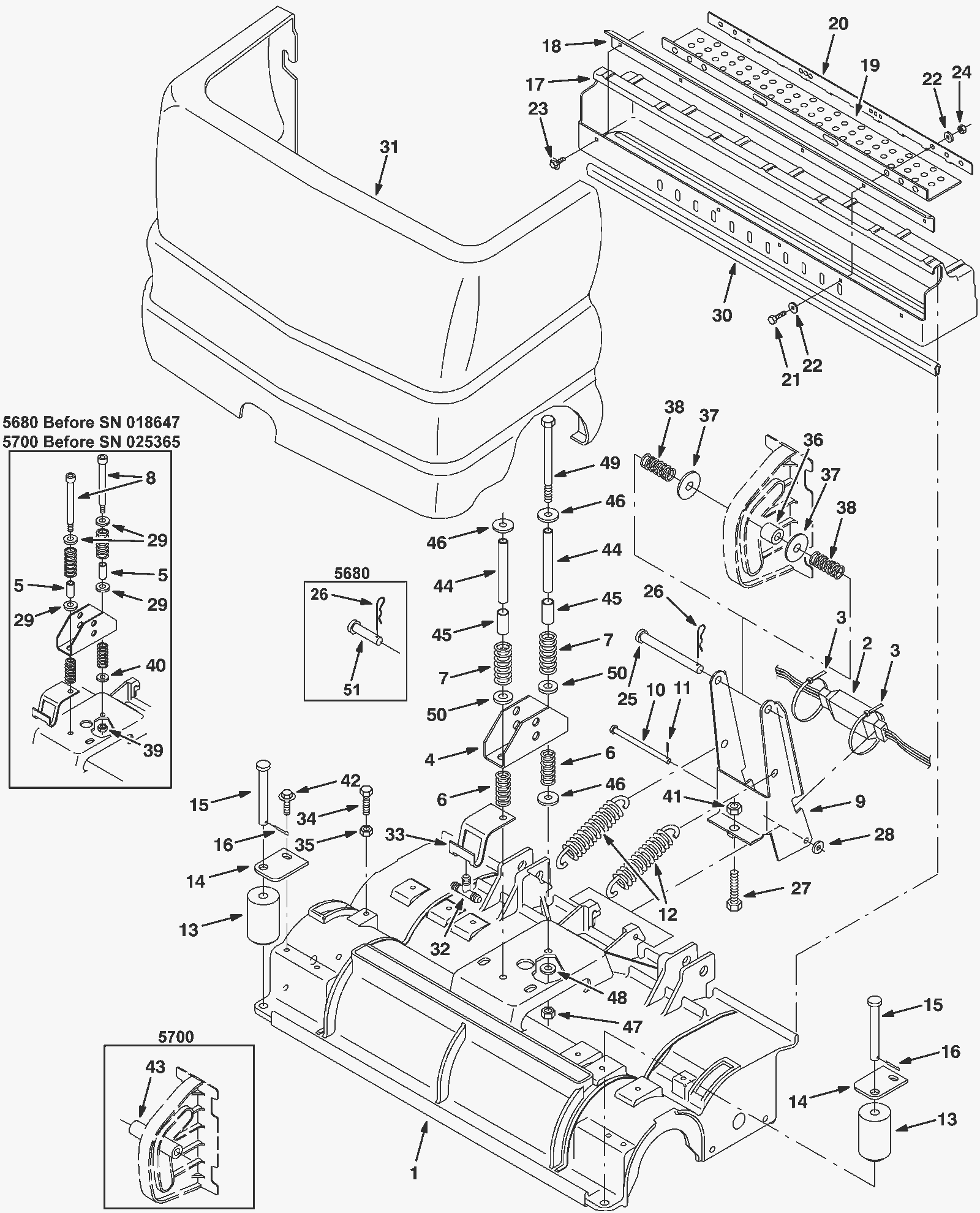

Scrub Head Frame Assembly - Cylindrical

#PartDescription ReqNotesAvailability
1a 175-2508 28 inch (700mm) cylindrical replacement housing 1 (5700 before SN 008919)
1b 275-1211 28 inch (700mm) cylindrical housing 1 (5680) (5700 after SN 008320)
1c 175-2502 32 inch (800mm) replacement cylindrical housing 1 (5700 before SN 008317)
1d 275-1252 32 inch (800mm) cylindrical housing 1 (5680) (5700 after SN 008318)
1e 175-2496 36 inch (900mm) Cylindrical replacement housing 1 (5700 before SN 009666)
1f 275-1251 36 inch (900mm) cylindrical housing 1 (5680) (5700 after SN 009665)
2 175-2510 Cylindrical head wiring harness 1 (5700)
3 175-2202 Nylon wire tie 2 (5700)
4 275-0646 Mounting bracket 1
5 175-2442 Sleeve 2 (5680 before SN 018647) (5700 before SN 025365)
6 175-2443 2 1/2 inch compression spring 2
7 175-2199 Compression spring 2
8 275-1212 Bolt kit (Tennant Industrial) 2 (5680 before SN 018647) (5700 before SN 025365)
9 175-2229 Pivot bracket 1
10 175-2230 Clevis pin 1
11 175-2040 Cotter pin 2
12 175-2234 Extension spring 2
13 175-2512 Bumper roller 2
14 175-2513 Roller mounting bracket 2
15 175-2116 Clevis pin 2
16 175-2040 Cotter pin 2
17a 175-2514 28 inch debris tray kit 1 (includes 17b, 18a and 19-24)
17b 175-2515 28 inch debris tray 1
17c 175-2504 32 inch debris tray kit 1 (includes 17d, 18b and 19-24)
17d 175-2505 32 inch debris tray 1
17e 175-2498 36 inch debris tray kit 1 (includes 17f, 18c and 19-24)
17f 175-2499 36 inch debris tray 1
17g 175-2515 28 inch debris tray 1 (SN 10000000 - )
18a 175-2516 28 inch debris tray lip 1
18b 175-2506 32 inch debris tray lip 1
18c 175-2500 36 inch debris tray lip 1
19 175-2517 Skirt 1
20 175-2399 Debris tray skirt 1
21 999-1087 Bolt M6-1 x 25mm hex head stainless steel 4
22 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
23 175-3298 Bolt M6-1 x 12mm hex head 2
24 999-0469 Nut M6-1 nylon insert lock zinc plated 4
25 175-2232 Clevis pin 1
26a 175-2106 Cotter hair pin 1 (qty 2 for 5680)
26b 175-2382 Clevis pin 1 (5680) (model 700C, 700mm) (28 in)
27 999-0775 Screw M10-1.5 x 40mm hex head stainless steel 1
28 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1
29 999-0114 Washer 1/2 SAE flat 4 (5680 before SN 018647) (5700 before SN 025365)
30a 175-2519 Channel 1 (28 inch)
30b 175-2507 Channel 1 (32 inch)
30c 175-2501 Channel 1 (36 inch)
31a 275-1213 Front tray cover 1
31b 275-1213 Front tray cover 1 (5680/5700 Cyl)
32 175-2223 Plastic tee fitting 1
33 175-2521 Hose guide bracket 1
34 999-0786 Screw M8-1.25 x 35mm hex head stainless steel 2
35 999-0496 Nut M8-1.25 nylon insert lock stainless steel 2
36 275-1214 Roller 1
37 175-2188 Washer 2
38 275-1215 Compression spring 2
39 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated 2 (5680 before SN 018647) (5700 before SN 025365)
40 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 1 (5680 before SN 018647) (5700 before SN 025365)
41 999-0767 Nut M10-1.5 hex coarse thread 1
42 175-2888 Bolt M8-1 1/4 x 25mm hex head 2
43 175-2231 Roller head linkage 1 (5700)
44 275-1217 TUBE, 0.40ID 0.50OD 04.3L, SS (Tennant Industrial) 2 (5680 after SN 018648) (5700 after SN 025364)
45 675-9888 Sleeved bushing 2 (5680 after SN 018648) (5700 after SN 025364)
46 175-2298 Washer .38 x .06 stainless steel 3 (5680 after SN 018648) (5700 after SN 025364)
47 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 2 (5680 after SN 018648) (5700 after SN 025364)
48a 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 3 (5680 after SN 018646)
48b 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel
49 275-1216 Screw 3/8-16 x 5 1/2 hex head (Tennant Industrial) 2 (5680 after SN 018648) (5700 after SN 025364)
50 999-0114 Washer 1/2 SAE flat 2 (5680 after SN 018648) (5700 after SN 025364)
51 175-2382 Clevis pin 1 (5680)
