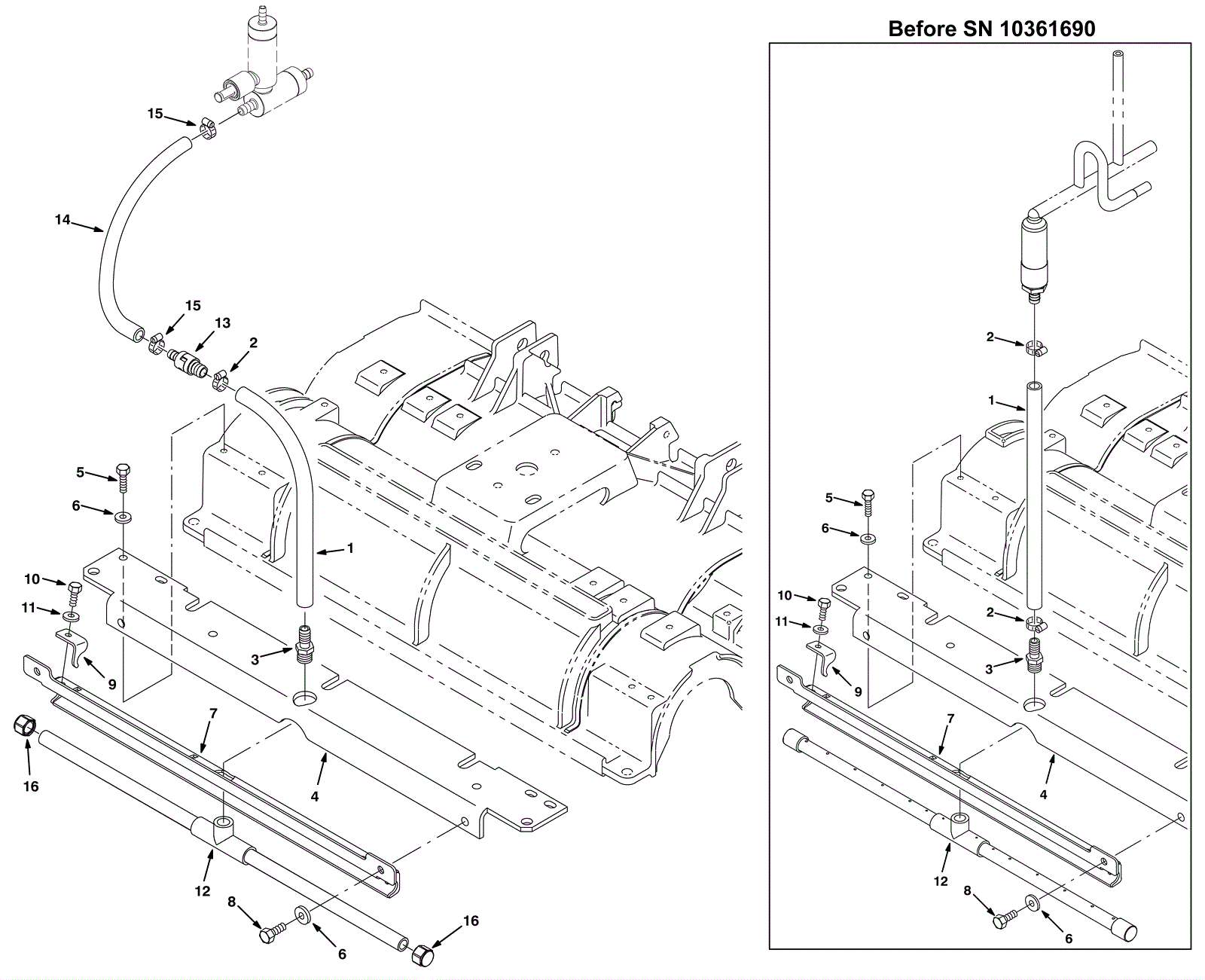

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
275-1192
|
Hose 1/2 x 3 foot (Tennant Industrial) |
1 |
(5680 before SN 10361690) (5700 before SN 10361713) |
|
1b |
175-5249
|
Hose 1/2 x 1 foot (Tennant Industrial) |
1 |
(5680 after SN 10361689) |
|
1c |
175-8711
|
Pvc board hose |
1 |
(5700 after SN 10361712) |
|
2 |
175-6081
|
Hose clamp |
2 |
(qty 1 after SN 10361689) |
|
3 |
175-5234
|
Plastic fitting |
1 |
|
|
4a |
275-9955
|
28 inch cylindrical head bracket |
1 |
|
|
4b |
275-9956
|
32 inch cylindrical head bracket |
1 |
(32 and 36 inch) |
|
5 |
175-2888
|
Bolt M8-1 1/4 x 25mm hex head |
4 |
|
|
6 |
999-9097
|
Washer M8 flat stainless steel |
6 |
|
|
7a |
175-5239
|
28 inch spray bar bracket weldment |
1 |
|
|
7b |
175-5235
|
32 and 36 inch spray bar bracket weldment |
1 |
(32 and 36 inch) |
|
8 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
2 |
|
|
9 |
175-5236
|
Spray bar bracket |
3 |
|
|
10 |
999-9116
|
Screw M6-1 x 12mm hex head stainless steel |
3 |
|
|
11 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
12a |
175-5238
|
28 inch spray tube assembly |
1 |
(before SN 10361690) |
|
12b |
275-9424
|
28 inch spray bar tube assembly |
1 |
(after SN 10361689) |
|
12c |
175-5232
|
32 inch spray tube assembly |
1 |
(32 and 36 inch) (after SN 10361689) |
|
12d |
275-1512
|
32 and 36 inch spray bar tube assembly |
1 |
(before SN 10361690) |
|
13a |
275-5350
|
Check valve |
1 |
(5680 from SN 10361690 to SN 10541113) (5700 after SN 10361712) |
|
13b |
275-6305
|
Arm |
1 |
(5680) (after SN 10541113) |
|
14 |
175-5906
|
Hose 3/8 x 5/8 x 18 |
1 |
(5680 after SN 10361689) (5700 after SN 10361712) |
|
15 |
175-3594
|
Hose clamp |
2 |
(5680 after SN 10361689) (5700 after SN 10361712) |
|
16 |
275-1505
|
Cap fitting |
2 |
|
|
