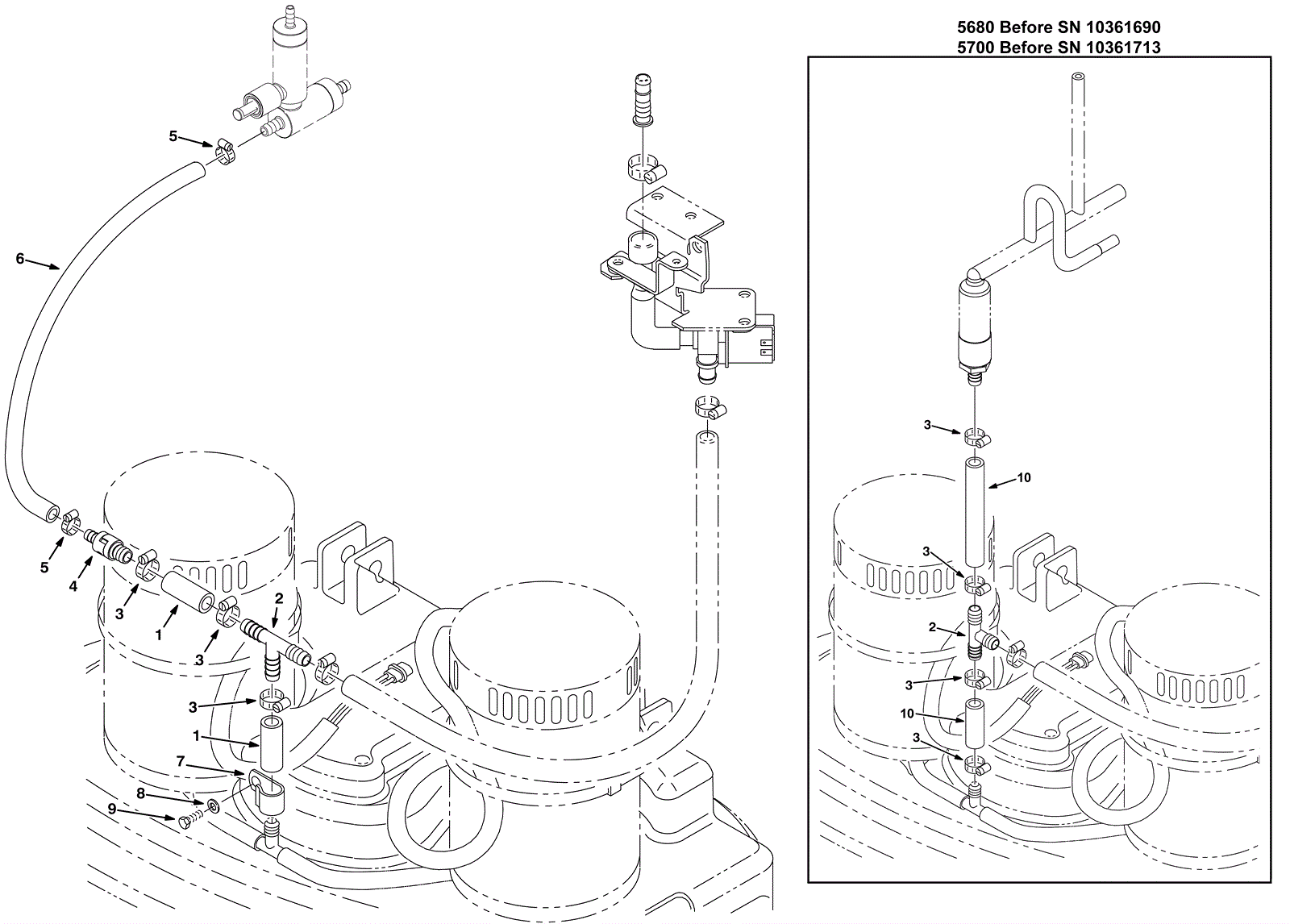

Solution Supply Assembly - FaST - Disk

#PartDescription ReqNotesAvailability
1 175-5249 Hose 1/2 x 1 foot (Tennant Industrial) 2 (5680 after SN 10361689) (5700 after SN 10361712)
2 175-3329 Plastic tee fitting 1
3 175-6081 Hose clamp 4
4a 275-5350 Check valve 1 (5680 from SN 10361690 to SN 10541113) (5700 after SN 10361712)
4b 275-9305 Check valve (Tennant Industrial) 1 (5680) (after SN10541113)
4c 275-9305 Check valve (Tennant Industrial) 1 (from SN 10541114 - )
5 175-3594 Hose clamp 2 (5680 after SN 10361689) (5700 after SN 10361712)
6 175-5906 Hose 3/8 x 5/8 x 18 1 (5680 after SN 10361689) (5700 after SN 10361712)
7 175-2108 P clamp 1 (5680 after SN 10361689) (5700 after SN 10361712)
8 999-0016 Washer 1/4 flat plain finish 1 (5680 after SN 10361689) (5700 after SN 10361712)
9 175-3289 Bolt M5-.8 x 16mm hex head 1 (5680 after SN 10361689) (5700 after SN 10361712)
10 275-1192 Hose 1/2 x 3 foot (Tennant Industrial) 1 (5680 before SN 10361690) (5700 before SN 10361713)
