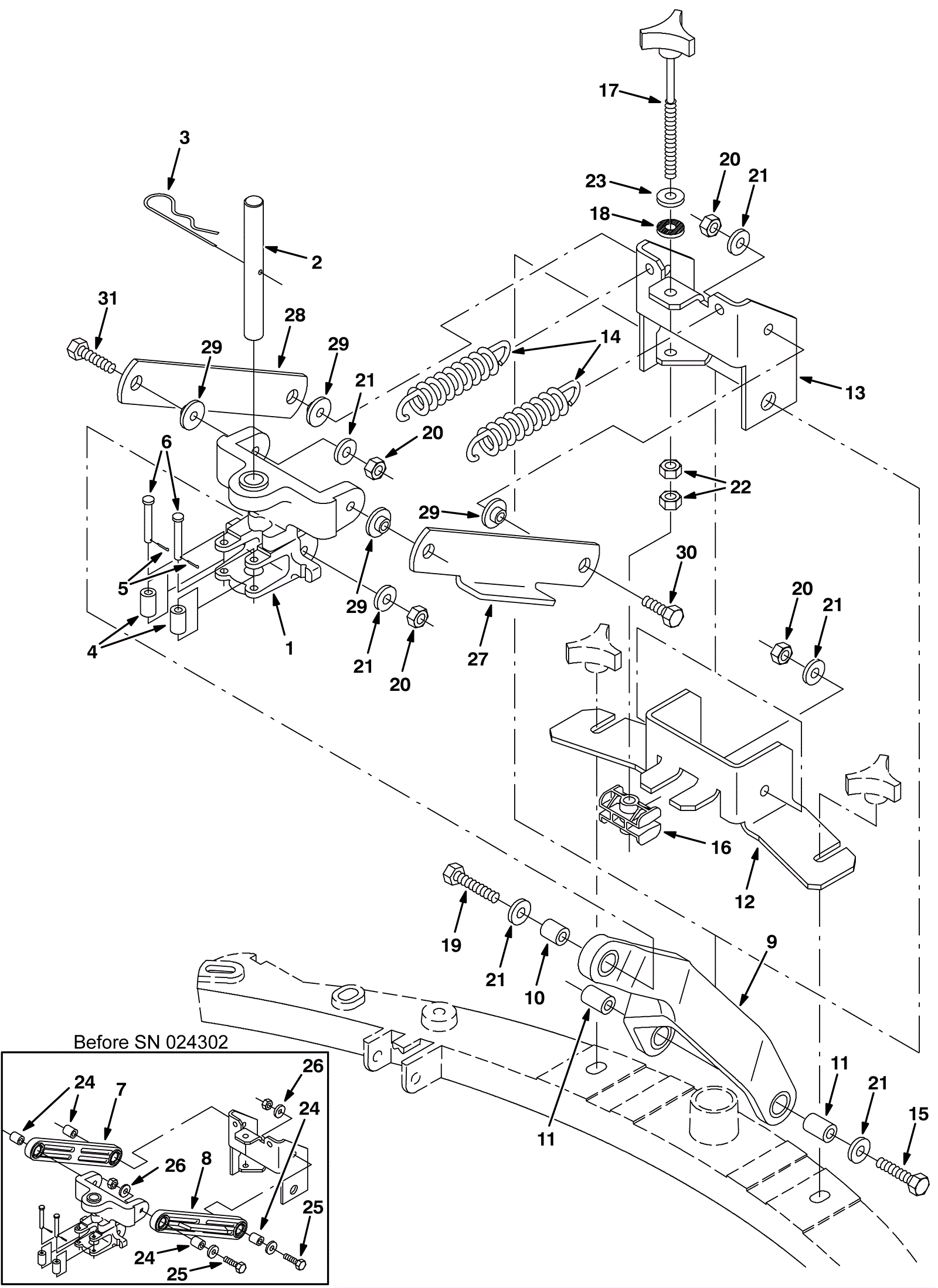

5700 SERIES Squeegee Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-2312 Pivot machine block $93.17 1 (before SN 9999999) ships same day
1b 175-2312 Pivot machine block $93.17 1 (after SN 10000000) ships same day
2 175-2308 Clevis pin $22.11 1 ships same day
3 175-2106 Cotter hair pin $3.30 1 ships same day
4 175-2321 Roller $3.41 2 ships same day
5 175-2361 Cotter pin $2.42 2 ships same day
6 175-2360 Clevis pin $11.44 2 ships same day
7a 175-2559 Upper right squeegee lift linkage $48.95 1 (before SN 024302) usually ships 1-5 days
7b 275-1179 Upper squeegee linkage $19.58 1 (SN 10000000 - ) usually ships 5-16 days
8a 175-2560 Upper left squeegee linkage $56.10 1 (before SN 024302) usually ships 5-16 days
8b 175-2352 Upper squeegee linkage $12.87 1 (SN 10000000 - ) ships same day
9 175-2561 Lower squeegee lift linkage $119.57 1 usually ships 5-16 days
10 175-2562 Sleeve $4.84 1 usually ships 5-16 days
11 175-2563 Sleeve $3.85 2 usually ships 5-16 days
12 175-2295 Lower linkage bracket $84.37 1 ships same day
13 175-2296 Upper linkage bracket $60.50 1 usually ships 5-16 days
14 175-2370 Extension spring $9.79 2 ships same day
15 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 ships same day
16 175-2301 Squeegee adjustment block $12.76 1 ships same day
17 175-2564 Knob $25.96 1 ships same day
18 175-2896 Washer 5/16 $3.30 1 usually ships 5-16 days
19 175-2854 Screw M8-1.25 x 45mm hex head stainless steel $3.96 1 ships same day
20 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 7 usually ships 11-24 days
21 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 10 ships same day
22 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
23 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 1 ships same day
24 175-2562 Sleeve $4.84 4 (before SN 024302) usually ships 5-16 days
25 175-2854 Screw M8-1.25 x 45mm hex head stainless steel $3.96 4 (before SN 024302) ships same day
26 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 4 (before SN 024302) ships same day
27 275-1179 Upper squeegee linkage $19.58 1 (after SN 024303) usually ships 5-16 days
28 175-2352 Upper squeegee linkage $12.87 1 (after SN 024303) ships same day
29 175-2204 Flanged bushing $5.61 4 (after SN 024303) ships same day
30 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 (after SN 024303) ships same day
31 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 (after SN 024303) ships same day
