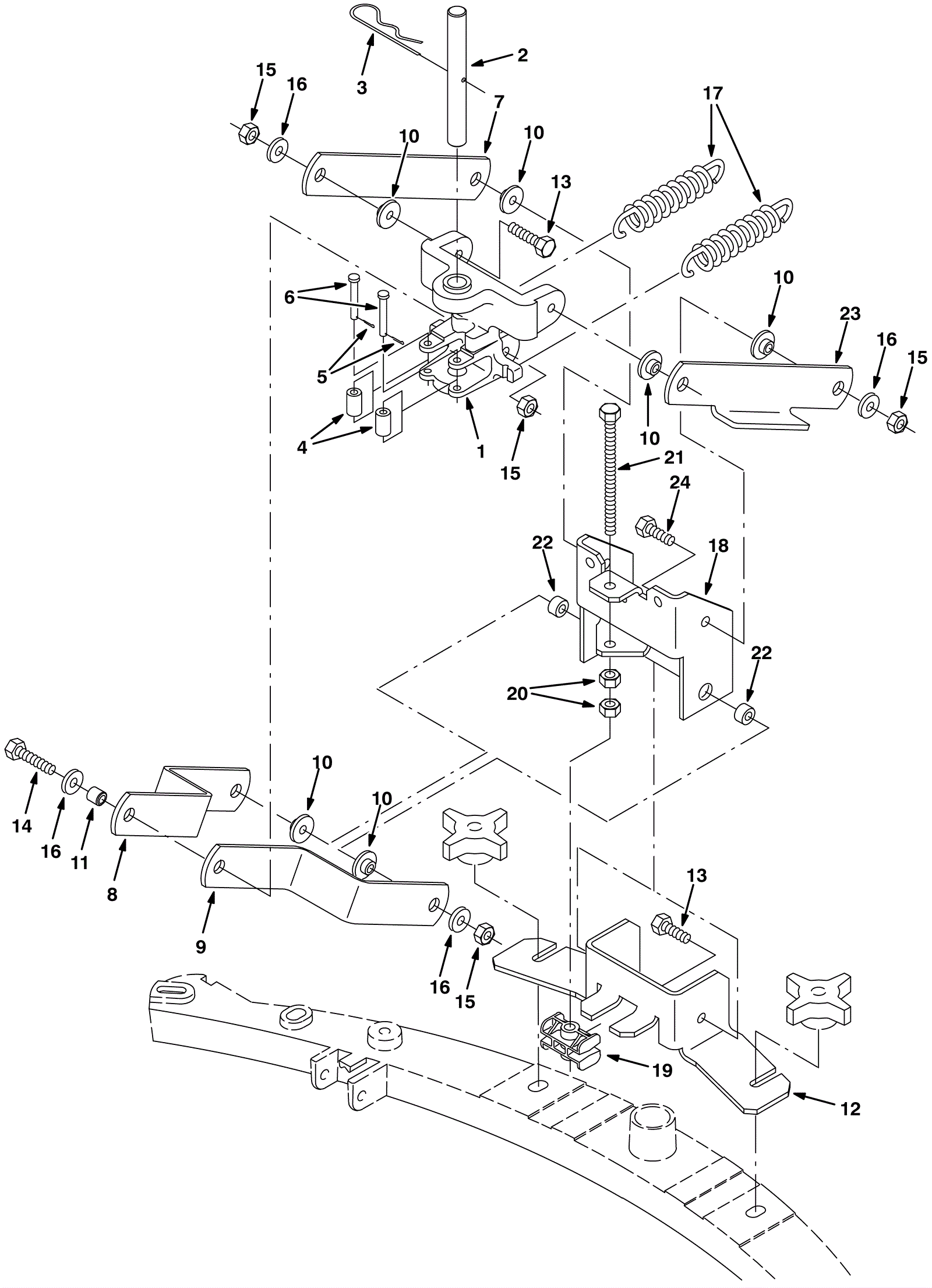

5680 Squeegee Linkage Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-2312 Pivot machine block $84.70 1 ships same day
2 175-2308 Clevis pin $20.10 1 ships same day
3 175-2106 Cotter hair pin $3.00 1 ships same day
4 175-2321 Roller $3.10 2 ships same day
5 175-2361 Cotter pin $2.20 2 ships same day
6 175-2360 Clevis pin $10.40 2 ships same day
7 175-2352 Upper squeegee linkage $11.70 1 ships same day
8 175-2353 Lower right squeegee linkage $21.20 1 usually ships 5-16 days
9 175-2354 Lower left squeegee linkage $24.10 1 usually ships 5-16 days
10 175-2204 Flanged bushing $5.10 6 usually ships 5-16 days
11 175-2249 Sleeve $2.80 2 usually ships 5-16 days
12 175-2295 Lower linkage bracket $76.70 1 ships same day
13 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 4 ships same day
14 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 1 ships same day
15 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 7 ships same day
16 999-9097 Washer M8 flat stainless steel $0.99 7 ships same day
17 175-2370 Extension spring $8.90 2 ships same day
18 175-2296 Upper linkage bracket $55.00 1 usually ships 5-16 days
19 175-2301 Squeegee adjustment block $11.60 1 ships same day
20 999-1424 Nut M8-1.25 hex stainless steel $1.65 2 ships same day
21 999-1384 Screw M8-1.25 x 120mm hex head full thread 8.8 grade $3.76 1 ships same day
22 175-2332 Spacer $4.20 2 usually ships 5-16 days
23 275-1179 Upper squeegee linkage $17.80 1 usually ships 5-16 days
24 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 2 ships same day
