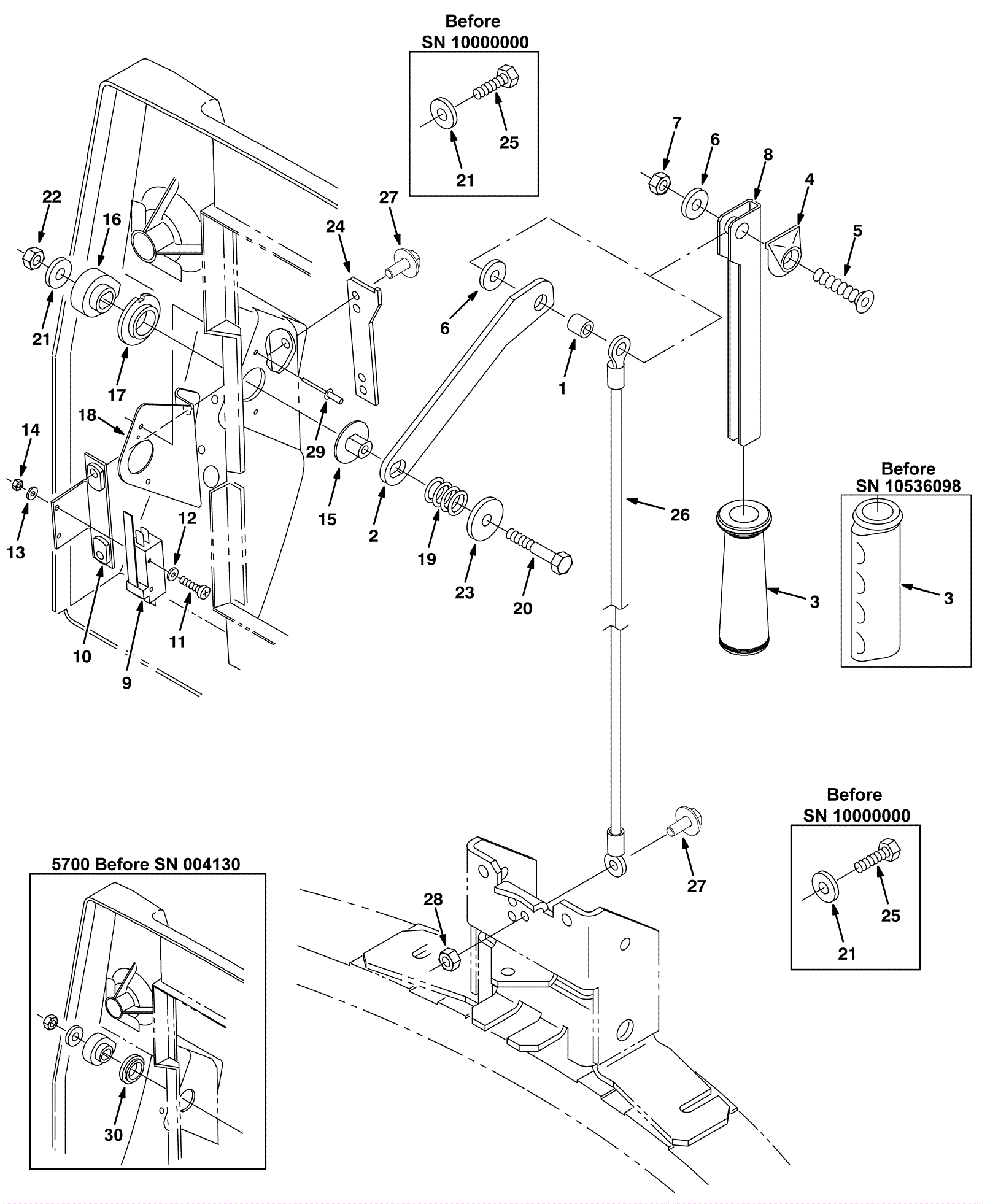

5680 Squeegee Lift Assembly

#PartDescription ReqNotesAvailability
1 175-2249 Sleeve 1 usually ships 16-21 days
2 175-2280 Squeegee lift linkage 1 usually ships 16-21 days
3a N/A Not available 1 (Handle grip) (before SN 10536098) (replaced with 3b) usually ships 3-26 days
3b 675-9894 Handle grip 1 (after SN 10536097) usually ships 16-21 days
3c 991-8571 Handle grip 1 (NON-OEM) usually ships 13-17 days
4 175-2325 Handle bumper 1 usually ships 16-21 days
5 999-0770 Screw M8-1.25 x 30mm flat head socket stainless steel 1 usually ships 11-14 days
6 999-9097 Washer M8 flat stainless steel 2 usually ships 11-14 days
7 999-0496 Nut M8-1.25 nylon insert lock stainless steel 1 usually ships 11-14 days
8 175-2319 Squeegee lift lever 1 usually ships 16-21 days
9a 175-0337 Snap switch 1 (before SN 10000000) usually ships 16-21 days
9b 275-6120 Snap switch 1 (after SN 9999999) usually ships 16-21 days
10 175-2314 Fan switch bracket 1 usually ships 16-21 days
11 999-1221 Screw M3-.5 x 25mm pan head stainless steel 2 usually ships 11-14 days
12 999-0377 Washer 6 SAE flat plain finish 2 usually ships 11-14 days
13 999-1305 Washer M3 split lock stainless steel 2 usually ships 11-14 days
14 999-0768 Nut M3-.5 hex coarse thread plain finish 2 usually ships 11-14 days
15 175-2331 Pivot 1 usually ships 16-21 days
16 175-2313 Fan switch cam 1 usually ships 16-21 days
17 175-2330 Bronze flanged bushing 1 usually ships 16-21 days
18 175-2329 Squeegee pivot plate 1 usually ships 16-21 days
19 175-2203 Compression spring 1 usually ships 16-21 days
20 999-0781 Screw M6-1 x 45mm hex head 1 usually ships 11-14 days
21 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2 (5680 qty 4 and 5700 qty 5 before SN 10000000) usually ships 11-14 days
22 999-0469 Nut M6-1 nylon insert lock zinc plated 1 usually ships 11-14 days
23 999-1288 Washer 1/4 x 1 OD fender stainless steel 2 usually ships 11-14 days
24 175-2279 Catch bracket 1 usually ships 16-21 days
25 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2 (before SN 10000000) (5680) usually ships 11-14 days
26 175-2294 Cable 1 usually ships 16-21 days
27 999-1383 Screw M6-1 x 16mm hex head stainless steel 3 (after SN 9999999) (5680) usually ships 8-9 days
28 999-0497 Nut M6-1 nylon insert lock stainless steel 2 usually ships 11-14 days
29 175-2129 Rivet 1/8 x 5/16 x 1/4 blind steel 2 usually ships 16-21 days
30 175-2558 Squeegee pivot replacement kit 1 (before SN 001430) (5700) usually ships 16-21 days
