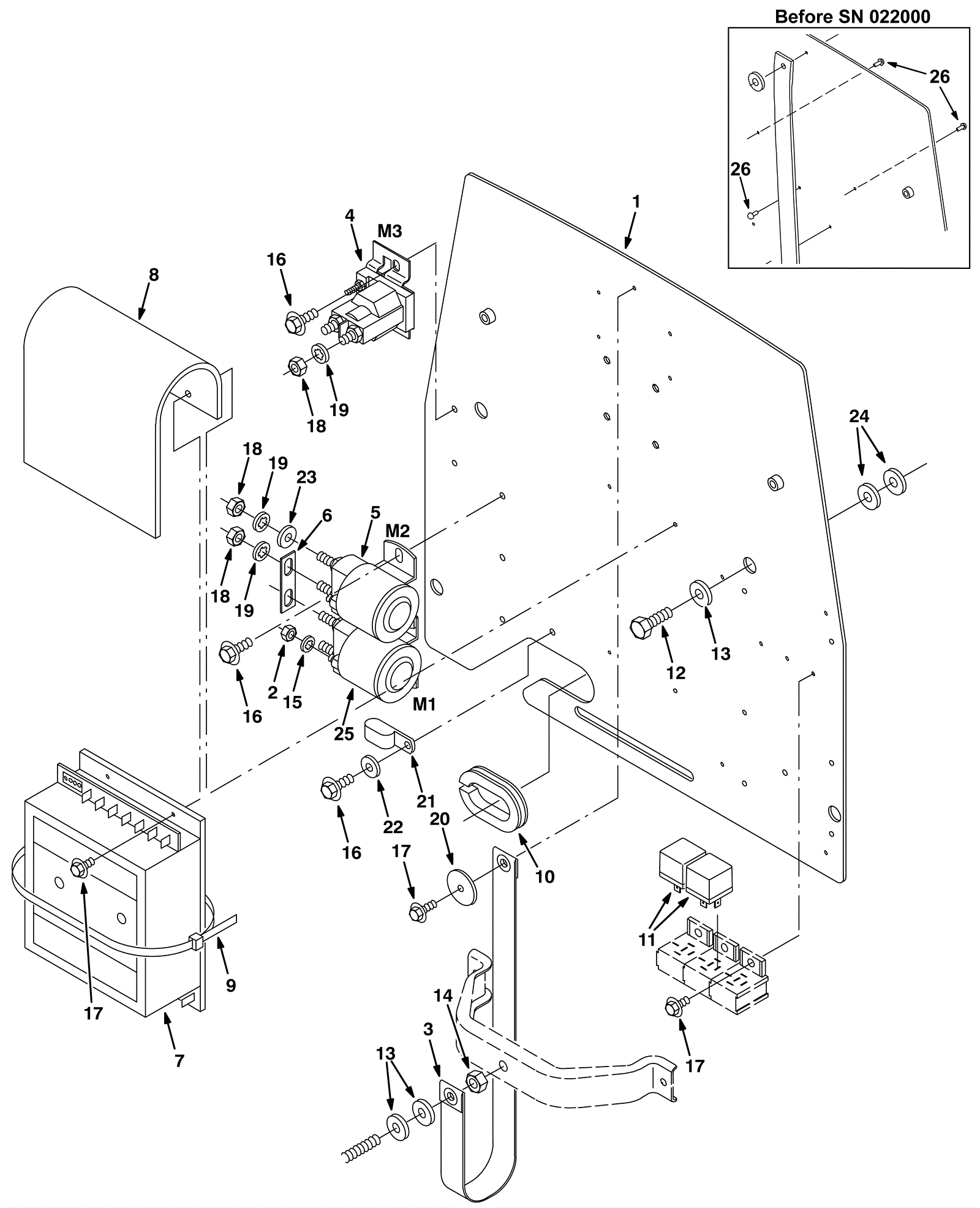

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1a |
175-2371
|
Electronic plate weldment |
$852.06
|
1 |
(before SN 022000) |
usually ships 1-5 days |
1b |
275-0900
|
Electrical plate weldment |
$157.30
|
1 |
(after SN 021999) |
usually ships 1-5 days |
2 |
999-0460
|
Nut 10-32 hex |
$0.99
|
2 |
(after SN 021999) |
ships same day |
3 |
175-2320
|
Strap |
$21.78
|
1 |
|
usually ships 1-5 days |
4 |
175-2373
|
36V contactor |
$35.42
|
1 |
|
ships same day |
5 |
991-1227
|
36V solenoid 4 post (2 large 2 small) |
$65.49
|
1 |
|
ships same day |
6 |
175-2357
|
BUSBAR, .06 0.6W 2.1L 2/.34X.63SL (Tennant Industrial) |
$16.87
|
1 |
(after SN 021999) |
usually ships 1-5 days |
7 |
175-2375
|
Curtis board |
$290.07
|
1 |
(will not work for 5700XP model. Control board for 5700XP is obsolete) |
ships same day |
8 |
175-2376
|
Curtis board splash guard |
$6.38
|
1 |
|
usually ships 1-5 days |
9 |
175-2226
|
Nylon wire tie |
$3.30
|
2 |
|
ships same day |
10 |
175-2366
|
Rubber grommet |
$5.83
|
1 |
|
ships same day |
11 |
175-2265
|
36V 5amp relay |
$16.17
|
2 |
|
usually ships 5-16 days |
12 |
999-0501
|
Bolt M8-1.25 x 25mm hex head full thread stainless steel |
$2.64
|
4 |
|
ships same day |
13 |
999-9097
|
Washer M8 flat stainless steel |
$0.99
|
6 |
|
ships same day |
14 |
999-0579
|
Nut M8-1.25 hex coarse thread zinc |
$0.99
|
1 |
|
ships same day |
15 |
999-0089
|
Washer #10 internal star lock zinc plated |
$0.99
|
2 |
(after SN 021999) |
ships same day |
16 |
999-0778
|
Screw M6-1 x 10mm hex head |
$0.99
|
6 |
(after SN 021999) |
ships same day |
17 |
999-0777
|
Screw M4-.7 x 10mm hex head plain finish |
$0.99
|
7 |
(after SN 021999) |
ships same day |
18 |
999-0763
|
Nut 5/16-24 hex jam plain finish |
$0.99
|
6 |
(after SN 021999) |
ships same day |
19 |
999-0406
|
Washer 5/16 internal star lock zinc plated |
$0.99
|
6 |
(after SN 021999) |
ships same day |
20 |
999-1288
|
Washer 1/4 x 1 OD fender stainless steel |
$0.99
|
1 |
(after SN 021999) |
ships same day |
21 |
275-0901
|
CLAMP, CABLE, STL, 0.6X1.2X0.75W, 1HOLE (Tennant Industrial |
$5.51
|
1 |
(after SN 021999) |
usually ships 1-5 days |
22 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
1 |
(after SN 021999) |
ships same day |
23 |
999-0549
|
Washer 5/16 x 3/4 SAE flat stainless steel |
$0.99
|
2 |
(after SN 021999) |
ships same day |
24 |
175-2367
|
Steel plated washer |
$2.97
|
8 |
(after SN 10455247) |
usually ships 1-5 days |
25a |
175-2374
|
Power contactor |
$247.61
|
1 |
(before SN 022000) |
usually ships 5-16 days |
25b |
175-2122
|
90 degree cable boot |
$3.96
|
2 |
(before SN 022000) |
usually ships 5-16 days |
25c |
991-1227
|
36V solenoid 4 post (2 large 2 small) |
$65.49
|
1 |
(after SN 021999) |
ships same day |
26 |
175-2372
|
Canoe clip (OBSOLETE) |
$1.45
|
3 |
(before SN 022000) |
usually ships 1-5 days |
