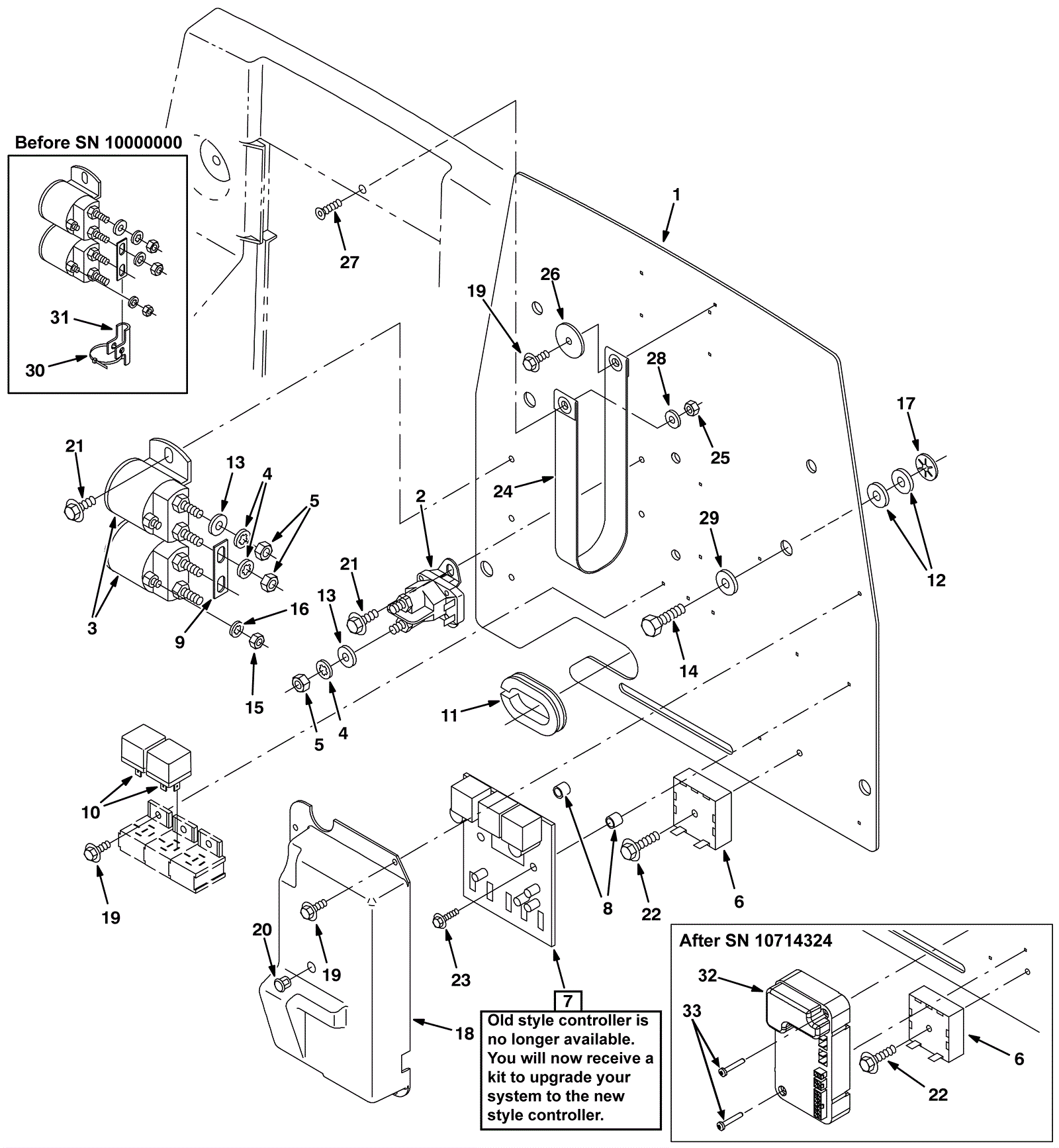

Electrical Panel Assembly

#PartDescription ReqNotesAvailability
1 275-1177 Electronic mounting plate 1
2a 175-2339 36V contactor 1 (before SN 10000000)
2b 275-5717 36V contactor kit 1 (after SN 9999999)
3 991-1227 36V solenoid 4 post (2 large 2 small) 2
4 999-0406 Washer 5/16 internal star lock zinc plated 6
5 999-0763 Nut 5/16-24 hex jam plain finish 6
6 175-2201 Delay module 1
7a 175-2350 Drive module kit 1 (before SN 10714325) (Old style propel motor controller is no longer available and has been replaced with this new drive module kit. This kit includes everything you need to upgrade your system from the old style controller to the new controller.)
8 175-2233 Spacer 2 (before SN 10714325)
9 175-2357 BUSBAR, .06 0.6W 2.1L 2/.34X.63SL (Tennant Industrial) 1
10 175-2265 36V 5amp relay 2
11 175-2366 Rubber grommet 1
12 175-2367 Steel plated washer 8
13 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 4
14 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4
15 999-0460 Nut 10-32 hex 2
16 999-0089 Washer #10 internal star lock zinc plated 2
17 175-2328 Pushnut fastener 4
18 175-2322 Electronic board cover 1 (before SN 10714325)
19 999-0777 Screw M4-.7 x 10mm hex head plain finish 7 (before SN 10714325)
20 175-2359 Plug 1 (before SN 10714325)
21 999-0778 Screw M6-1 x 10mm hex head 5
22 999-0779 Screw M6-1 x 25mm hex head plain finish 1
23 999-0789 Screw M4-.7 x 20mm hex head 2 (before SN 10714325)
24 175-2320 Strap 1
25 999-0497 Nut M6-1 nylon insert lock stainless steel 1
26 999-1288 Washer 1/4 x 1 OD fender stainless steel 1
27 999-0773 Screw M6-1 x 16mm flat socket head stainless steel 1
28 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
29 999-9097 Washer M8 flat stainless steel 4
30 175-2162 Nylon wire tie 1 (before SN 10000000)
31 275-1178 Busbar insulator 1 (before SN 10000000)
32 375-1132 Drive module 1 (after SN 10714324)
33 999-1673 Screw M4-.7 x 25mm pan head phillips stainless steel 2 (after SN 10714324)
