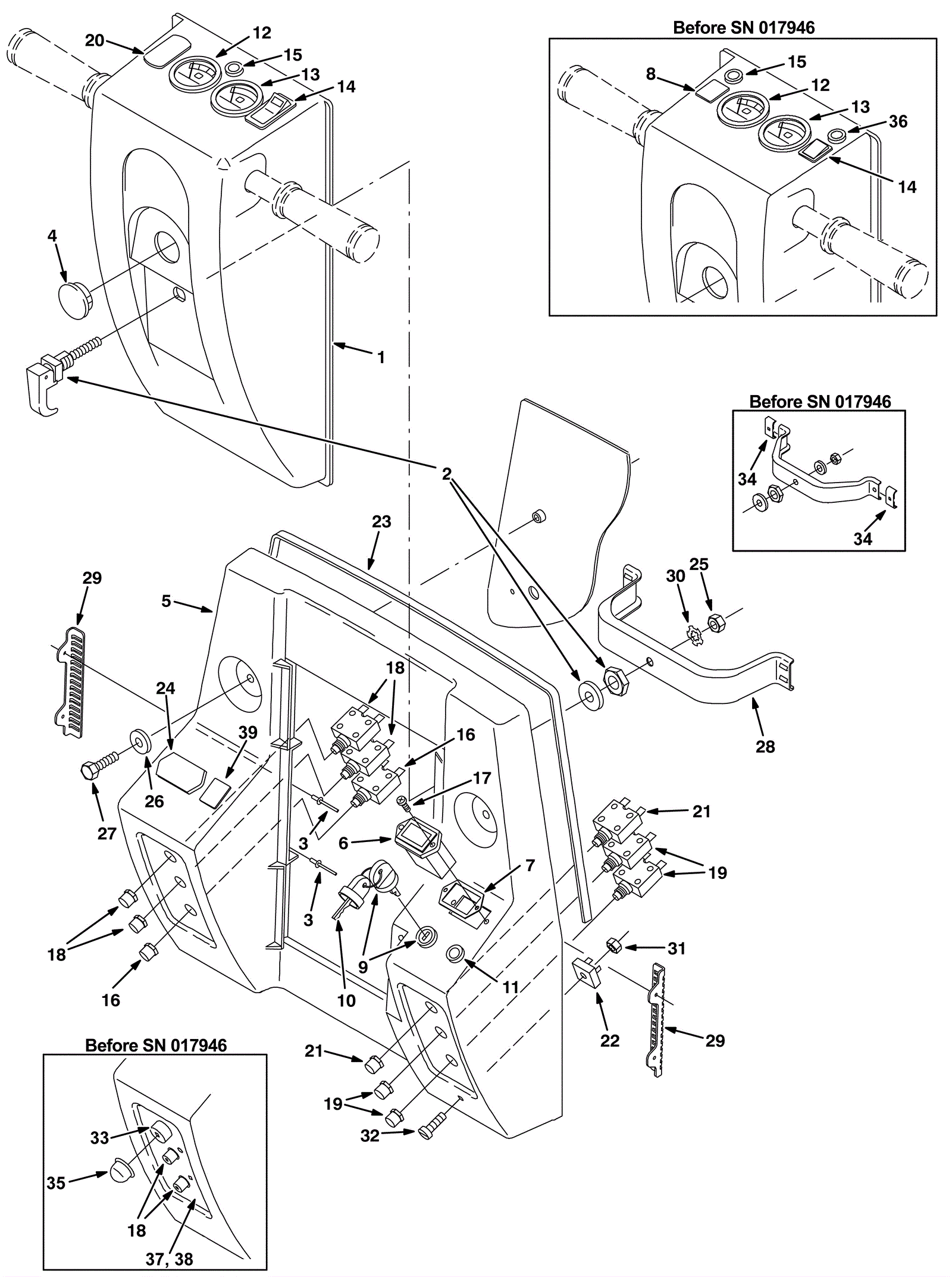

5700 SERIES Console Assembly

#PartDescriptionPriceReqNotesAvailability
1a 175-2533 Steering housing with decal $284.02 1 (before SN 017946) usually ships 10-16 days
1b 175-2553 Shroud and decal kit $278.74 1 (after SN 017945) usually ships 10-16 days
2 175-2534 Latch assembly $40.59 1 usually ships 10-16 days
3 175-2129 Rivet 1/8 x 5/16 x 1/4 blind steel $4.49 4 usually ships 10-16 days
4 175-2147 Nylon plug (black) $4.49 1 usually ships 10-16 days
5a 175-2535 Rear panel replacement kit $537.79 1 (before SN 017946) usually ships 10-16 days
5b 175-2554 Rear panel replacement kit $716.98 1 (after SN 017945) usually ships 10-16 days
6a 175-2536 Hour meter $85.91 1 (before SN 022000) usually ships 10-16 days
6b 275-1176 Hour meter gauge kit $103.07 1 (from SN 022000 to SN 024592) ships same day
6c 175-7079 Hour meter $84.70 1 (after SN 024592) ships same day
6d 991-7137 Hour meter $78.26 1 (NON-OEM) ships same day
7 175-2327 Gasket $5.50 1 usually ships 10-16 days
8a 175-2537 Switch plug $8.25 2 (before SN 017946) usually ships 10-16 days
8b 175-2537 Switch plug $8.25 1 (SN 10000000- ) usually ships 10-16 days
9 175-2149 Key switch assembly with keys $50.27 1 (includes 10) ships same day
10 175-2150 Keys (pkg of 2) $25.63 1 ships same day
11 175-2538 Indicator light assembly (green) $19.91 1 usually ships 10-16 days
12 175-2119 Battery volt meter $59.51 1 usually ships 10-16 days
13 175-2539 Brush down pressure meter $59.51 1 usually ships 10-16 days
14a 175-2540 Scrub switch $154.66 1 (before SN 017946) usually ships 10-16 days
14b 175-2555 Rocker switch $34.98 1 (after SN 017945) (scrub) usually ships 10-16 days
15 175-2541 Indicator light assembly (red) $25.19 1 usually ships 10-16 days
16 175-2336 10amp circuit breaker $16.61 1 (after SN 017945) (machine controls) ships same day
17 175-2146 Screw 6-20 x 1/2 pan head $3.30 2 usually ships 10-16 days
18a 175-2544 20amp circuit breaker $52.03 3 (before SN 017946) (scrub brush) usually ships 10-16 days
18b 175-2337 20amp circuit breaker $16.61 2 (after SN 017945) (scrub brush) usually ships 10-16 days
19a 175-2545 25amp circuit breaker $52.03 1 (before SN 017946) (machine propel) usually ships 10-16 days
19b 991-1631 25amp circuit breaker $15.10 2 (after SN 017945) (vacuum fan and machine propel) ships same day
20 175-2556 Switch plug $7.37 1 (after SN 017945) usually ships 10-16 days
21a 175-2547 2.5amp circuit breaker $17.71 1 (before SN 017946) (machine power) ships same day
21b 175-2557 5amp circuit breaker $16.61 1 (after SN 017945) (machine power) ships same day
22 175-2548 12amp bridge diode $29.26 1 usually ships 1-5 days
23 175-2323 Rubber seal $20.46 1 usually ships 10-16 days
24 175-3646 Hour meter plug $10.78 1 ships same day
25 999-0579 Nut M8-1.25 hex coarse thread zinc $0.99 1 ships same day
26 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
27 175-2892 SCREW, SOC, M10 X 1.50 X 40, 12.9 (Tennant Industrial) $13.17 2 usually ships 1-5 days
28 175-2551 Shroud locking bracket $44.66 1 usually ships 10-16 days
29 175-2552 Steering adjustment bracket $21.56 2 usually ships 10-16 days
30 175-2893 Washer 5/16 internal/external locking $4.49 1 usually ships 10-16 days
31 175-2894 Nut M5-.8 hex nylon locking $3.30 1 usually ships 10-16 days
32 175-2895 Screw M5-0.8 x 20mm pan head $4.49 1 usually ships 10-16 days
33 175-2542 10amp circuit breaker $19.80 1 (before SN 017946) (machine controls) usually ships 10-16 days
34 175-2543 Adjustable shroud stop strip $9.35 2 (before SN 017946) usually ships 1-5 days
35 375-4772 Circuit breaker boot (OBSOLETE) Call for price 2 (before SN 017946) usually ships 10-16 days
36 175-2550 Indicator light assemby (blue) $23.43 1 (before SN 017946) usually ships 10-16 days
37 275-4655 Screw #8-32 x 0.88, G1 Pan $3.17 8 (before SN 017946) usually ships 1-5 days
38 999-0412 Washer #8 SAE flat $0.99 8 (before SN 017946) ships same day
39 175-2537 Switch plug $8.25 2 usually ships 10-16 days
