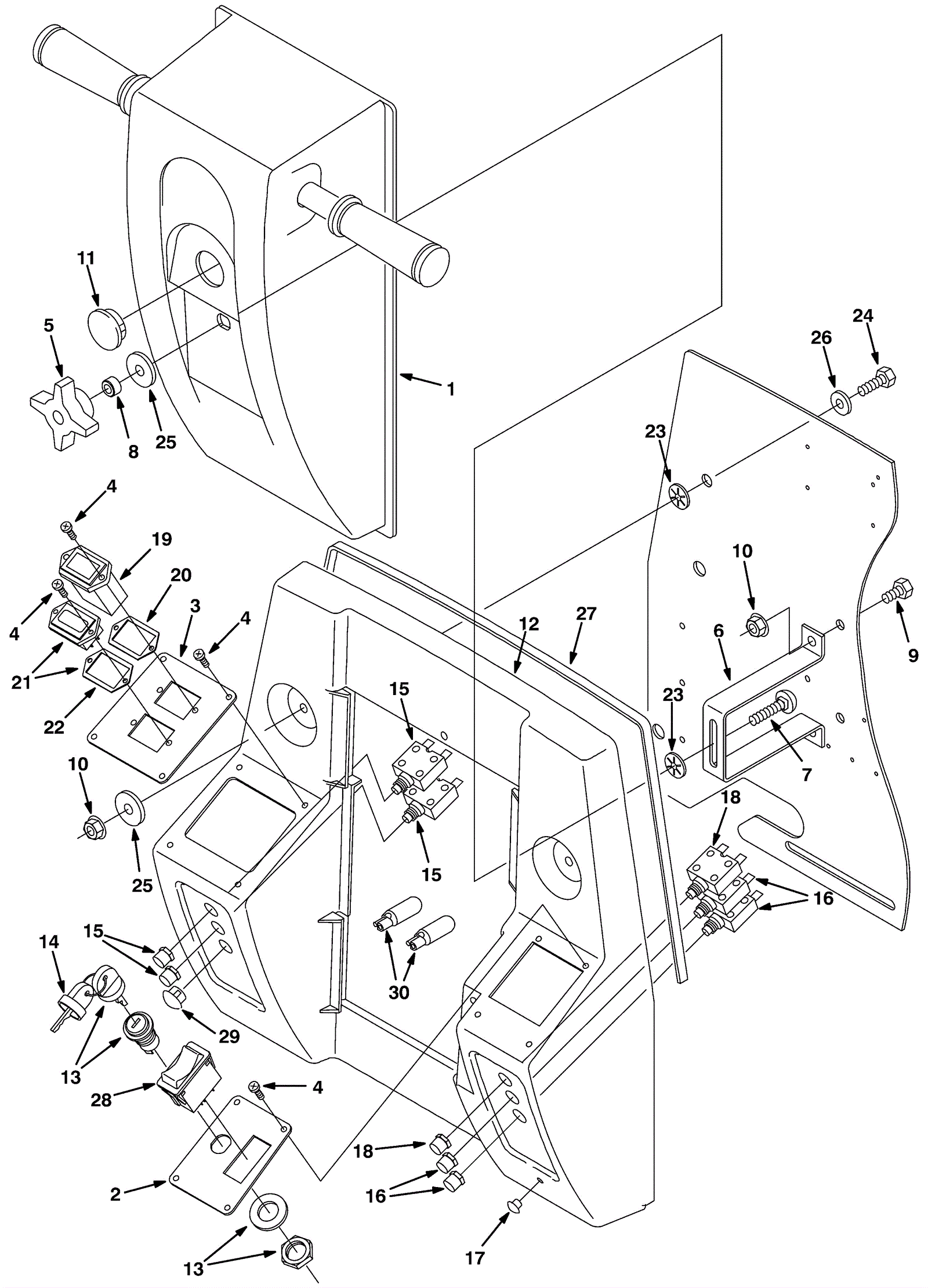

5680 Console Assembly

#PartDescriptionPriceReqNotesAvailability
1 175-2141 Steering shroud $286.33 1 usually ships 5-16 days
2 175-2142 Right hand element cover $34.54 1 usually ships 5-16 days
3 175-2143 Left hand element cover $48.95 1 usually ships 5-16 days
4 175-2146 Screw 6-20 x 1/2 pan head $2.42 12 usually ships 5-16 days
5 175-2208 Plastic star knob $3.96 1 ships same day
6 175-2145 Shroud adjusting bracket $38.61 1 usually ships 5-16 days
7 275-1175 Bolt.31-18 x 2 carriage head (Tennant Industrial) $4.84 1 ships same day
8 175-2562 Sleeve $4.84 1 usually ships 5-16 days
9 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
10 999-0665 Nut M8-1.25 flange lock $0.99 4 ships same day
11 175-2147 Nylon plug (black) $3.30 1 usually ships 5-16 days
12 175-2148 Rear panel replacement kit $471.46 1 (includes panel, labels and hardware needed to install) usually ships 5-16 days
13 175-2149 Key switch assembly with keys $45.98 1 (includes 14) ships same day
14 175-2150 Keys (pkg of 2) $23.32 1 ships same day
15 175-2151 30amp circuit breaker $15.18 2 (brush) ships same day
16 991-1631 25amp circuit breaker $13.80 2 (machine propel and vacuum fan motor) ships same day
17 175-8929 PLUG (Tennant Industrial) $3.67 1 usually ships 1-5 days
18 175-2336 10amp circuit breaker $15.18 1 (scrub head actuator) ships same day
19a 275-1176 Hour meter gauge kit $94.27 1 (before SN 017305) ships same day
19b 175-7079 Hour meter $77.44 1 (after SN 017306) ships same day
19c 991-7137 Hour meter $78.26 1 (NON-OEM) ships same day
20 175-2327 Gasket $4.29 1 usually ships 5-16 days
21a 175-2272 36V battery gauge $97.46 1 (before SN 10714325) (includes 22) usually ships 5-16 days
21b 175-4935 36V Battery gauge $89.10 1 (after SN 10714324) (includes 22) usually ships 5-16 days
21c 991-7137 Hour meter $78.26 1 (NON-OEM) ships same day
22 175-2327 Gasket $4.29 1 usually ships 5-16 days
23 175-2328 Pushnut fastener $2.42 3 ships same day
24 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 2 ships same day
25 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 3 ships same day
26 999-9097 Washer M8 flat stainless steel $0.99 2 ships same day
27 175-2323 Rubber seal $18.59 1 usually ships 5-16 days
28a 175-2356 Rocker switch DPST $42.68 1 (scrub) (OEM) ships same day
28b 991-3035 Rocker switch DPST $48.95 1 (NON-OEM) usually ships 5-16 days
29 175-2423 Nylon plug (black) $3.30 1 usually ships 5-16 days
30 175-2216 Diode plug $12.87 2 (after SN 9999999) ships same day
