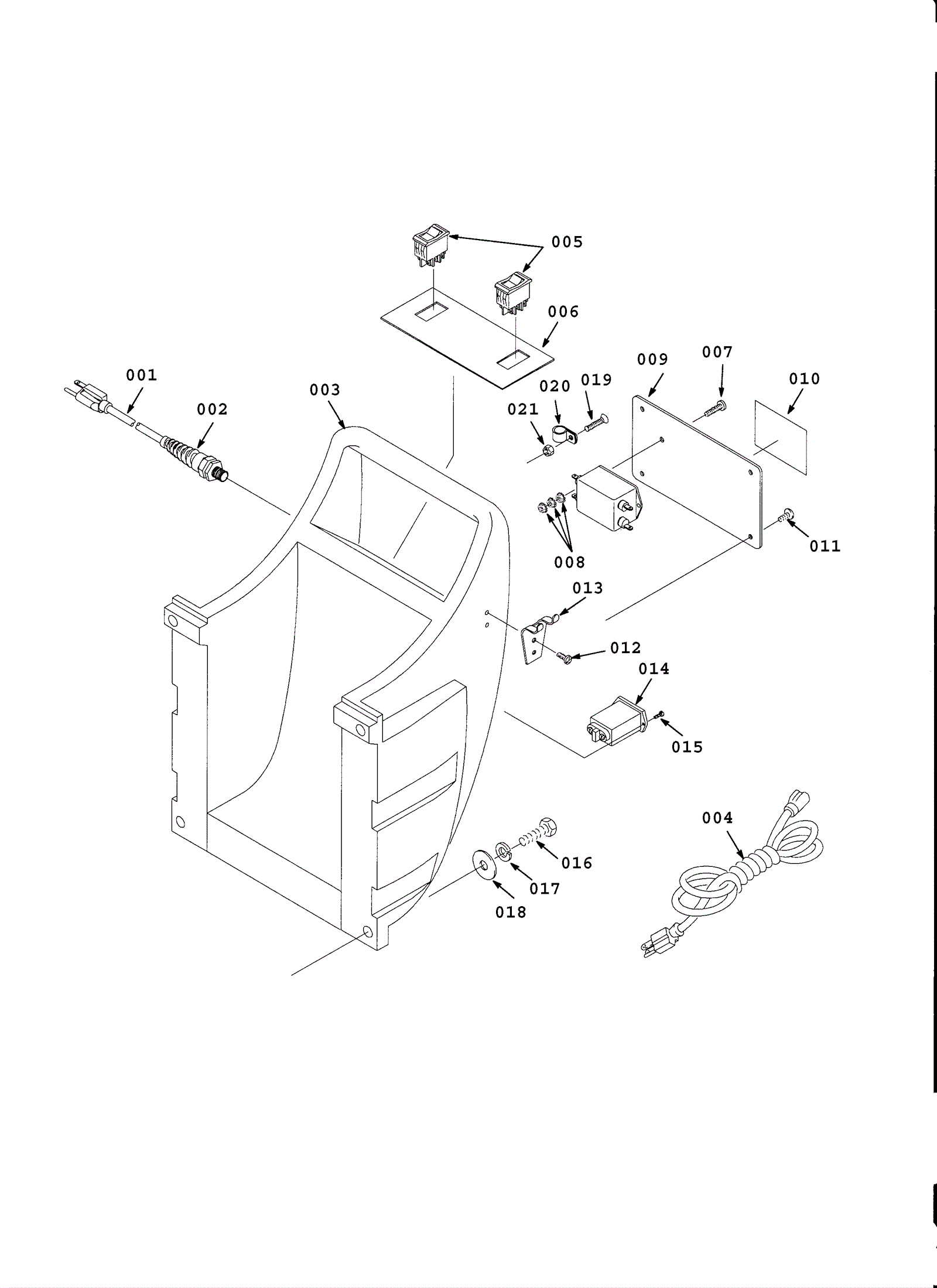

EXPLORER1500 Handle Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-0992 14/3 pigtail cord 20 inch $16.50 1 usually ships 10-16 days
002 175-0001 Strain relief $12.65 1 ships same day
003 275-8034 Green handle $504.68 1 usually ships 1-5 days
004 175-1937 14/3 extension cord 25 feet (yellow) $25.85 1 ships same day
005 175-1008 Rocker switch $30.91 2 ships same day
006 175-7312 Warning decal $13.86 1 usually ships 1-5 days
007 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
008 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
009 175-6542 Plate assembly with decal $82.17 1 usually ships 1-5 days
010 275-9008 Warning decal $13.20 1 usually ships 1-5 days
011 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 4 ships same day
012 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
013 175-6069 Drain hose bracket $22.11 1 usually ships 10-16 days
014 275-6915 Hourmeter gauge $49.39 1 usually ships 10-16 days
015 999-0447 Screw 6-32 x 1/2 pan head phillips zinc plated $0.99 2 ships same day
016 999-0350 Bolt 3/8-16 x 1 1/2 hex head grade 5 zinc plated $0.99 4 ships same day
017 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
018 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
019 999-1549 Screw 10-24 x 3/4 flat head phillips stainless steel $0.99 1 usually ships 1-5 days
020 175-0039 Crevice tool (OBSOLETE) $4.88 1 usually ships 1-5 days
021 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
