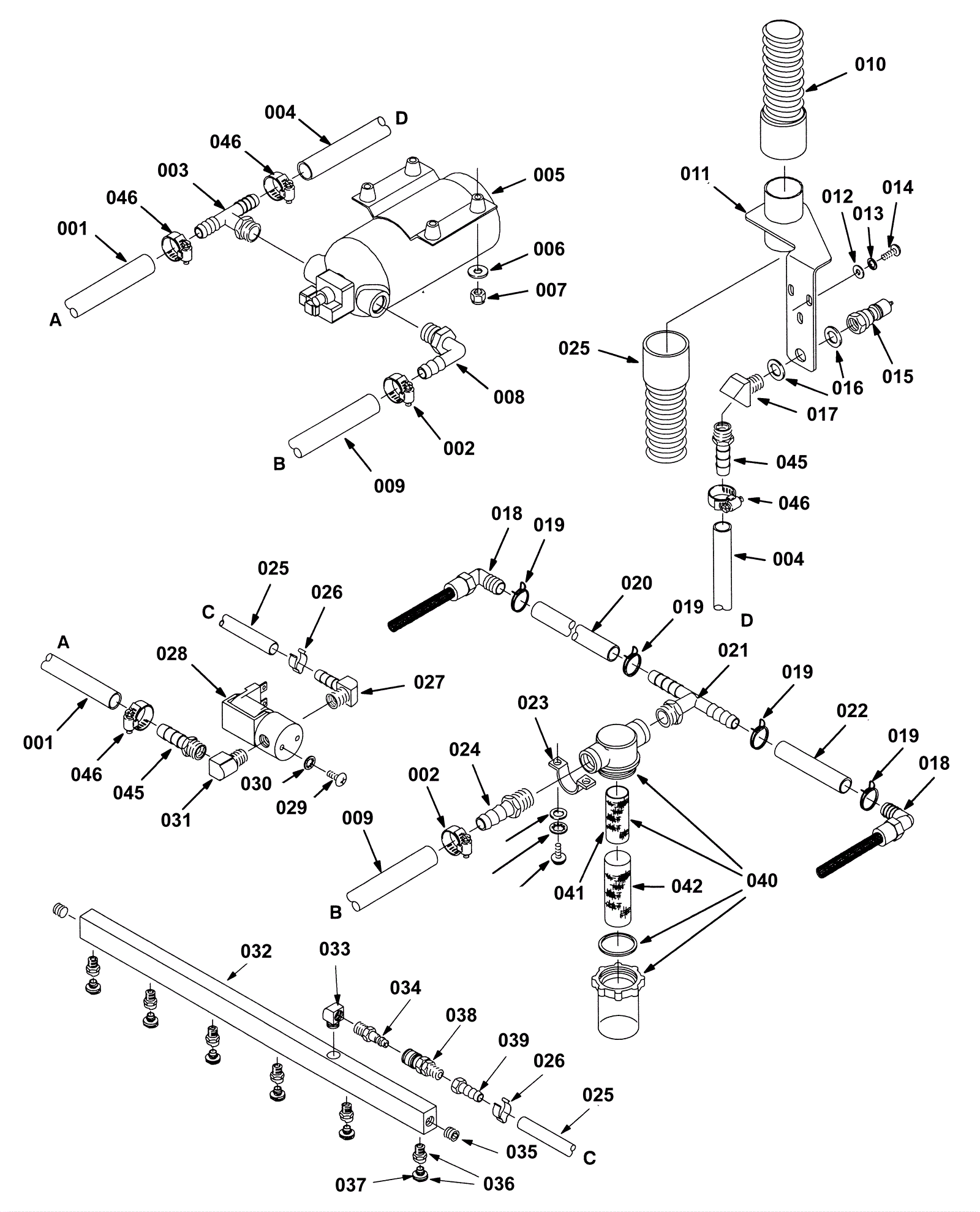

1530 Plumbing Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4298 11 inch hose (red) $20.90 1 usually ships 5-16 days
002 175-6081 Hose clamp $4.84 2 ships same day
003 175-3692 Tee fitting $9.35 1 usually ships 5-16 days
004 175-4298 11 inch hose (red) $20.90 1 usually ships 5-16 days
005a 175-6011 120V 100 PSI pump $476.08 1 usually ships 5-16 days
006 999-0006 Washer 3/16 flat zinc plated $0.99 2 ships same day
007 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
008 175-3685 90 degree elbow fitting $5.83 1 usually ships 5-16 days
009 175-4300 Hose (OBSOLETE) $5.41 1 usually ships 1-5 days
010 175-0887 Vacuum hose 1 1/2 x 33 inch $45.76 1 usually ships 5-16 days
011 175-4302 Bracket $111.76 1 usually ships 1-5 days
012 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
013 999-1117 Washer M6 split lock stainless steel $0.99 3 ships same day
014 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 3 ships same day
015 991-8150 1/4 inch BH2-61 male nipple (mate to QD80) $10.94 1 ships same day
016 175-1825 Washer $3.85 2 ships same day
017 175-6031 Straight jet fitting $7.48 1 ships same day
018 175-4303 Inline filter with mesh screen $51.26 2 usually ships 5-16 days
019 175-3671 Hose clamp $3.96 4 ships same day
020 175-4304 Hose $13.53 1 usually ships 1-5 days
021 175-3692 Tee fitting $9.35 1 usually ships 5-16 days
022 175-4305 Hose $9.35 1 usually ships 1-5 days
023 175-3690 U clamp $26.29 2 usually ships 5-16 days
024 175-1025 Straight brass fitting $6.60 1 ships same day
025 175-4333 Vacuum hose with one cuff $38.94 1 usually ships 5-16 days
026 175-6170 Hose clamp $3.96 2 ships same day
027 175-4307 Hosebarb $11.99 1 usually ships 5-16 days
028 275-1969 Solenoid valve $224.40 1 usually ships 5-16 days
029 999-1165 Screw 8-32 x 3/8 truss head phillips stainless steel $0.99 2 ships same day
030 999-1083 Washer #8 internal star lock stainless steel $0.99 2 ships same day
031a 175-2614 90 degree elbow fitting $4.95 1 ships same day
031b 175-4309 Spray bar assembly $853.71 1 Includes 032 - 036 usually ships 5-16 days
032 175-1786 22 inch spraybar $83.05 1 usually ships 5-16 days
033 175-1661 90 degree elbow fitting $4.95 1 ships same day
034 175-1684 Quick disconnect fitting $21.56 1 usually ships 5-16 days
035 175-6121 Brass plug $3.96 2 ships same day
036 175-6118 Spray tip assembly $76.45 6 ships same day
037 175-3535 Brass spray tip $28.60 6 ships same day
038 175-1652 1/8 inch female brass quick coupler $35.20 1 ships same day
039 175-3529 Brass fitting $4.95 1 ships same day
040 175-4310 Solution filter bowl assembly $73.81 1 ships same day
041 175-6250 Strainer $15.62 1 Includes 041 ships same day
042 175-4311 Mesh filter screen $24.97 1 usually ships 5-16 days
043 999-9132 Washer M5 split lock stainless steel $0.99 4 ships same day
044 999-1090 Screw M5-.8 x 10mm pan head phillips zinc plated $0.99 4 ships same day
045 175-6030 Straight hosebarb $5.83 2 usually ships 5-16 days
046 175-0199 Hose clamp $6.38 4 usually ships 5-16 days
047 999-0393 Washer 3/16 flat aluminum $0.99 4 ships same day
5b 991-8225 Shurflo pump $252.55 1 ships same day
