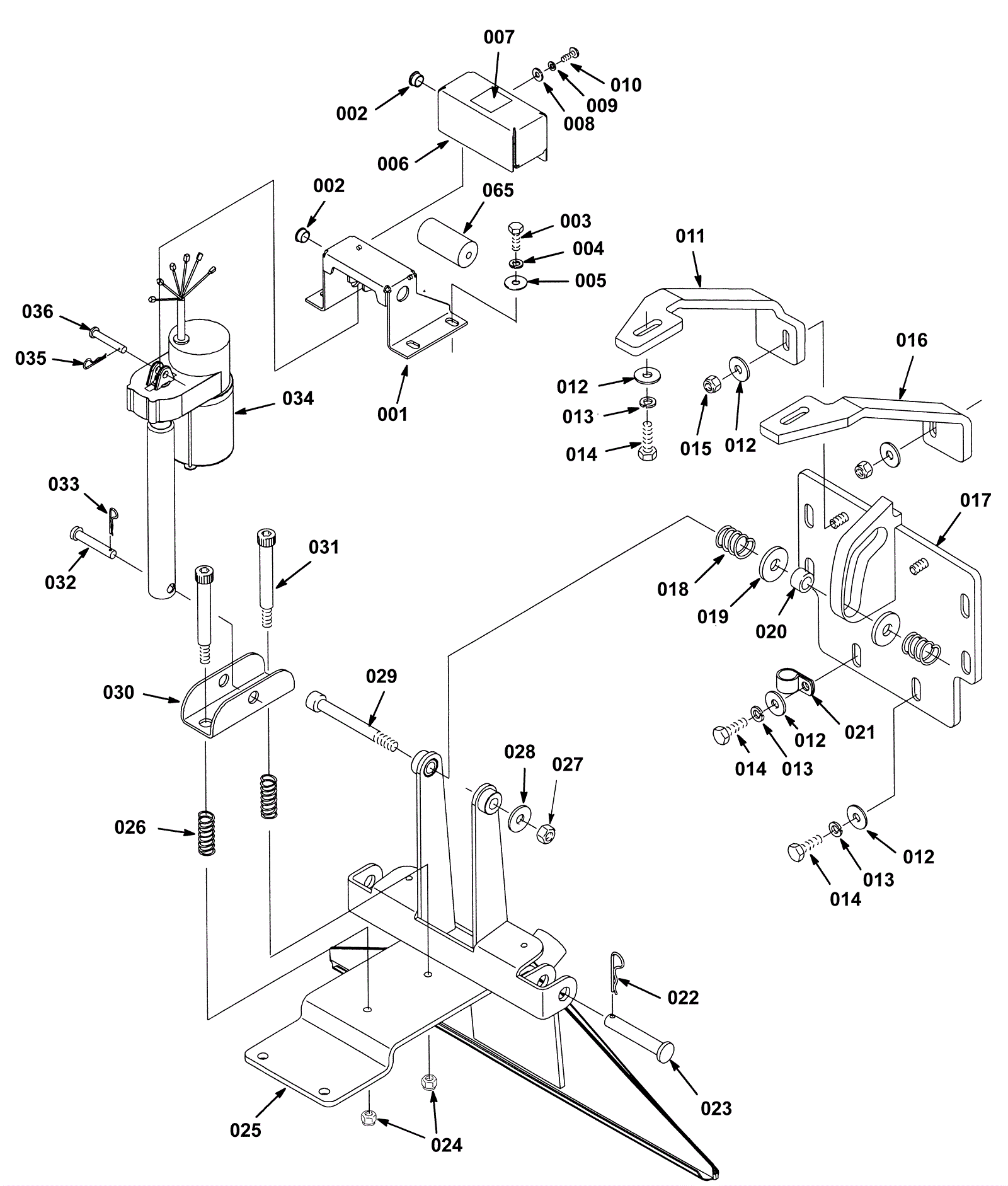

1530 Vacuum Shoe Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-8644 Actuator mounting bracket $119.68 1 usually ships 1-5 days
002 175-0085 Strain relief bushing $3.30 2 usually ships 1-5 days
003 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
004 999-1053 Washer 5/16 internal star lock stainless steel $0.99 4 ships same day
005 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
006 275-4395 Capacitor housing $100.10 1 usually ships 1-5 days
007 175-4351 General hazard decal $2.02 1 ships same day
008 175-4234 Washer M5.3 flat $3.30 2 usually ships 5-16 days
009 275-4396 Washer M5 lock $1.45 2 usually ships 1-5 days
010 999-0901 Screw M5-.8 x 16mm pan head phillips stainless steel $0.99 2 ships same day
011 175-4357 Bracket $25.52 1 usually ships 1-5 days
012 999-0024 Washer 5/16 flat stainless steel $1.34 10 ships same day
013 999-1053 Washer 5/16 internal star lock stainless steel $0.99 8 ships same day
014 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 8 ships same day
015 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
016 175-8647 Left roller support bracket $28.82 1 usually ships 1-5 days
017 175-4013 Bracket $216.37 1 usually ships 1-5 days
018 175-4371 Compression spring $3.96 2 usually ships 5-16 days
019 175-4358 Washer 1 1/2 thrust $13.75 2 usually ships 5-16 days
020 175-4359 Linkage roller $23.43 1 ships same day
021 175-3005 P clamp $3.41 1 usually ships 5-16 days
022 175-2106 Cotter hair pin $3.30 2 ships same day
023 175-2105 Clevis pin $6.60 2 ships same day
024 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 2 ships same day
025 175-4335 Vacuum shoe $882.86 1 usually ships 5-16 days
026 175-4364 Compression spring $4.18 2 usually ships 5-16 days
027 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
028 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
029 175-2856 Bolt 3/8-16 x 1/2 x 4 shoulder $21.01 1 usually ships 1-5 days
030 175-4367 Actuator spring bracket $59.18 1 usually ships 1-5 days
031 175-4366 Bolt 3/8-16 x 1/2 x 3 shoulder $14.52 2 usually ships 1-5 days
032 175-5083 Clevis pin $5.50 1 usually ships 1-5 days
033 175-5080 Cotter pin $3.30 1 ships same day
034 275-4397 Actuator 120V $734.80 1 usually ships 5-16 days
035 175-4331 Cotter hair pin $3.96 1 ships same day
036 175-2111 Clevis pin $3.85 1 ships same day
