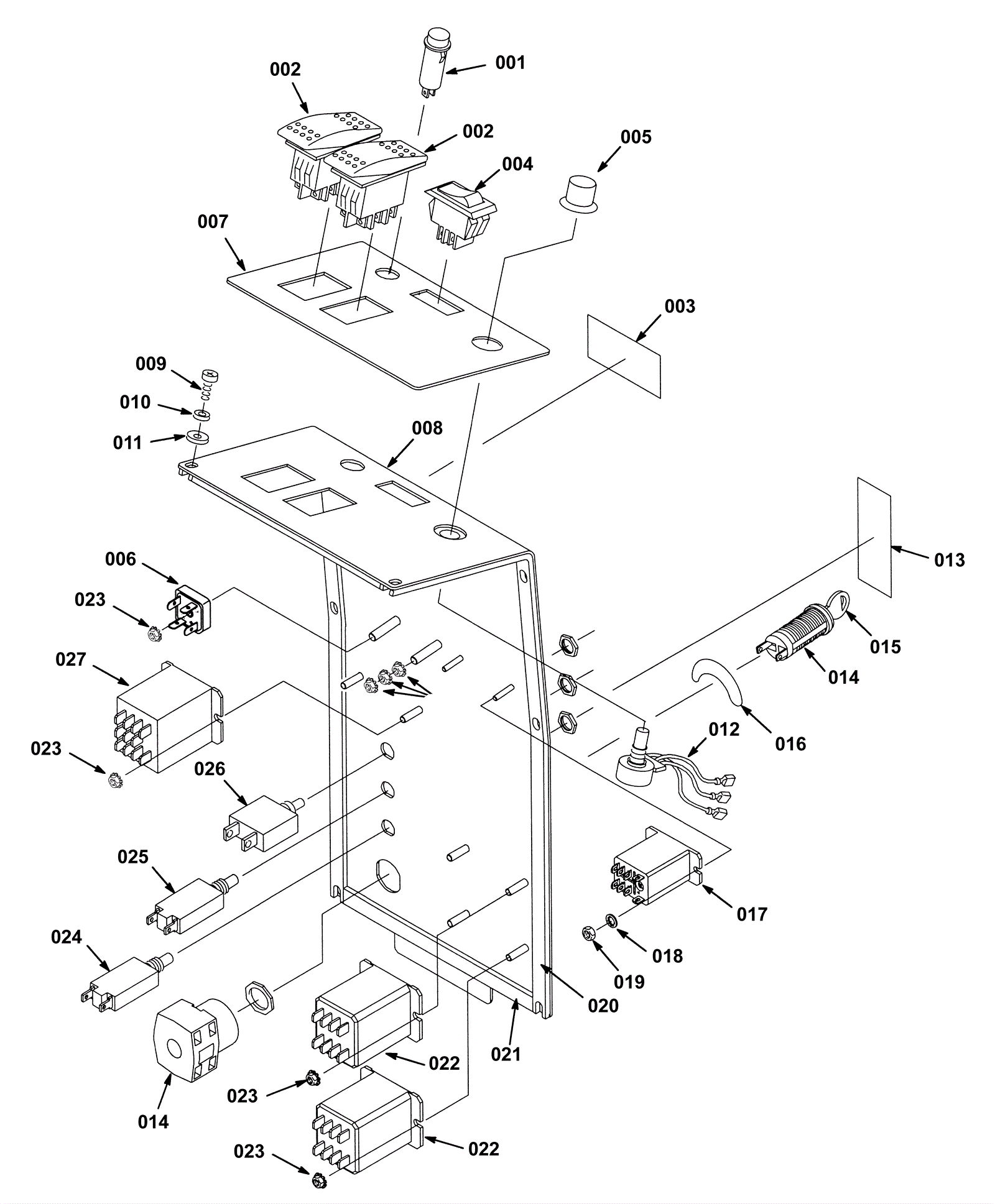

1530 Control Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 275-4386 Green light led $14.52 1 ships same day
002 175-1847 Rocker switch $49.50 2 ships same day
003 175-4297 Accessory tool label $16.83 1 usually ships 5-16 days
004 275-1968 Lighted rocker switch $15.18 1 ships same day
005 175-4281 Potentiometer knob $13.75 1 usually ships 5-16 days
006 175-6052 15amp rectifier $24.09 1 ships same day
007 275-4387 Dash label $28.49 1 usually ships 1-5 days
008 275-4388 Switch panel $169.18 1 usually ships 1-5 days
009 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 8 ships same day
010 999-1083 Washer #8 internal star lock stainless steel $0.99 8 ships same day
011 999-9089 Washer M4 flat stainless steel $0.99 8 ships same day
012 275-4389 Potentiometer harness $180.73 1 ships same day
013 275-4390 Circuit breaker label $17.16 1 usually ships 1-5 days
014 175-4287 Key switch assembly $140.47 1 ships same day
015 175-0185 Double sided key (steel) $15.40 1 ships same day
016 175-4288 Key switch decal $13.97 1 usually ships 1-5 days
017 275-4391 120 DPDT Relay $48.07 1 ships same day
018 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
019 999-0768 Nut M3-.5 hex coarse thread plain finish $1.54 2 ships same day
020 175-4291 Console gasket $3.30 2 usually ships 5-16 days
021 175-4292 Console gasket $17.71 2 ships same day
022 275-4393 DPDT Relay $140.47 2 ships same day
023 175-4290 Nut M4 x .70mm hex $2.31 10 usually ships 1-5 days
024 175-6215 Circuit breaker 2.5 amp $36.08 1 ships same day
025 175-4839 Circuit breaker 4.5a $31.57 1 ships same day
026 175-6630 17amp circuit breaker $25.08 1 usually ships 5-16 days
027 275-4394 Relay $97.24 1 usually ships 5-16 days
