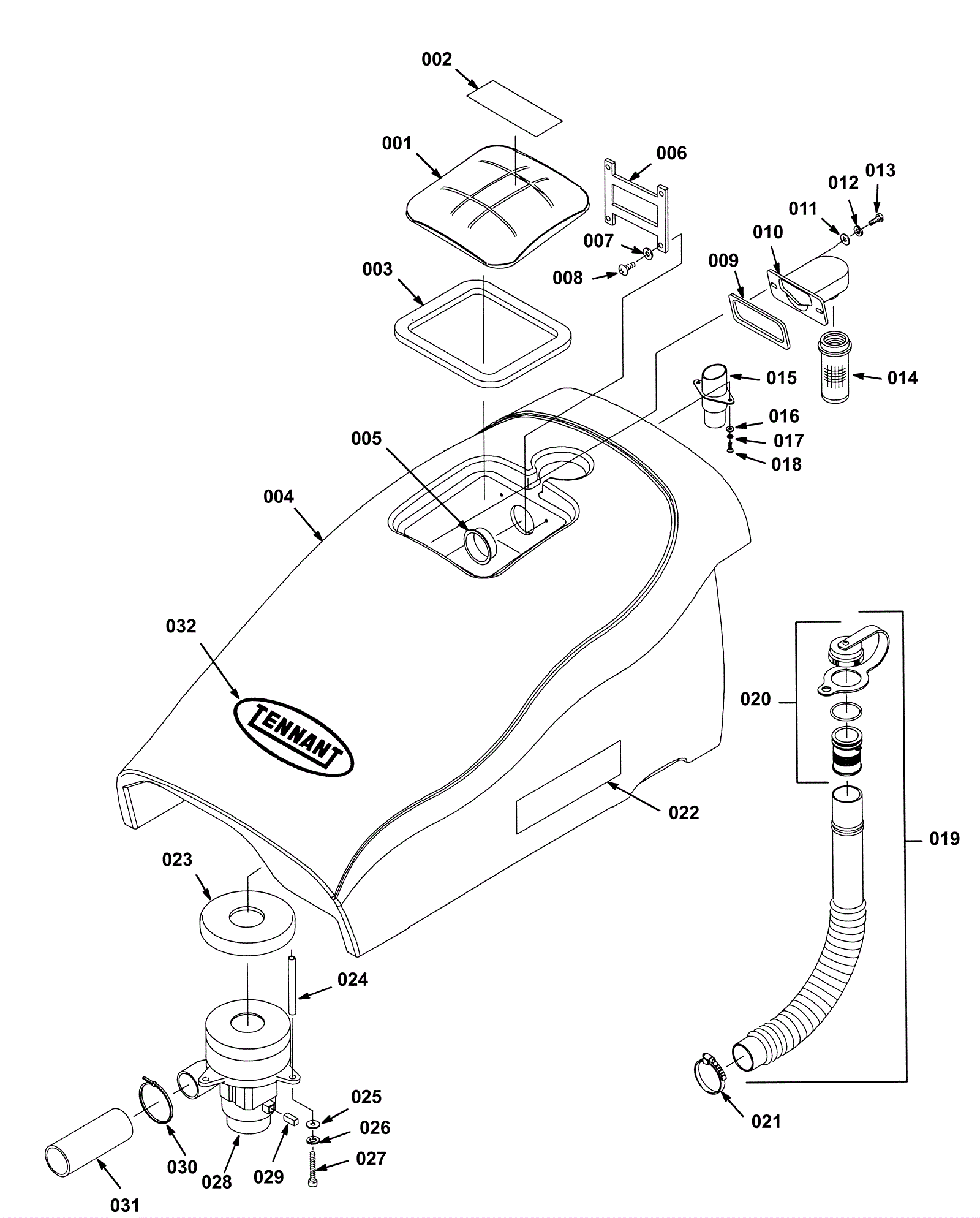

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
275-4379
|
Recovery tank lid assembly |
1 |
Includes 002 and 003 |
|
002 |
175-3906
|
Warning decal |
1 |
|
|
003 |
175-4226
|
Tank lid gasket |
1 |
|
|
004 |
175-4227
|
Recovery tank (teal) |
1 |
|
|
005 |
175-4228
|
2 inch plug |
1 |
|
|
006 |
175-1803
|
Tank lid hinge |
1 |
|
|
007 |
175-5797
|
Washer 1/6 flat zinc |
4 |
|
|
008 |
999-0336
|
Screw 6-32 x 3/8 pan head phillips stainless steel |
4 |
|
|
009 |
175-4231
|
Float mount gasket |
1 |
|
|
010 |
175-4232
|
Float cage mount |
1 |
|
|
011 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
012 |
999-1117
|
Washer M6 split lock stainless steel |
2 |
|
|
013 |
999-1168
|
Screw M6-1 x 20mm pan head phillips stainless steel |
2 |
|
|
014a |
175-1804
|
Shut-off float |
1 |
|
|
014b |
991-3108
|
Shut off float |
1 |
(NON-OEM) |
|
015 |
175-4233
|
Hose adaptor |
1 |
|
|
016 |
175-4234
|
Washer M5.3 flat |
2 |
|
|
017 |
999-9132
|
Washer M5 split lock stainless steel |
2 |
|
|
018 |
175-3234
|
Screw M5-.8 x 10mm pan head |
2 |
|
|
019a |
175-1153
|
Drain hose assembly |
1 |
Includes 020 (OEM) |
|
019b |
991-5126
|
Drain hose assembly |
|
(NON-OEM) |
|
020a |
175-4214
|
Drain plug assembly |
1 |
|
|
020b |
991-3028
|
Drain plug assembly |
1 |
|
|
021 |
997-2007
|
Hose clamp |
1 |
|
|
022 |
N/A
|
Not available |
2 |
|
|
023 |
675-9893
|
Vacuum motor gasket |
1 |
|
|
024 |
175-4243
|
Spacer |
3 |
|
|
025 |
999-0016
|
Washer 1/4 flat plain finish |
3 |
|
|
026 |
999-0632
|
Washer 1/4 split lock stainless steel |
3 |
|
|
027 |
999-1169
|
Bolt M6-1 x 100mm hex head full thread plain finish |
3 |
|
|
028 |
175-0197
|
120V 3 stage vacuum motor |
1 |
Includes 029 |
|
029 |
275-5835
|
Carbon brush (pkg of 2) |
1 |
|
|
030 |
175-0921
|
Wire tie |
1 |
|
|
031 |
175-2979
|
Vacuum exhaust muffler |
1 |
|
|
032 |
175-4237
|
Tennant decal |
1 |
|
|
