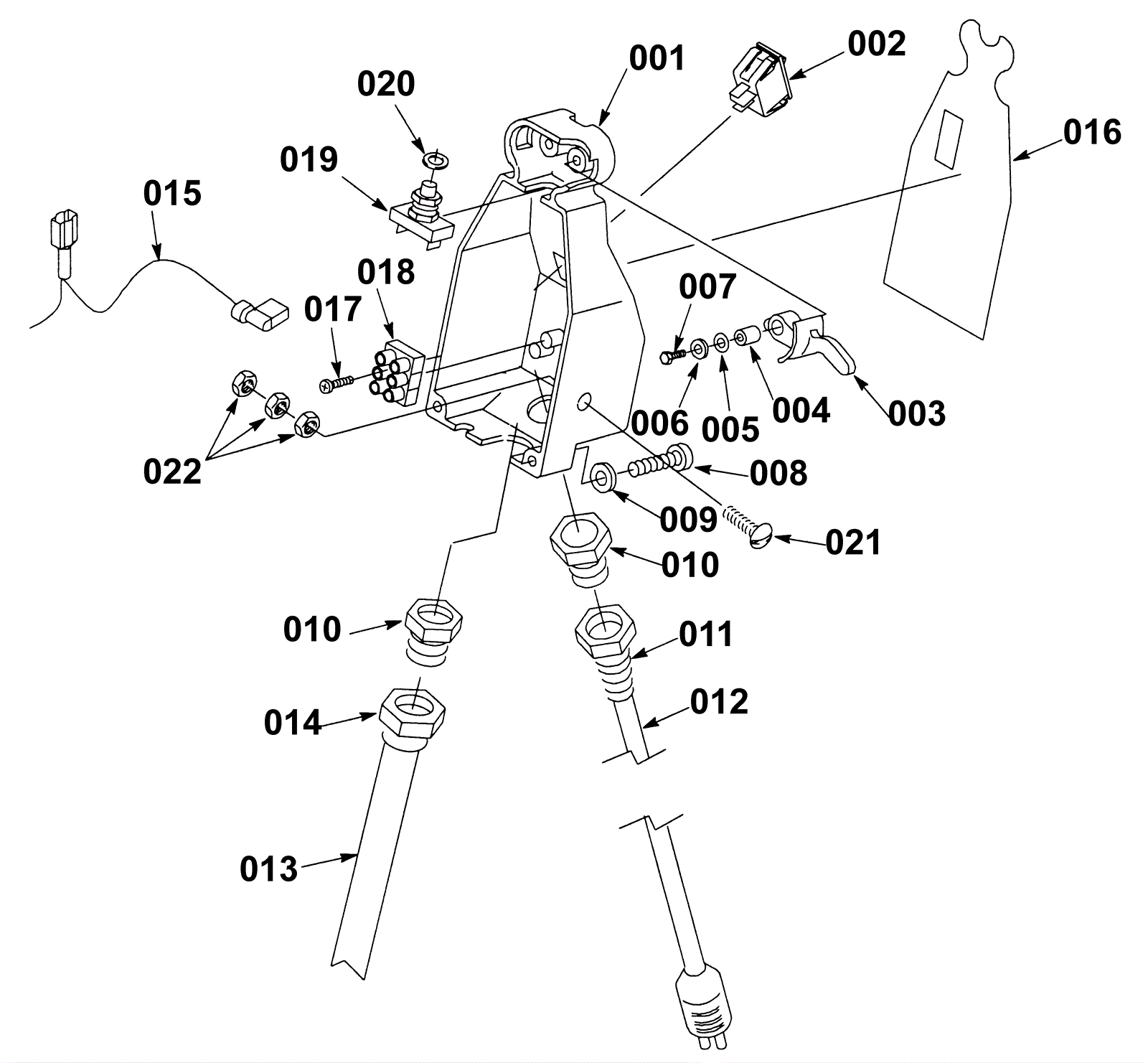

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-4459
|
Cover console |
1 |
|
|
002 |
175-0136
|
On/off rocker switch |
1 |
|
|
003 |
175-6383
|
Trigger arm (OBSOLETE) |
2 |
|
|
004 |
175-6384
|
Trigger spacer |
2 |
|
|
005 |
999-1115
|
Washer M4 flat zinc plated |
2 |
|
|
006 |
999-0479
|
Washer #4 internal star lock zinc plated |
2 |
|
|
007 |
999-0805
|
Bolt M3-.5 x 16mm hex head |
2 |
|
|
008 |
999-1085
|
Screw M5-.8 x 30mm pan head phillips zinc plated |
3 |
|
|
009 |
999-0053
|
Washer #10 split lock plain finish |
3 |
|
|
010 |
175-6158
|
Nut 1/2 conduit |
2 |
|
|
011 |
175-0340
|
Strain relief |
1 |
|
|
013 |
175-4462
|
Wire harness |
1 |
|
|
014 |
175-6124
|
Cord grip |
1 |
|
|
015 |
175-4466
|
Black assembly wire |
1 |
|
|
016 |
175-4467
|
Console cover decal |
1 |
|
|
017 |
175-6391
|
Screw 6 pan head self-tapping type 3 (OBSOLETE) |
2 |
|
|
018 |
175-0027
|
25amp terminal strip |
1 |
|
|
019 |
175-6400
|
Push button switch kit |
1 |
|
|
020 |
175-6386
|
Washer 1/2 flat spring disc zinc plated |
1 |
|
|
021 |
999-1028
|
Screw 10-24 x 3/4 truss head phillips stainless steel |
1 |
|
|
022 |
999-0356
|
Nut 10-24 lock stainless steel |
3 |
|
|
