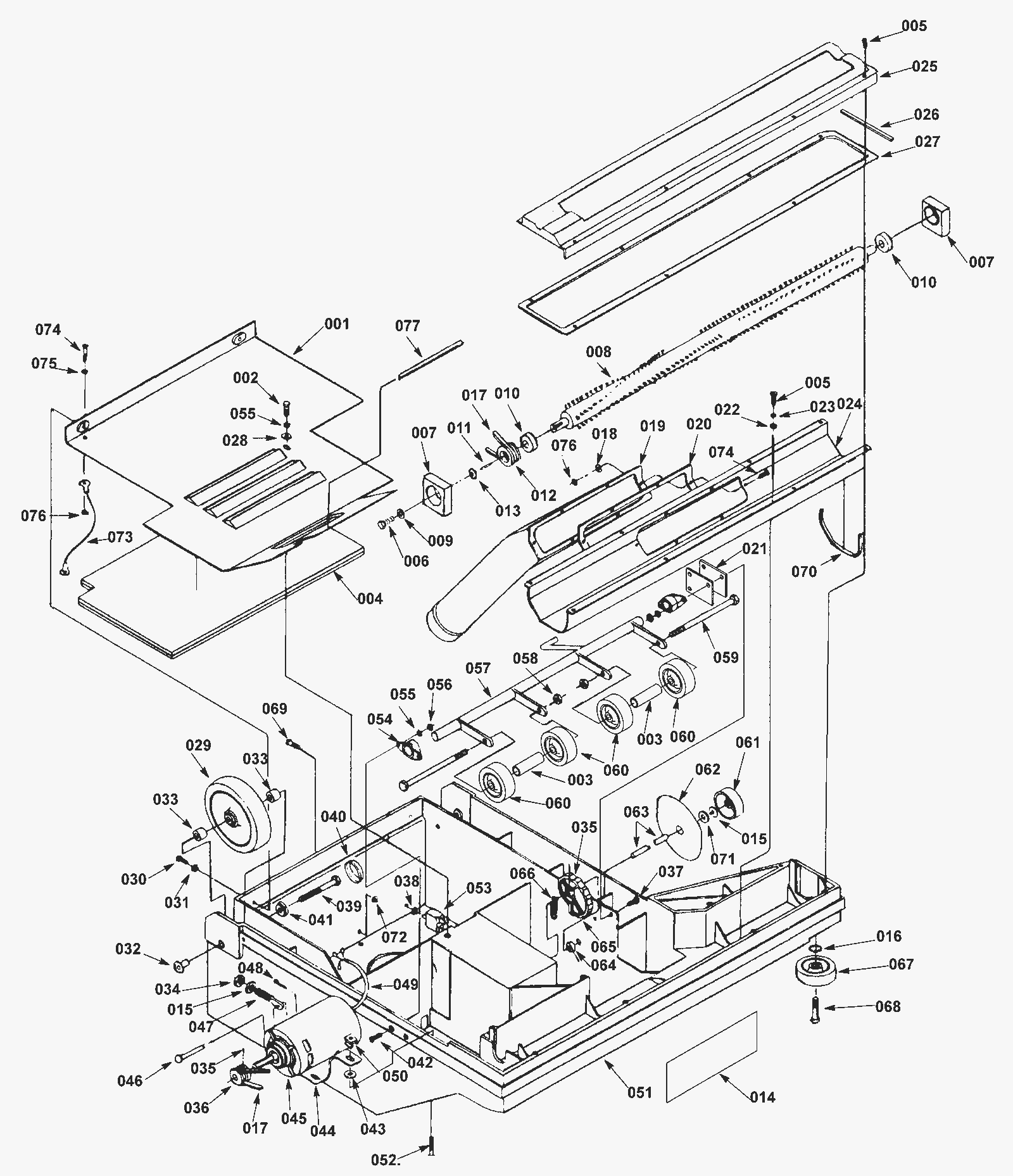

MAGNATWIN3000 608577 Lower Housing Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4468 Bottom cover plate $112.86 1 usually ships 5-16 days
002 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 1 ships same day
003 275-8028 Spacer 19/50 X 31/50 X 2 3/4 $6.93 2 usually ships 1-5 days
004 175-4470 Sound foam (OBSOLETE) $12.98 1 usually ships 5-16 days
005a 999-1040 Screw M3-.5 x 20mm pan head $0.99 10 ships same day
005b 175-4471 Brush assembly with left and right stubs $542.52 1 usually ships 5-16 days
006 999-0644 Bolt 1/4-20 x 1/2 hex head stainless steel $0.99 1 ships same day
007 175-4472 Bearing mount $32.78 2 ships same day
008 175-4010 30 inch brush assembly with pins $459.14 1 usually ships 5-16 days
009 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
010 175-0957 Brush bearing $12.98 2 usually ships 5-16 days
011 175-4476 Square keyway $3.96 1 usually ships 5-16 days
012 175-4477 Brush pulley $64.35 1 usually ships 5-16 days
013 999-1407 Washer 5/16 belleville $3.04 1 ships same day
014 175-1149 Nobles decal (OBSOLETE) $4.95 1 usually ships 5-16 days
015 999-0032 Washer 3/8 USS flat plain finish $2.42 2 ships same day
016 175-4479 O-ring $5.39 1 usually ships 5-16 days
017 175-4480 V-belt $40.81 1 usually ships 5-16 days
018 999-9089 Washer M4 flat stainless steel $0.99 6 ships same day
019 175-4481 Debris inlet $127.95 1 usually ships 1-5 days
020 175-4482 Debris inlet gasket $5.83 1 usually ships 5-16 days
021 275-8029 Reinforcing roller weldment bracket $8.25 2 usually ships 1-5 days
022 999-0250 Bolt M5-.8 x 10mm hex head full thread $0.99 2 ships same day
023 999-0051 Washer #6 medium split lock $0.99 2 ships same day
024 175-4483 Brush chamber $58.63 1 usually ships 5-16 days
025 175-4484 Skid $283.25 1 usually ships 5-16 days
026 275-8030 7 inch brush seal $18.81 2 usually ships 5-16 days
027 175-4486 Skid gasket (OBSOLETE) $29.15 1 usually ships 5-16 days
028 999-0006 Washer 3/16 flat zinc plated $0.99 1 ships same day
029 175-4488 Rear wheel $86.79 2 usually ships 5-16 days
030 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
031 999-0998 Washer #10 flat stainless steel $0.99 2 ships same day
032 175-4489 Bushing $6.27 2 usually ships 5-16 days
033 175-4490 Wheel spacer 9.5mm $5.06 4 usually ships 1-5 days
034 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
035 275-8031 Screw 8-32 X 1/2 socket set $3.30 2 usually ships 5-16 days
036 175-4493 Motor pulley $34.10 1 usually ships 1-5 days
037 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
038 999-9099 Washer M10 flat stainless steel $0.99 1 ships same day
039 175-4495 Screw 3/8-16 x 63.5mm $4.07 2 usually ships 1-5 days
040 175-1096 Wheel cap $3.30 2 usually ships 5-16 days
041 175-4496 Washer cap mount (OBSOLETE) $1.58 2 usually ships 1-5 days
042 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel $2.48 2 ships same day
043 175-1097 Washer flat stainless steel $4.73 4 ships same day
044 175-4497 Brush motor assembly (OBSOLETE) $366.85 1 usually ships 1-5 days
045 275-5083 Carbon brushes $382.80 1 usually ships 1-5 days
046 175-4498 Clevis pin (OBSOLETE) $2.24 1 usually ships 1-5 days
047 175-4499 Belt tension stud (OBSOLETE) $19.25 1 usually ships 1-5 days
048 175-3272 Cotter pin $2.42 1 usually ships 5-16 days
049 175-4501 Base wire harness $33.44 1 usually ships 1-5 days
050 175-4502 Nut $3.19 4 usually ships 1-5 days
051 175-4503 Lower frame (charcoal) $1,808.07 1 usually ships 1-5 days
052 175-4504 Screw 1/4-20 x 1 $1.54 4 usually ships 1-5 days
053 175-1408 7amp circuit breaker $48.07 1 usually ships 5-16 days
054 175-4505 Bearing $6.49 2 usually ships 1-5 days
055 999-0364 Washer #6 internal star lock zinc plated $0.99 6 ships same day
056 999-0439 Nut M6-1 hex coarse thread $0.99 5 ships same day
057 175-4506 Roller weldment $178.64 1 usually ships 1-5 days
058 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 2 ships same day
059 175-4508 Screw 3/8-16 x 5.5 inch grade 5 hex head $4.29 2 usually ships 5-16 days
060 991-2013 Wheel $8.50 4 ships same day
061 175-4510 Brush adjustment knob $36.08 1 usually ships 1-5 days
062 175-4511 Brush adjustment decal $14.52 1 usually ships 1-5 days
063 175-4512 Adjustment cam shaft $22.11 1 usually ships 1-5 days
064 175-4513 Collar shaft $7.81 1 usually ships 5-16 days
065 175-4514 Adjustment cam $50.82 1 usually ships 1-5 days
066 275-8032 Extension spring $9.90 1 usually ships 1-5 days
067 175-0117 Guide wheel with bushing $9.68 1 ships same day
068 175-4516 Screw M8 x 40mm $4.29 1 usually ships 5-16 days
069 999-0009 Screw 10-24 x 1 round head slotted zinc plated $0.99 1 ships same day
070 275-8030 7 inch brush seal $18.81 2 usually ships 5-16 days
071 175-1721 Washer 1/2 x 3/8 x 1/8 felt $4.84 1 usually ships 5-16 days
072 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
073 175-4519 Wire assembly (OBSOLETE) $1.32 1 usually ships 1-5 days
074 999-1042 Screw M4-1 x 12mm pan head phillips zinc $0.99 7 ships same day
075 999-1083 Washer #8 internal star lock stainless steel $0.99 1 ships same day
076 999-0954 Nut M4-.7 nylon insert lock stainless steel $0.99 7 ships same day
077 175-4521 Plastic bulk edging $4.62 1 usually ships 1-5 days
