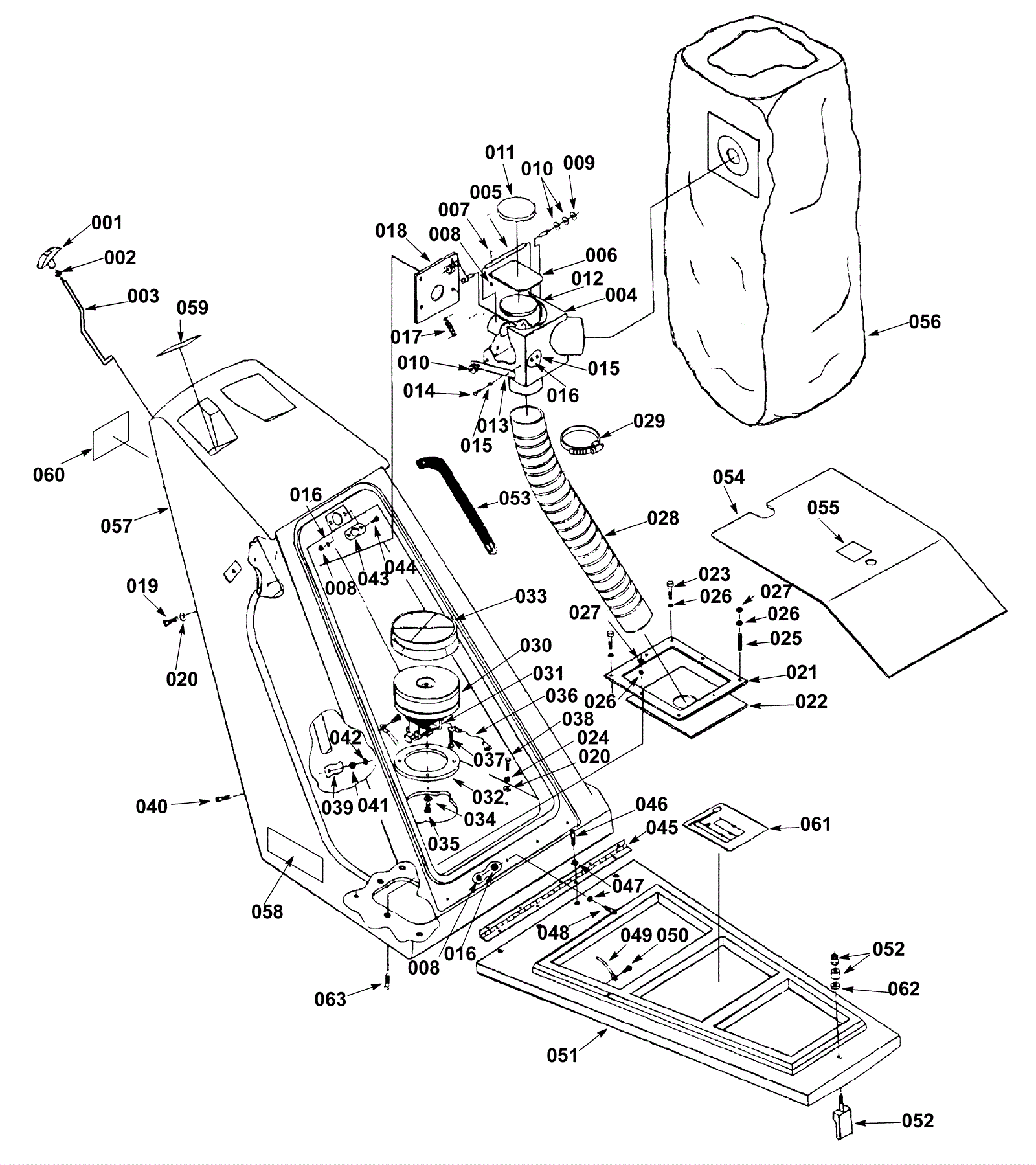

Upper Housing Assembly 1

#PartDescription ReqNotesAvailability
001 275-8018 Chamber rod knob 1
002 999-0181 Nut 1/4-20 hex jam plain finish 1
003 175-4528 Chamber rod 1
004 175-4529 Vacuum chamber 1
005 175-4530 Chamber adaptor rod 1
006 175-4531 Chamber adaptor plate 1
007 275-8019 Screw M04 X 12 mm 2
008 999-0954 Nut M4-.7 nylon insert lock stainless steel 9
009 275-8020 E-ring 1
010 999-9097 Washer M8 flat stainless steel 3
011 175-4535 Upper chamber gasket 1
012 175-4536 Lower chamber gasket 1
013 175-4537 Spring support 1
014 175-4538 Screw M4 x 20mm 1
015 999-0954 Nut M4-.7 nylon insert lock stainless steel 2
016 999-0250 Bolt M5-.8 x 10mm hex head full thread 8
017 175-4539 Chamber adaptor spring 1
018 175-4540 Chamber gasket 1
019 999-1080 Screw 1/4-20 x 5/8 truss head phillips stainless steel 4
020 999-0006 Washer 3/16 flat zinc plated 10
021 175-4541 Seal plate 1
022 175-4542 Seal 1
023 999-0779 Screw M6-1 x 25mm hex head plain finish 2
024 999-0364 Washer #6 internal star lock zinc plated 6
025 175-4543 Screw M6 x 30 set 1
026 999-1117 Washer M6 split lock stainless steel 8
027 999-0439 Nut M6-1 hex coarse thread 6
028 275-8021 Hose 3 X 23 inch (black) 1
029a 275-8022 4 inch hose clamp (OBSOLETE) 2
029b 175-4547 Vacuum motor with gasket 2
030 991-1206 120V 1 stage vacuum motor peripheral 2
031 175-0044 Carbon brush (pkg of 2) 2
032a 175-0249 Vacuum motor gasket 2
032b 175-0142 1/4 inch male terminal 4
033 991-5119 Vacuum motor filter 2
034 999-0998 Washer #10 flat stainless steel 8
035 175-4548 Screw 10-24 x 1 pan head phillips zinc 8
036 175-4549 Green wire assembly 2
037 175-4550 Ground screw 2
038 999-1312 Screw M6-1 x 20mm hex head stainless steel 6
039 275-8023 Clamp 1
040 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel 1
041 999-0006 Washer 3/16 flat zinc plated 1
042 999-0469 Nut M6-1 nylon insert lock zinc plated 1
043 175-4554 Latch plate 1
044 175-4555 Screw M4 x 16mm 2
045 175-4556 Hinge 1
046 999-0530 Screw M4-.7 x 8mm pan head slotted zinc 4
047 175-4557 Washer 9
048 175-0914 Screw pan head phillips 5
049 175-4558 Door cable 1
050 175-4559 Screw 16 mm 2
051 275-8024 Green cover 1
052 175-4561 Cover swell latch 1
053 175-4562 Door opening gasket 1
054 275-6251 Vacfan cover 1
055 175-4564 Warning vacuum fans decal 1
056a 175-4565 Vacuum cloth bag 1
056b 175-9637 Paper filter bag (pkg of 10) 1
057 275-8025 Green handle assembly (OBSOLETE) 1
058 275-8026 Warning label (OBSOLETE) 2
059 175-4568 Caution vacuum on decal 1
060 275-8006 Warning decal 1
061 275-8027 Electrical decal (OBSOLETE) 1
062 175-6139 Spacer 1
063 999-1224 Screw M6-1 x 20mm flat head phillips stainless steel 5
