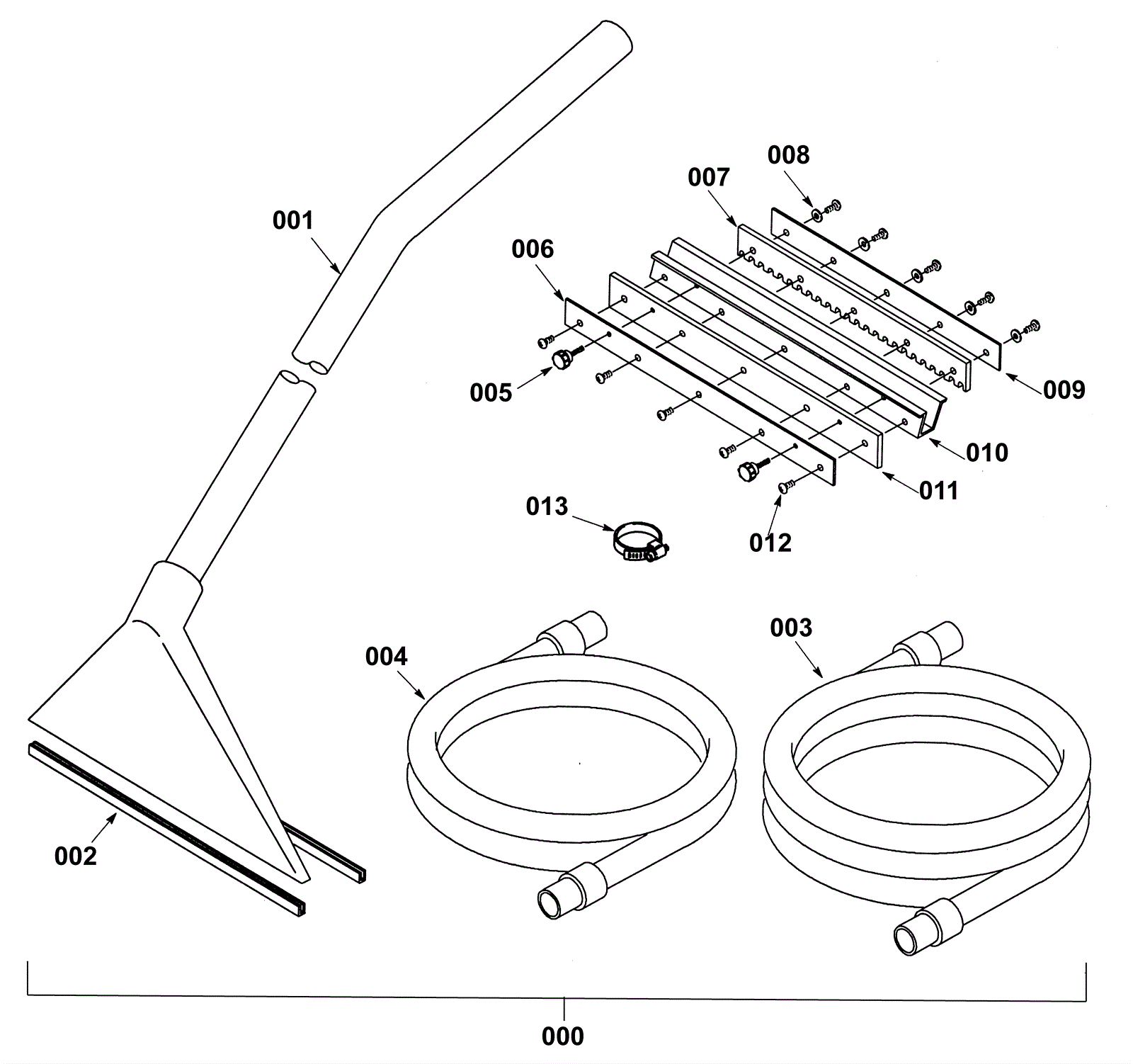

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
175-9808
|
Floor tool |
1 |
|
|
001 |
175-1316
|
13 inch floor tool |
1 |
|
|
002a |
175-1321
|
13 inch pick-up shoe plate stainless steel |
2 |
|
|
002b |
175-9809
|
Hose / Squeegee kit |
1 |
|
|
003 |
175-1325
|
Hose 25 feet x 1 1/2 inches with cuffs (OBSOLETE) |
1 |
|
|
004a |
175-1324
|
Hose 15 feet x 1 1/2 inches with cuffs |
1 |
|
|
004b |
175-9810
|
13 inch (330mm) squeegee assembly |
1 |
|
|
005 |
175-6050
|
Knob |
2 |
|
|
006 |
175-1318
|
Squeegee plate 15 inch |
1 |
|
|
007 |
175-1322
|
Squeegee blade 15 inch urethane |
1 |
|
|
008 |
999-0393
|
Washer 3/16 flat aluminum |
5 |
|
|
009 |
175-1323
|
Squeegee plate 13 inch |
1 |
|
|
010 |
175-1320
|
Squeegee channel 15 inch |
1 |
|
|
011 |
175-1319
|
Squeegee blade 15 inch gum rubber |
1 |
|
|
012 |
999-0811
|
Screw 10-32 x 3/8 pan head phillips stainless steel |
10 |
|
|
013 |
175-2057
|
Hose clamp |
1 |
|
|
N/S |
175-2646
|
Hose bag with draw string |
1 |
|
|
