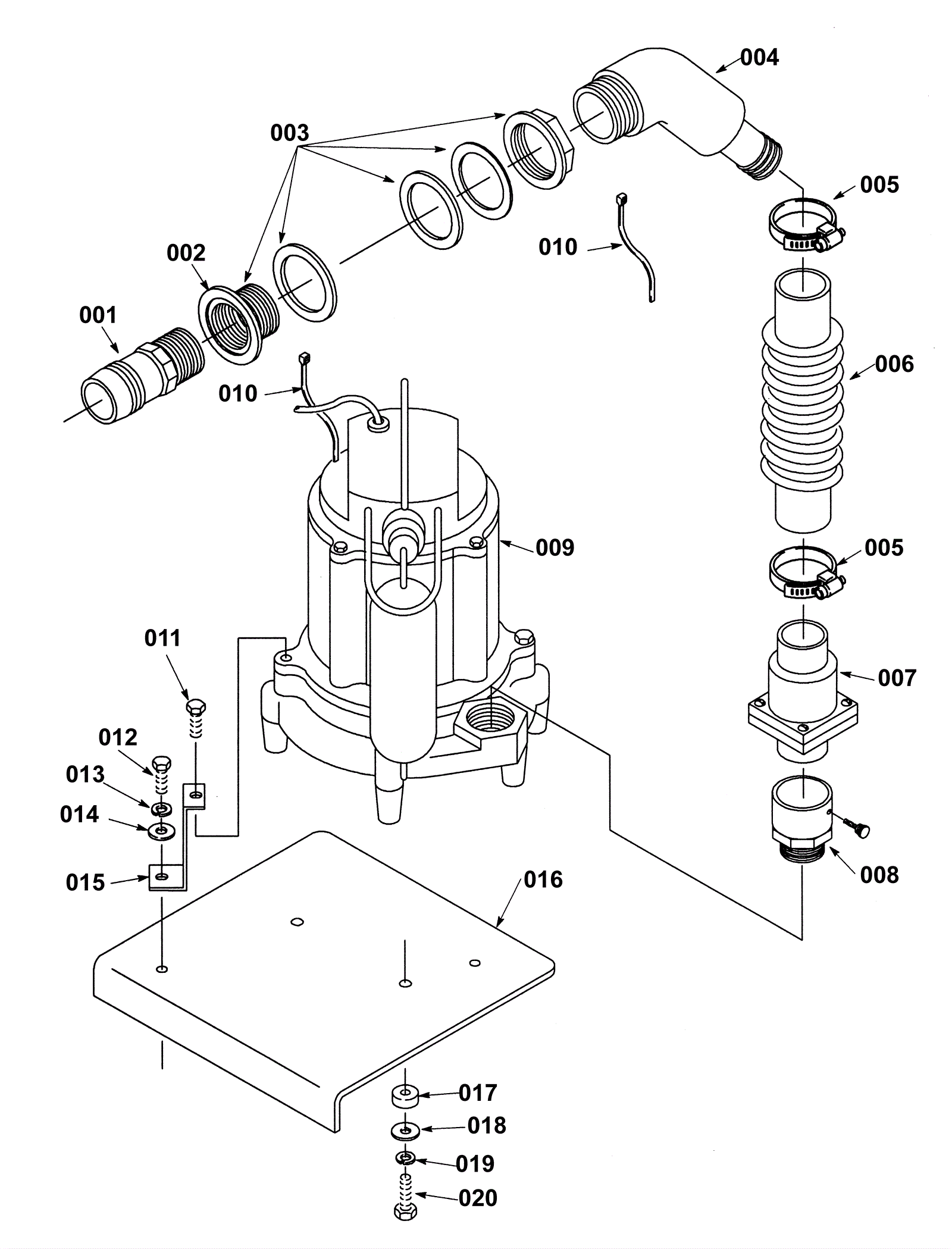

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
175-1286
|
Hose barb |
1 |
|
|
002 |
175-9801
|
Discharge decal |
1 |
|
|
003 |
175-1292
|
Inlet flange fitting |
1 |
|
|
004 |
175-9802
|
45 Degree elbow assembly |
1 |
|
|
005 |
175-2057
|
Hose clamp |
2 |
|
|
006 |
175-9803
|
Hose 1-5/8 x 6-5/16 |
1 |
|
|
007 |
175-1284
|
2 inch valve check |
1 |
|
|
008 |
175-1283
|
Pvc 1 1/2 inch male adapter |
1 |
|
|
009 |
175-9804
|
Discharge submersible pump |
1 |
|
|
010 |
175-0921
|
Wire tie |
2 |
|
|
011 |
999-0076
|
Bolt 1/2-20 x 1 hex head grade 5 plain finish |
2 |
|
|
012 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
|
|
013 |
999-0632
|
Washer 1/4 split lock stainless steel |
2 |
|
|
014 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
015 |
175-9805
|
Pump bracket |
2 |
|
|
016 |
175-9806
|
Pump plate |
1 |
Black |
|
017 |
175-9807
|
Washer 3/8 x 1 x 3/16 |
2 |
|
|
018 |
999-0024
|
Washer 5/16 flat stainless steel |
2 |
|
|
019 |
999-0553
|
Washer 5/16 medium split lock stainless steel |
2 |
|
|
020 |
999-0556
|
Bolt 5/16-18 x 3/4 hex head stainless steel |
2 |
|
|
