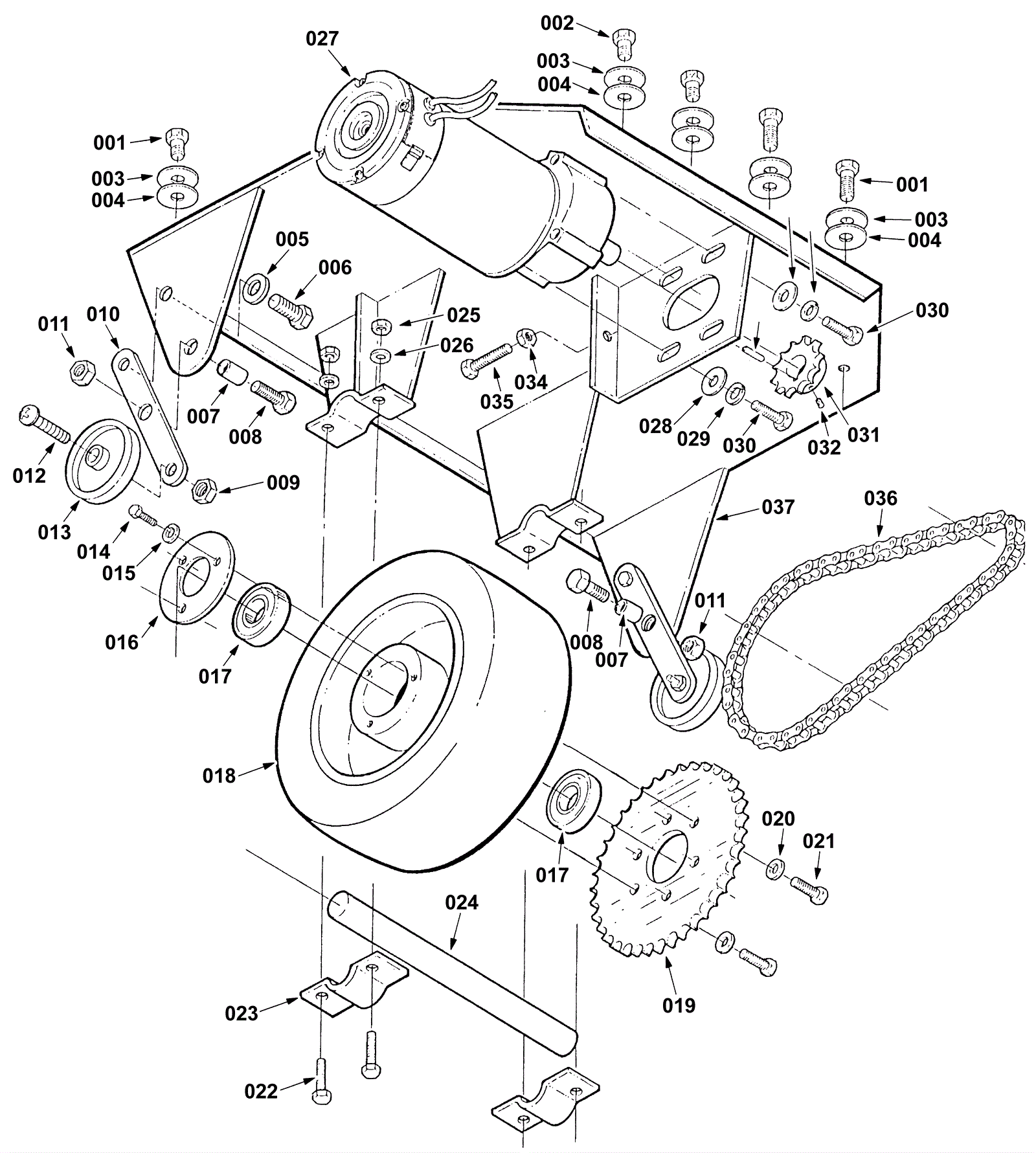

CONCORDE HP PLUS Drive Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
002 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
003 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 6 ships same day
004 999-0187 Washer 1/2 flat plain finish $0.99 6 ships same day
005 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
006 999-0547 Bolt 5/16-18 x 1/2 hex head stainless steel $0.99 2 ships same day
007 175-7422 5/8 Inch sleeve bushing $1.05 2 usually ships 5-16 days
008 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 2 ships same day
009 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 2 ships same day
010 175-7423 Black safety wheel plate $163.00 2 usually ships 1-5 days
011 999-0050 Nut 1/2-13 hex jam plain finish $0.99 2 ships same day
012 999-0399 Screw 5/16-18 x 3/4 pan head phillips zinc plated $0.99 2 ships same day
013 175-2775 Wheel 4 x 1 3/8 inch $33.50 2 ships same day
014 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 3 ships same day
015 999-0553 Washer 5/16 medium split lock stainless steel $0.99 9 ships same day
016 175-7424 Black wheel bearing retainer $11.00 1 usually ships 1-5 days
017 175-2781 Wheel bearing $30.80 2 usually ships 3-28 days
018 175-7524 Extension hose (OBSOLETE) $131.80 1 (Hose with handle has been discontinued) usually ships 5-16 days
019 175-7426 #40-48 Drive wheel sprocket $112.00 1 usually ships 1-5 days
020 999-0553 Washer 5/16 medium split lock stainless steel $0.99 6 ships same day
021 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 6 ships same day
022 999-0038 Bolt 3/8-16 x 1 hex head grade 5 zinc plated $1.87 4 ships same day
023 175-2784 Axle clamp $12.65 2 usually ships 1-5 days
024 175-2783 Drive wheel shaft $122.10 1 usually ships 5-16 days
025 999-0170 Nut 3/8-16 hex plain finish $0.99 4 ships same day
026 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
027a 175-7427 Electric drive motor $810.00 1 usually ships 1-5 days
027b 175-7428 Carbon brush kit (pkg. of 2) (OBSOLETE) $86.10 4 usually ships 1-5 days
028 999-0032 Washer 3/8 USS flat plain finish $2.42 3 ships same day
029 999-0034 Washer 3/8 split lock plain finish $1.82 3 ships same day
030 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.56 4 ships same day
031 175-2769 Sprocket (OBSOLETE) $114.00 1 usually ships 5-16 days
032 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 2 ships same day
033 N/A Not available Call for price 1 Stepped key usually ships 3-26 days
034 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
035 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel $2.31 1 ships same day
036 175-7429 #40 Nickle plated drive chain $86.20 1 usually ships 1-5 days
037 175-7430 Black wheel bracket assembly (OBSOLETE) $465.80 1 usually ships 1-5 days
