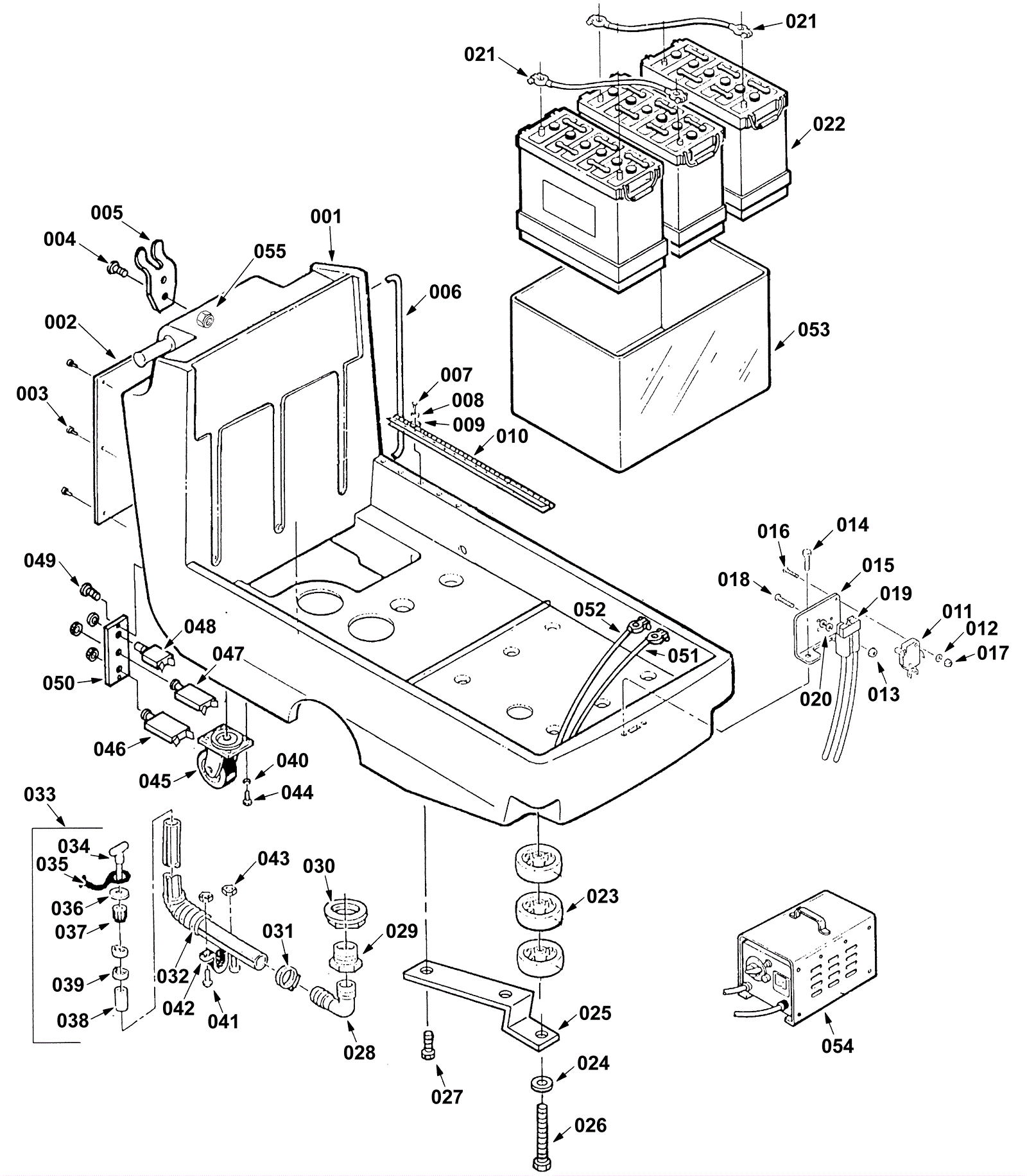

CONCORDE HP PLUS Main Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-9180 Chassis (OBSOLETE) $595.00 1 usually ships 1-5 days
002a 175-7377 Rear panel $63.60 1 usually ships 1-5 days
002b 275-1360 Warning decal $10.00 1 Not shown usually ships 5-16 days
003 175-7378 Knob $11.30 5 usually ships 1-5 days
004 999-0249 Screw 6-32 x 5/8 round head slotted zinc plated $0.99 2 ships same day
005 175-6069 Drain hose bracket $19.70 2 usually ships 5-16 days
006a 375-0078 10 1/2 foot PVC hose (clear) $15.10 1 usually ships 1-5 days
006b 175-7380 Gallon marker label $13.70 1 Not shown usually ships 1-5 days
007 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 9 ships same day
008 999-0016 Washer 1/4 flat plain finish $0.99 9 ships same day
009 999-0632 Washer 1/4 split lock stainless steel $0.99 9 ships same day
010 175-7381 Solution tank hinge $27.10 1 usually ships 1-5 days
011 175-1199 Snap switch $19.00 1 ships same day
012 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
013 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
014 999-1118 Screw 12 x 3/4 pan head phillips stainless steel sheet metal $0.99 2 ships same day
015 175-7382 Plug mount plate $50.90 1 usually ships 1-5 days
016 999-0738 Screw M3-.5 x 16mm pan head phillips zinc $0.99 2 ships same day
017 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
018 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
019 991-2105 SB50 50amp charger plug with pins (gray) $5.38 1 ships same day
020 999-1215 Washer #6 SAE flat zinc plated $0.99 2 ships same day
021 175-2659 Battery cable 15 inch x 6 gauge - clamp style $52.80 2 usually ships 5-16 days
023 175-7383 Black rubber bumper wheel (OBSOLETE) $34.70 6 usually ships 1-5 days
024 999-0187 Washer 1/2 flat plain finish $0.99 2 ships same day
025a 175-7384 Left bumper wheel bracket $43.30 1 usually ships 1-5 days
025b 175-7385 Right bumper wheel bracket $43.30 1 usually ships 1-5 days
026 999-1205 Screw 1/2-13 x 6 1/2 hex cap stainless steel $8.98 2 usually ships 1-5 days
027 175-9181 Bolt 5/16 x 1 lag (OBSOLETE) $2.16 4 usually ships 1-5 days
028 175-5126 Elbow fitting (OBSOLETE) $6.40 1 usually ships 1-5 days
029 175-7386 PVC adapter $9.20 1 usually ships 5-16 days
030 175-7387 Flange inlet with flats $38.00 1 usually ships 1-5 days
031 997-2007 Hose clamp $2.07 1 ships same day
032 175-7388 Drain hose $48.20 1 usually ships 1-5 days
033 175-6070 Drain plug assembly $75.90 1 Includes 034 to 039 usually ships 5-16 days
034 175-6071 Drain plug knob $14.70 1 usually ships 5-16 days
035 175-6072 Drain plug strap $16.00 1 usually ships 5-16 days
036 999-1446 Washer 3/8 x 1 1/2 fender stainless steel $0.99 1 ships same day
037 175-6073 Fitting $9.20 1 usually ships 5-16 days
038 175-6074 Drain hose sleeve $14.00 1 usually ships 5-16 days
039 175-1789 Hose clamp $4.50 2 ships same day
040 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel $0.99 8 ships same day
041 999-1029 Screw 10-24 x 5/8 truss head phillips stainless steel $0.99 2 ships same day
042 175-7389 Black hose support bracket (OBSOLETE) $16.00 1 usually ships 1-5 days
043 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
044 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 8 ships same day
045 175-2768 Swivel caster wheel $92.50 2 usually ships 1-5 days
046 175-2761 10amp circuit breaker $98.80 1 usually ships 5-16 days
047 175-7287 60amp circuit breaker $154.30 1 usually ships 5-16 days
048a 175-3132 10amp brush circuit breaker $25.90 1 usually ships 5-16 days
048b 991-8538 10amp circuit breaker $8.03 1 (NON-OEM) ships same day
049 999-0811 Screw 10-32 x 3/8 pan head phillips stainless steel $0.99 2 ships same day
050a 175-7390 Circuit breaker mount plate $15.00 1 usually ships 1-5 days
050b 175-7391 Main brush drive label $20.80 1 Not shown usually ships 1-5 days
051 175-7392 Red battery cable $28.80 1 usually ships 1-5 days
052 175-7393 Black battery cable $30.40 1 usually ships 1-5 days
053 175-7394 Battery box $135.10 1 usually ships 1-5 days
054 175-1204 36V 25amp battery charger with small SB50 gray plug $871.70 1 usually ships 5-16 days
055 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
022 162-0002 12V 185Ah wet battery (SNSR) $511.50 3 ships same day
022 162-0047 12V 215Ah AGM battery (Group J185) $907.50 3 ships same day
