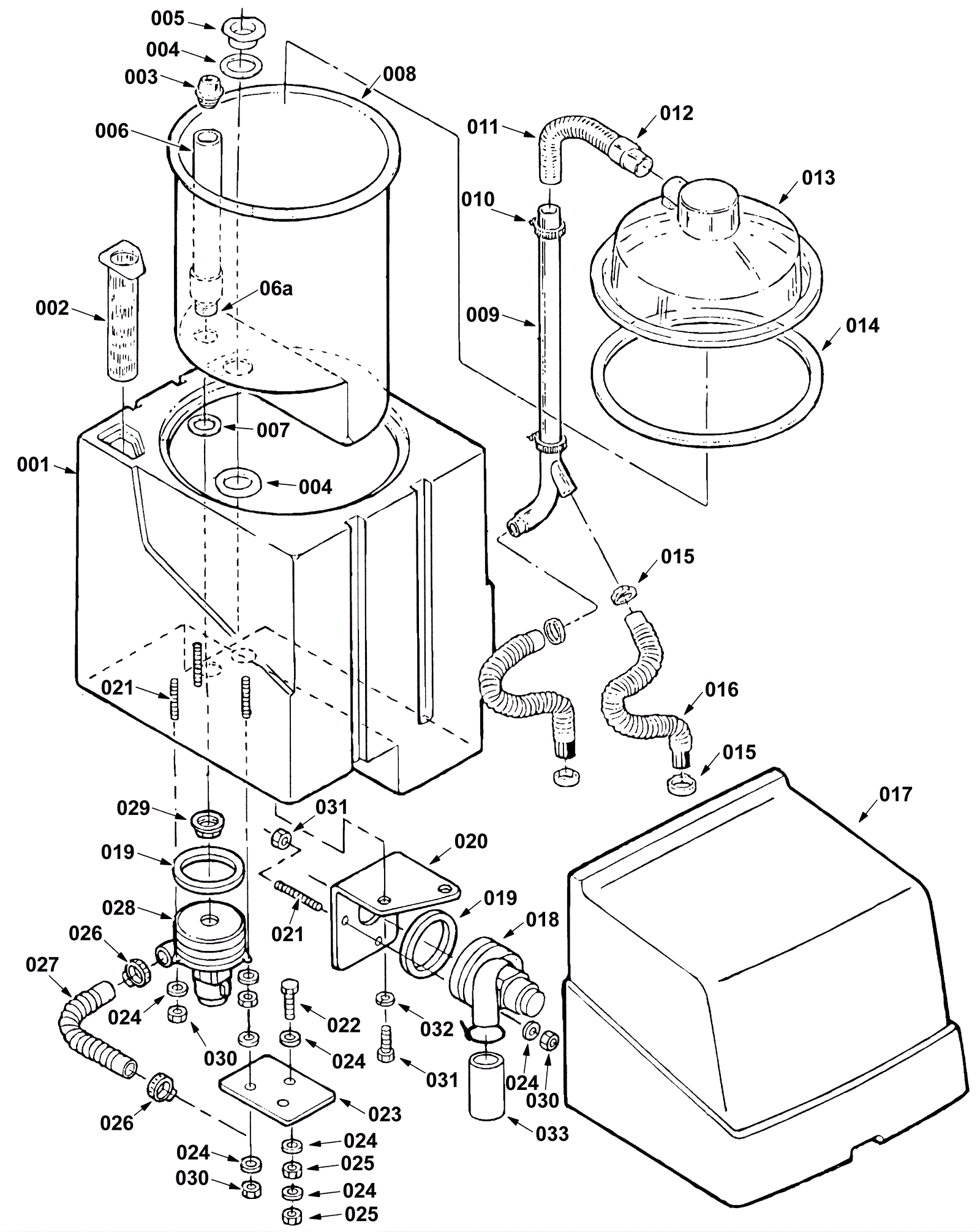

CONCORDE HP PLUS Upper Housing Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-9176 Tank solution (OBSOLETE) $840.90 1 Green usually ships 1-5 days
002 175-7402 Solution tank filter screen $82.90 1 usually ships 1-5 days
003 175-6261 Mesh filter screen $20.80 1 usually ships 5-16 days
004 175-7418 Inlet flange gasket (1 bag and 2 gaskets) $35.10 2 usually ships 1-5 days
005 175-7387 Flange inlet with flats $38.00 1 usually ships 1-5 days
006a 175-7403 Standpipe $10.30 1 usually ships 1-5 days
006b 175-2639 1 1/2 inch nipple fitting $19.20 1 usually ships 5-16 days
007 175-2640 Gasket $3.90 1 ships same day
008 175-9177 Recovery tank (OBSOLETE) $409.30 1 Green usually ships 1-5 days
009 175-7405 Black inlet tube (OBSOLETE) $174.60 1 usually ships 1-5 days
010 175-2057 Hose clamp $5.10 2 usually ships 1-5 days
011 175-7406 Black vacuum hose (10.25 feet required) $6.60 1 usually ships 1-5 days
012 175-6269 1 1/2 inch hose cuff (OBSOLETE) $31.30 1 usually ships 5-16 days
013 N/A Not available Call for price 1 Vacuum cover usually ships 3-26 days
014 175-6293 Dome and tank gasket $103.70 1 usually ships 1-5 days
015 175-4580 Vacuum hose clamp $6.10 4 usually ships 5-16 days
016 175-7407 Drain hose (black) (OBSOLETE) $24.50 2 usually ships 1-5 days
017 175-9178 Hood cover (OBSOLETE) $313.40 1 Green usually ships 1-5 days
018a 175-7409 36V vacuum motor with snout $883.00 1 usually ships 1-5 days
018b 175-5182 Carbon brush (sold individually) $27.20 2 usually ships 5-16 days
019 175-2657 Vacuum motor gasket $4.80 2 usually ships 5-16 days
020 175-7410 Vacuum mount plate (OBSOLETE) $56.00 1 usually ships 1-5 days
021 175-6078 Stud 1/4-20 x 5 inch full threaded $4.40 6 usually ships 5-16 days
022 999-0076 Bolt 1/2-20 x 1 hex head grade 5 plain finish $1.76 2 ships same day
023 175-7411 Connector plate (OBSOLETE) Call for price 1 usually ships 1-5 days
024 999-0016 Washer 1/4 flat plain finish $0.99 12 ships same day
025 999-0015 Nut 1/4-20 k-lock zinc plated $0.99 2 ships same day
026 175-2057 Hose clamp $5.10 2 usually ships 1-5 days
027 175-7412 Vacuum hose (OBSOLETE) $25.70 1 usually ships 1-5 days
028a 175-5728 Vacuum motor (OBSOLETE) $273.40 1 usually ships 1-5 days
028b 175-5182 Carbon brush (sold individually) $27.20 2 usually ships 5-16 days
029 175-2907 Nut 1 1/2 flanged hex $6.00 1 usually ships 5-16 days
030 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
031 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
032 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
033 175-2979 Vacuum exhaust muffler $28.50 1 ships same day
N/S 175-5873 Oval nobles decal (OBSOLETE) $5.10 1 usually ships 1-5 days
N/S 175-7415 Battery charge label $12.80 1 usually ships 1-5 days
N/S 175-7416 Foam warning label $98.80 1 usually ships 1-5 days
N/S 175-7417 Full line label $12.10 1 usually ships 1-5 days
N/S 175-9179 Concorde HP plus decal (Tennant Industrial) (OBSOLETE) $191.72 2 usually ships 1-5 days
