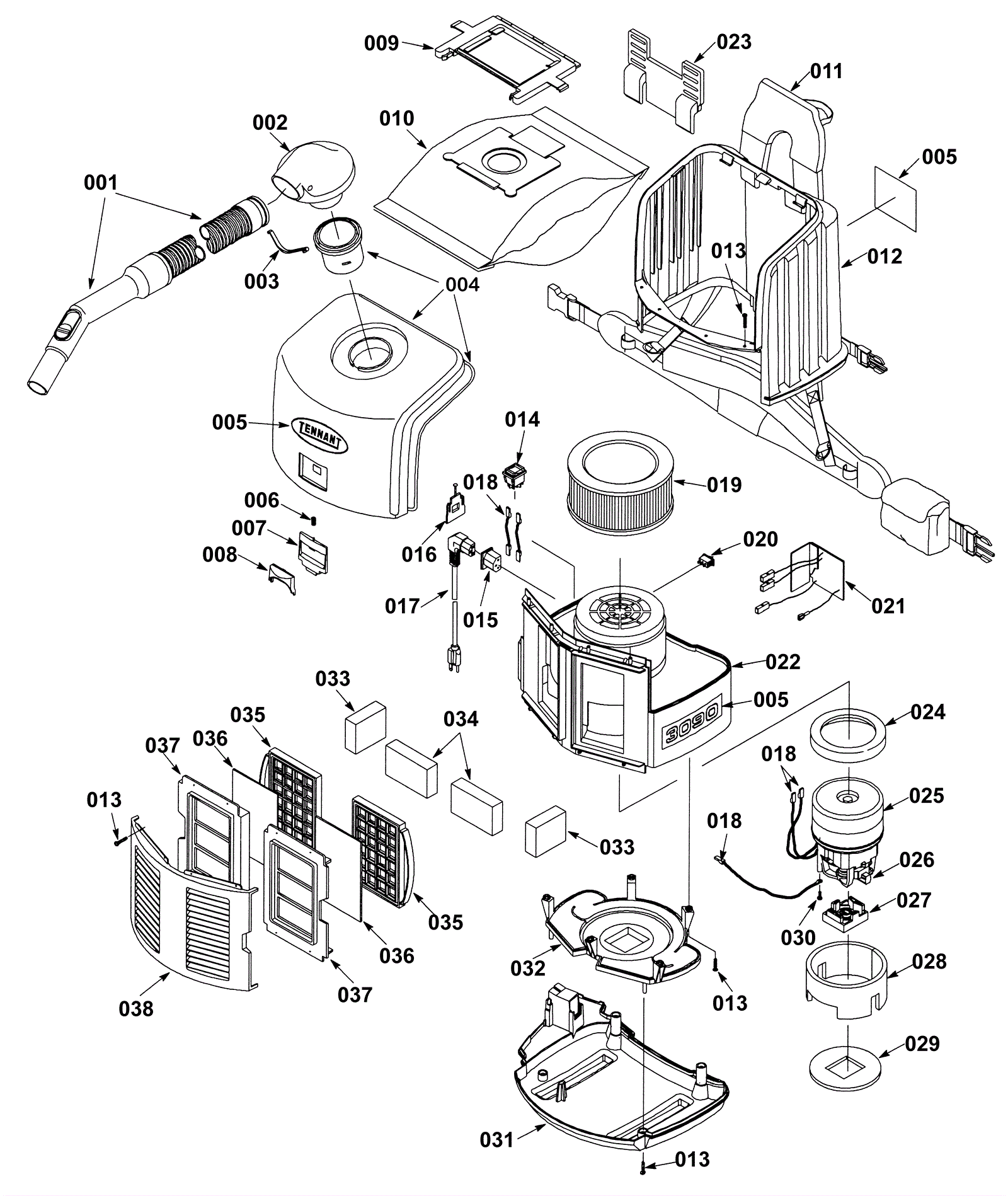

3090 Entire Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-9879 Hose with grip $93.06 1 usually ships 5-16 days
002 175-9880 Swivel elbow $29.26 1 usually ships 1-5 days
003 175-9881 Elbow clip $50.60 1 usually ships 1-5 days
004 175-9882 Top cover assembly $107.03 1 usually ships 1-5 days
005 175-9883 Decal kit $61.16 1 usually ships 1-5 days
006 175-9884 Spring $2.38 1 usually ships 1-5 days
007 175-9885 Latch cover $5.50 1 usually ships 1-5 days
008 175-9886 Latch handle $47.41 1 usually ships 1-5 days
009 175-9887 Paper filter support $32.23 1 usually ships 5-16 days
010 175-6722 Paper vacuum bags (pkg of 10) (OBSOLETE) $36.52 1 usually ships 5-16 days
011 175-9888 Back pack harness $100.21 1 usually ships 1-5 days
012 175-9889 Back pack body $42.44 1 usually ships 1-5 days
013 175-9890 Screw $2.77 23 usually ships 1-5 days
014 175-9891 On/off switch $7.04 1 usually ships 1-5 days
015 175-9892 Cord receptacle $6.66 1 usually ships 1-5 days
016 175-9893 Retainer clip $5.50 1 usually ships 1-5 days
018 175-9895 Wire assembly $3.04 1 usually ships 1-5 days
019 175-4413 Hepa filter $76.89 1 usually ships 5-16 days
020 175-9897 Hi-lo switch $5.50 1 usually ships 1-5 days
021 175-9898 Circuit board assembly (OBSOLETE) $22.22 1 usually ships 1-5 days
022 175-9899 Back pack base $102.63 1 usually ships 1-5 days
023 175-9900 Adjustment bracket $10.56 1 usually ships 1-5 days
024 175-9901 Motor seal $6.38 1 usually ships 1-5 days
025 175-3607 120V vacuum motor (OBSOLETE) $273.90 1 (includes 026) usually ships 5-16 days
026 175-4442 Carbon brush $42.79 1 usually ships 5-16 days
027 175-9903 Motor support $7.70 1 usually ships 1-5 days
028 175-9904 Motor foam filter $6.27 1 usually ships 1-5 days
029 175-9905 Base exhaust filter (OBSOLETE) $2.24 1 usually ships 1-5 days
030 175-9906 Ground screw $1.06 1 usually ships 1-5 days
031 175-9907 Back pack bottom $32.23 1 usually ships 1-5 days
032 175-9908 Motor cover $38.94 1 usually ships 1-5 days
033 175-9909 Sound side foam (OBSOLETE) $4.75 2 usually ships 1-5 days
034 175-4449 Middle silencer air guide $9.79 2 usually ships 1-5 days
035 175-9911 Filter holder $26.07 2 usually ships 5-16 days
037 175-9913 Filter frame (OBSOLETE) $7.92 2 usually ships 1-5 days
038 275-5786 Air grill $15.29 1 usually ships 5-16 days
