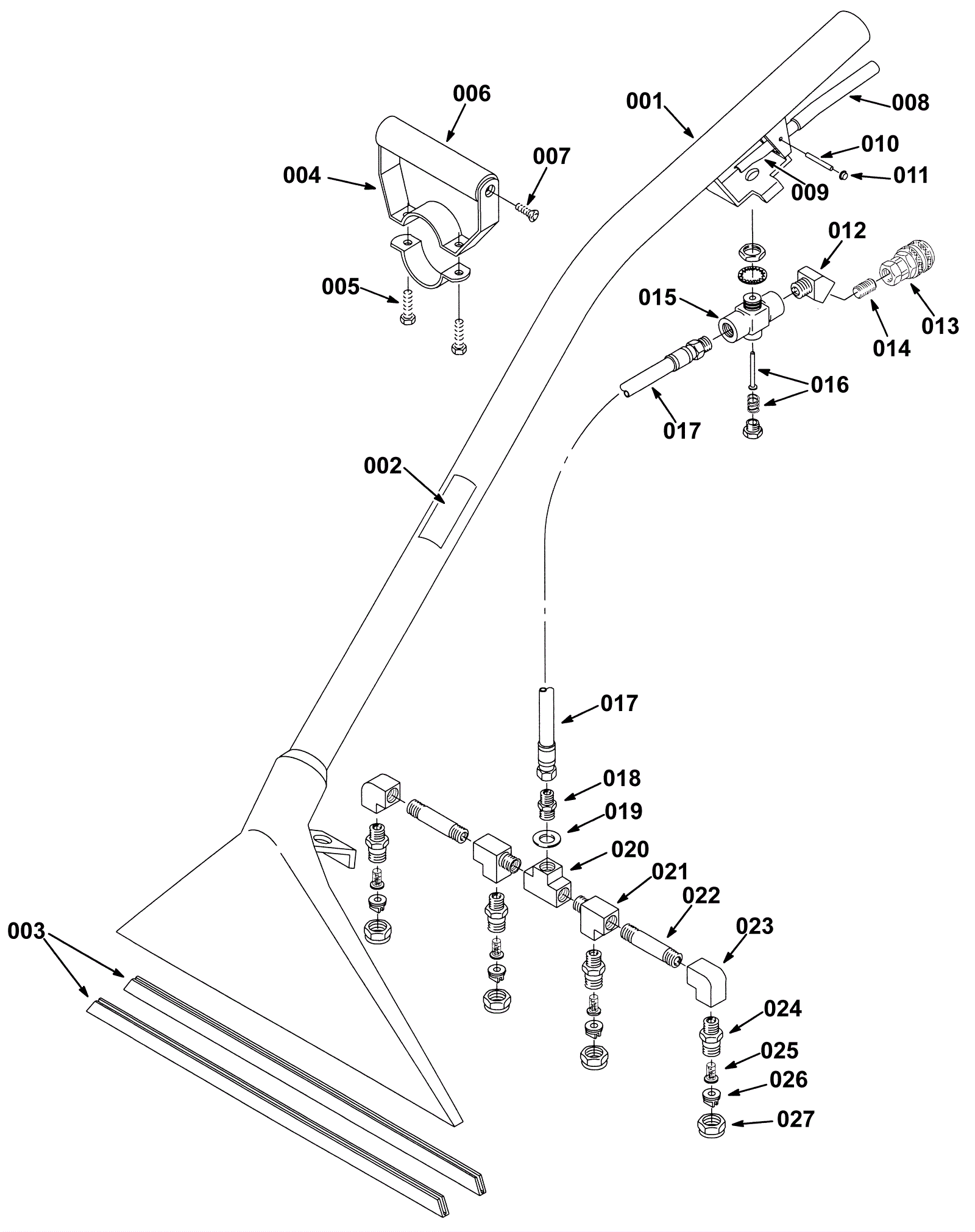

16 inch Low Pressure Tool

#PartDescription ReqNotesAvailability
000 175-4314 16 inch low pressure wand assembly 1 Includes 001-027
001 175-4299 16 inch floor tool 1 Included in 000
002 175-3564 Low pressure tool decal 1 Included in 000
003 175-6146 16 inch pick-up shoe plate stainless steel 2 Included in 000
004 175-1812 Handle assembly (OBSOLETE) 1 Includes 005-007 and Included in 000
005 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2 Included in 004 and Included in 000Included in 000
006 175-1813 Foam grip 1 Included in 004 and Included in 000
007 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel 2 Included in 004 and Included in 000
008 175-1816 Handle sleeve 1 Included in 000
009 175-1815 Trigger 1 Included in 000
010 175-1817 Handle pin 1 Included in 000
011 175-1818 Nut 1/4 push 2 Included in 000
012 175-6031 Straight jet fitting 1 Included in 000
013 175-1833 T-jet tip fitting 1 Included in 000
014 175-6244 Nipple 1 Included in 000
015 175-1819 Manual valve assembly 1 Includes 016 and Included in 000
016 175-1820 Valve pin and spring kit 1 Included in 015 and Included in 000
017 175-3565 Solution hose assembly 1 Included in 000
018 175-6239 1/4 inch nipple 1 Included in 000
019 175-1825 Washer 1 Included in 000
020a 175-4313 Spray bar without tips for 16 inch wand 1 Includes 020b-024 and Included in 000
020b 175-6253 1/4 inch brass tee 1 Included in 020a and Included in 000
021 175-6029 Straight tee 2 Included in 020a and Included in 000
022 175-6015 Nipple 2 Included in 020a and Included in 000
023 175-6248 90 degree elbow 2 Included in 020a and Included in 000
024 175-1830 1/4 inch male spray body 4 Included in 020a and Included in 000
025 175-1802 Mesh screen filter 4 Included in 000
026 175-3566 T-jet tip fitting 4 Included in 000
027 175-1834 Spray nozzle cap 4 Included in 000
