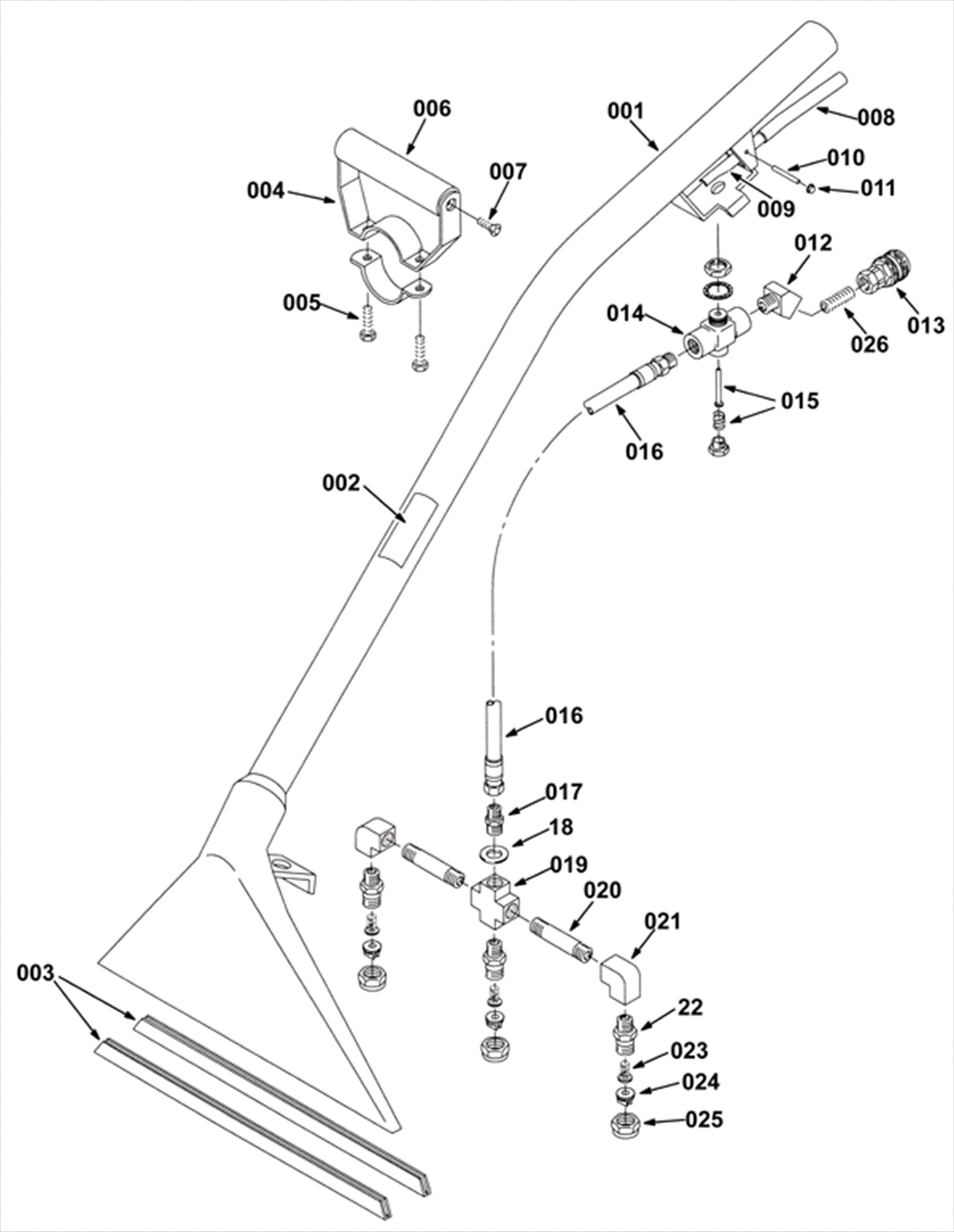

13 inch Low Pressure Tool

#PartDescription ReqNotesAvailability
000 775-0395 13 inch low pressure wand assembly 1 Includes 001-026
001 175-1810 13 inch floor tool 1 Included in 000
002 175-3564 Low pressure tool decal 1 Included in 000
003 175-1321 13 inch pick-up shoe plate stainless steel 2 Included in 000
004 175-1812 Handle assembly (OBSOLETE) 1 Includes 005-007 and Included in 000
005 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel 2 Included in 004 and Included in 000
006 175-1813 Foam grip 1 Included in 004 and Included in 000
007 999-0990 Screw 1/4-20 x 5/8 flat head phillips stainless steel 2 Included in 004 and Included in 000
008 175-1816 Handle sleeve 1 Included in 000
009 175-1815 Trigger 1 Included in 000
010 175-1817 Handle pin 1 Included in 000
011 175-1818 Nut 1/4 push 2 Included in 000
012 175-6031 Straight jet fitting 1 Included in 000
013 991-8158 1/4 inch BH2-60 female coupler (mate to QD40) 1 Included in 000
014 175-1819 Manual valve assembly 1 Includes 015 and Included in 000
015 175-1820 Valve pin and spring kit 1 Included in 014 and Included in 000
016 175-3565 Solution hose assembly 1 Included in 000
017 175-6239 1/4 inch nipple 1 Included in 000
018 175-1825 Washer 1 Included in 000
019a 175-1826 Spray bar without tips for 13 inch wand 1 Includes 019b-022 and Included in 000
019b 175-1829 Tee fitting 1 Included in 019a and Included in 000
020 175-6015 Nipple 2 Included in 019a and Included in 000
021 175-6248 90 degree elbow 2 Included in 019a and Included in 000
022 175-1321 13 inch pick-up shoe plate stainless steel 3 Included in 019a and Included in 000
023 175-1802 Mesh screen filter 3 Included in 000
024 175-3566 T-jet tip fitting 3 Included in 000
025 175-1834 Spray nozzle cap 3 Included in 000
026 175-6244 Nipple 1 Included in 000
