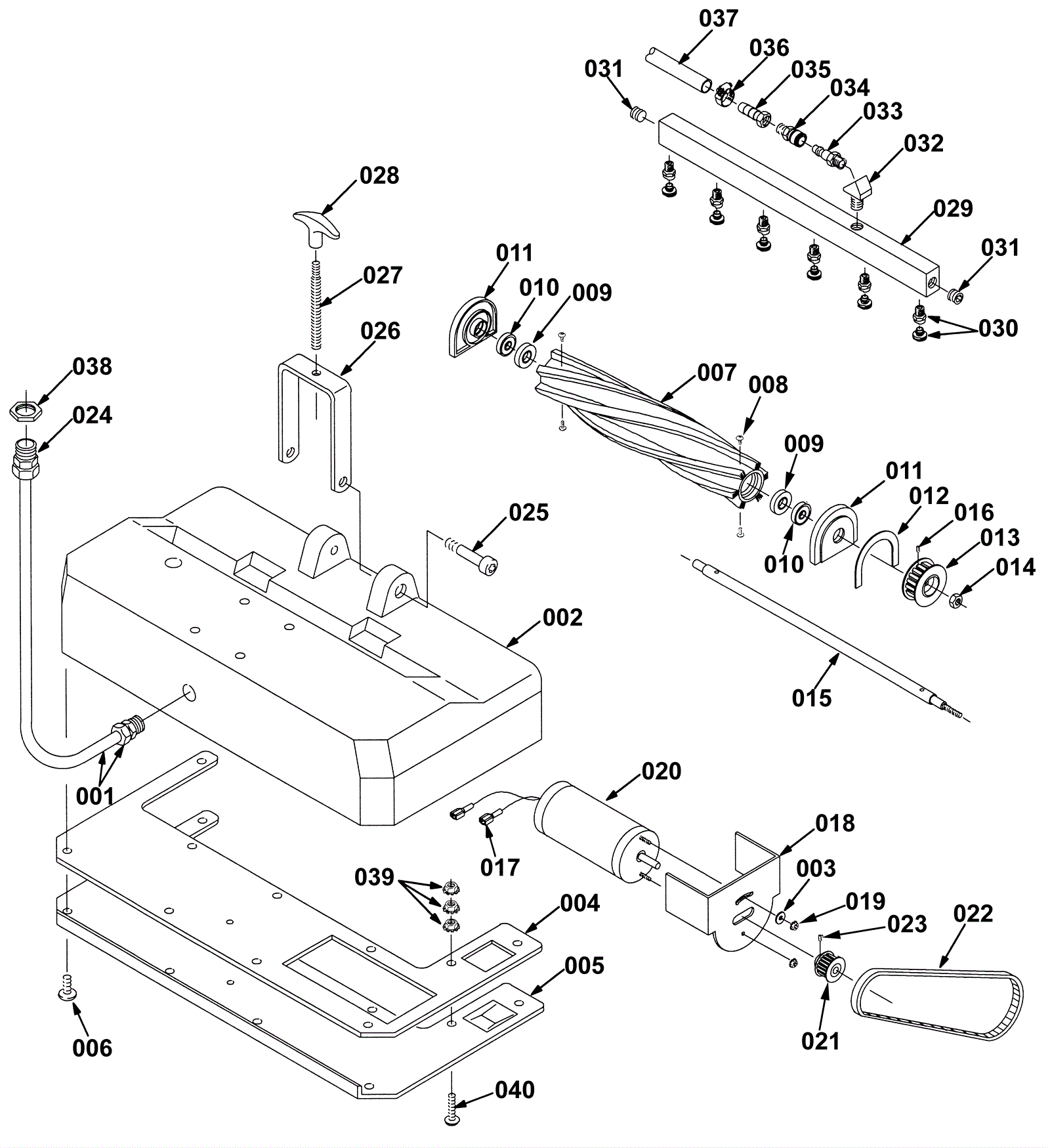

FALCON 2800 PLUS Brush Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4315 18/3 cord 36 inch $20.02 1 usually ships 1-5 days
002 175-8083 Base 22 inch (black) $271.92 1 usually ships 1-5 days
003 175-0803 SPRING, EXTN, 1.69OD 0.20WIR 09.5L (Tennant Industrial) $42.51 1 usually ships 10-16 days
004 175-4317 Base plate gasket $108.68 1 usually ships 10-16 days
005 175-4818 Base plate $202.51 1 usually ships 10-16 days
006 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 11 ships same day
007a 175-4023 Brush assembly with bearings - CYLINDRICAL $457.93 1 Includes 007b-016 usually ships 10-16 days
007b 175-4319 Brush - CYLINDRICAL $247.72 1 Included in 007a usually ships 10-16 days
008 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 4 Included in 007a usually ships 12-18 days
009 175-6134 Brush bearing seal $18.37 2 Included in 007a usually ships 10-16 days
010a 175-0069 Brush bearing $20.02 2 Included in 007a (OEM) ships same day
010b 991-5125 Brush bearing $17.76 2 (NON-OEM) ships same day
011 175-6133 Bearing block $10.56 2 Included in 007a usually ships 10-16 days
012 175-6143 Bearing block gasket $5.83 1 Included in 007a ships same day
013 175-4321 Brush pulley $93.39 1 Included in 007a usually ships 10-16 days
014 999-1019 Nut 5/16-18 hex jam stainless steel $0.99 1 Included in 007a ships same day
015 175-4322 Brush shaft $155.32 1 Included in 007a usually ships 10-16 days
017 175-0923 Male terminal $5.28 2 usually ships 10-16 days
018 175-4324 Brush motor bracket $60.83 1 usually ships 10-16 days
019 999-0239 Nut 10-32 k-lock zinc plated $0.99 2 ships same day
020a 175-6131 120V brush motor $316.03 1 ships same day
020b 175-1266 Carbon brush (sold individually) $126.50 1 usually ships 1-5 days
021 175-4326 Motor pulley $71.61 1 usually ships 10-16 days
022 175-4327 Timing belt $51.26 1 usually ships 10-16 days
023 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish $0.99 1 ships same day
024 175-6232 Cord grip $10.56 1 usually ships 10-16 days
025 175-6156 Screw 3/8 x 3/4 shoulder $5.50 2 usually ships 10-16 days
026 175-6183 Brush height adjustment bracket $28.38 1 usually ships 1-5 days
027 175-8084 3 1/2 inch height adjustment stud $16.94 1 usually ships 1-5 days
028 175-6113 Height adjustment knob $10.34 1 usually ships 10-16 days
029a 175-4873 Spray bar assembly $520.30 1 Includes 029b-033 usually ships 10-16 days
029b 175-1786 22 inch spraybar $90.75 1 Included in 029a usually ships 10-16 days
030a 175-6118 Spray tip assembly $83.49 6 Included in 029a ships same day
030b 175-3535 Brass spray tip $31.35 1 Included in 029a ships same day
030c 175-8085 Spray nozzle seal $32.23 1 Included in 029a usually ships 10-16 days
031 175-6121 Brass plug $5.28 2 Included in 029a ships same day
032 175-6041 Elbow 1/8 x 1/8 inch $6.49 1 Included in 029a usually ships 10-16 days
033 175-1684 Quick disconnect fitting $23.54 1 Included in 029a usually ships 10-16 days
034 175-1652 1/8 inch female brass quick coupler $38.50 1 ships same day
035 175-3529 Brass fitting $5.50 1 usually ships 10-16 days
036 175-6081 Hose clamp $4.84 1 ships same day
037 175-4306 PVC braided hose 1/4 ID 1/2 OD x 24 inch (gray) (OBSOLETE) $10.78 1 usually ships 10-16 days
038 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 1 ships same day
039 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
040 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
