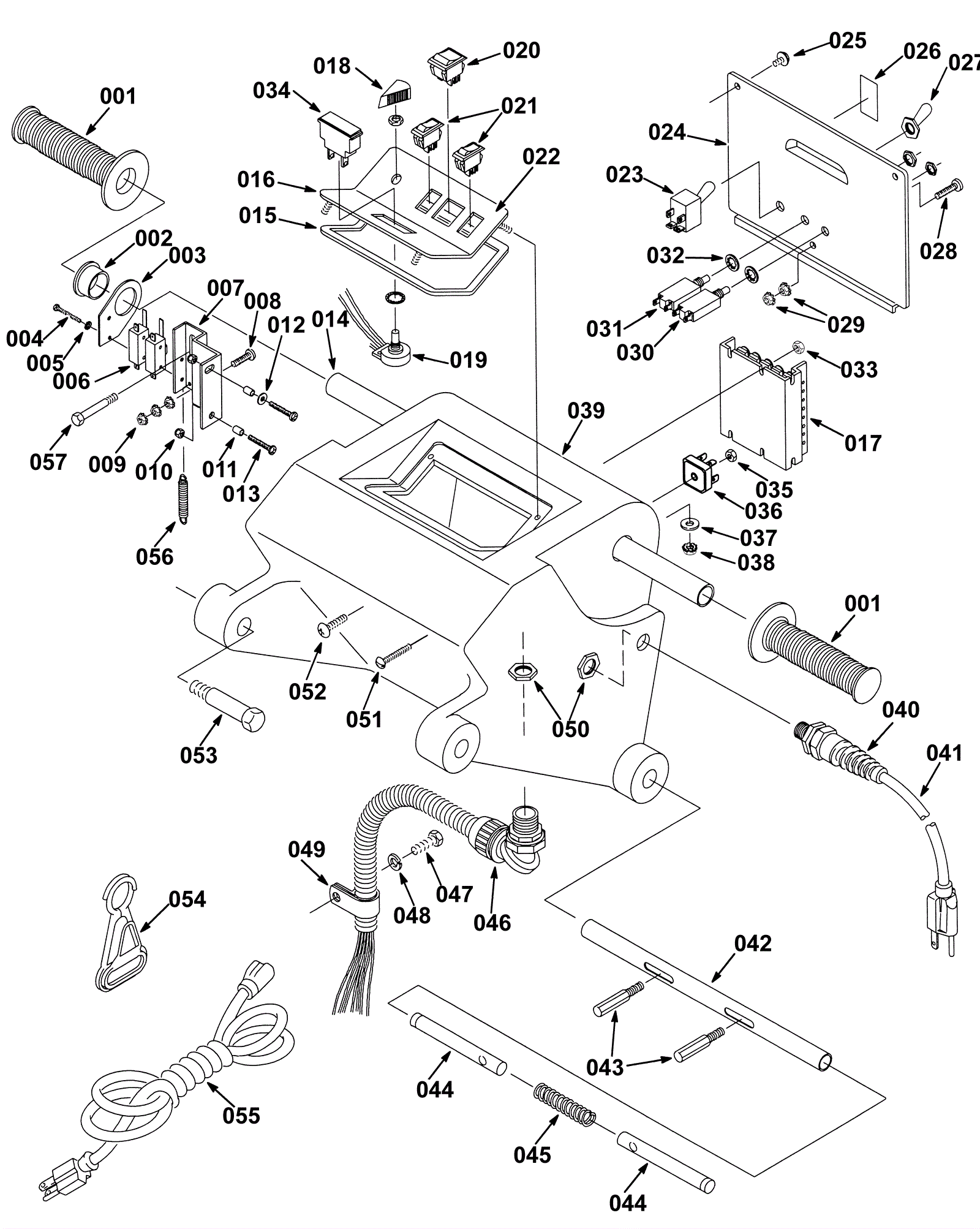

FALCON 2800 PLUS Control Console Assembly

#PartDescriptionPriceReqNotesAvailability
001a 175-2703 Handle grip $4.07 2 ships same day
001b 991-8571 Handle grip $2.91 2 ships same day
002 175-3093 Flanged bushing $3.96 1 usually ships 5-16 days
003 175-3115 Switch bracket $7.26 1 usually ships 1-5 days
004 999-1157 Screw 6-32 x 1 5/8 pan head phillips zinc $0.99 2 ships same day
005 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
006a 175-3116 Snap switch $13.75 2 usually ships 5-16 days
006b 991-5121 Charger interlock switch $13.75 2 (NON-OEM) ships same day
007 175-3117 Switch mount $23.21 1 usually ships 1-5 days
008 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
009 999-0356 Nut 10-24 lock stainless steel $0.99 3 ships same day
010 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
011 175-8077 Nylon spacer $3.41 2 usually ships 5-16 days
012 999-0016 Washer 1/4 flat plain finish $0.99 1 ships same day
013 999-0366 Screw 1/4-20 x 1 1/2 round head slotted zinc plated $0.99 2 ships same day
014 175-3094 Handle tube $81.40 1 usually ships 5-16 days
015 175-2696 Console gasket $5.61 1 usually ships 1-5 days
016 175-1784 Control panel 120 volt $42.57 1 usually ships 1-5 days
017 175-8076 Control board $475.97 1 Includes 018-019 usually ships 5-16 days
018 175-8075 Speed control knob (OBSOLETE) $11.11 1 Included in 017 usually ships 1-5 days
019 175-2715 Potentiometer kit (OBSOLETE) $140.14 1 Included in 017 usually ships 5-16 days
020 175-0006 Rocker switch $15.29 1 usually ships 5-16 days
021 175-0005 Rocker switch $11.77 2 ships same day
022 175-1785 Dash decal for the Falcon 28 $9.68 1 usually ships 5-16 days
023 164-0290 Toggle switch $14.63 1 ships same day
024 175-8073 Contol plate cover $66.00 1 usually ships 1-5 days
025 999-0999 Screw 10-24 x 3/8 truss head phillips stainless steel $1.43 2 ships same day
026 175-8072 Flow control label $9.57 1 usually ships 1-5 days
027 175-0329 Rubber boot for switch $15.84 1 ships same day
028 999-1028 Screw 10-24 x 3/4 truss head phillips stainless steel $1.69 1 ships same day
029 999-0356 Nut 10-24 lock stainless steel $0.99 2 ships same day
030 175-6060 1.5amp circuit breaker $49.94 1 usually ships 5-16 days
031 175-6215 Circuit breaker 2.5 amp $36.08 1 ships same day
032 999-9099 Washer M10 flat stainless steel $0.99 2 ships same day
033 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
034 175-6209 Amp meter $72.38 1 usually ships 5-16 days
035 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
036 175-6052 15amp rectifier $24.09 1 ships same day
037 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
038 999-0356 Nut 10-24 lock stainless steel $0.99 4 ships same day
039 175-2721 Control housing (green) $165.11 1 usually ships 1-5 days
040 175-0340 Strain relief $10.12 1 ships same day
041 175-6218 14/3 pigtail cord 34 inch (yellow) $18.04 1 usually ships 5-16 days
042 175-2709 Handle adjustment tube $47.85 1 usually ships 1-5 days
043 175-2710 Handle adjustment pin $16.61 2 usually ships 1-5 days
044 175-2711 Handle adjustment locking pin $20.79 2 usually ships 1-5 days
045 175-2712 Spring $4.84 1 usually ships 1-5 days
046 175-8071 Wiring harness $152.02 1 usually ships 1-5 days
047 999-0424 Bolt 5/16-18 x 1 hex head stainless steel $0.99 1 ships same day
048 999-0553 Washer 5/16 medium split lock stainless steel $0.99 1 ships same day
049 175-3005 P clamp $3.41 1 usually ships 5-16 days
050 175-6158 Nut 1/2 conduit $3.96 2 usually ships 5-16 days
051 999-1411 Screw 10-24 x 1 round head slotted nylon $0.99 1 ships same day
052 999-0454 Screw 10-24 x 1/2 truss head phillips zinc plated $0.99 2 ships same day
053 175-0981 Bolt 5/8 x 2 shoulder $8.47 2 usually ships 1-5 days
054 175-0236 Cord belt clip $10.01 1 ships same day
055 175-0993 14/3 extension cord 75 foot $176.00 1 usually ships 5-16 days
056 175-6291 Handle spring $7.48 1 usually ships 5-16 days
057 999-0893 Screw 5/16-18 x 2 hex head stainless steel $0.99 1 ships same day
