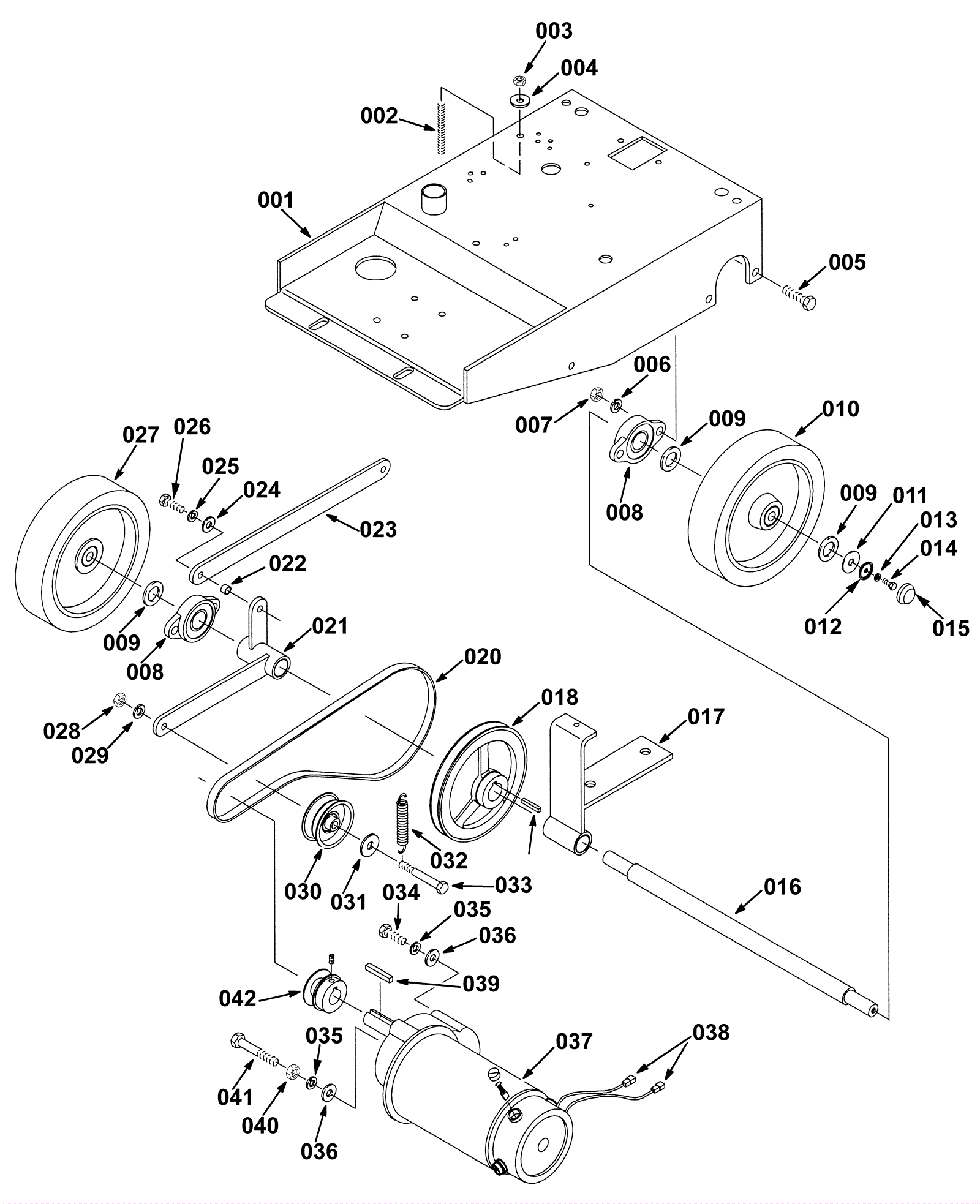

FALCON 2800 PLUS Drive Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-8049 Chassis weldment $422.18 1 usually ships 1-5 days
002 175-8050 Tension stud spring $12.10 1 usually ships 1-5 days
003 999-0170 Nut 3/8-16 hex plain finish $0.99 1 ships same day
004 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
005 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 4 ships same day
006 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
007 999-0170 Nut 3/8-16 hex plain finish $0.99 4 ships same day
008 175-8062 Flange bearing $77.33 2 usually ships 10-16 days
009 999-0187 Washer 1/2 flat plain finish $0.99 4 ships same day
010 175-1091 Lefthand wheel assembly $393.03 1 usually ships 10-16 days
011 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
012 175-1095 Washer $4.75 2 usually ships 10-16 days
013 999-0553 Washer 5/16 medium split lock stainless steel $0.99 2 ships same day
014 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 2 ships same day
015 175-1096 Wheel cap $4.09 2 usually ships 10-16 days
016 175-8061 Axle $97.68 1 usually ships 1-5 days
017 175-8060 Brush assembly pivot bracket $104.72 1 usually ships 1-5 days
018 175-8058 Axle pulley $86.68 1 usually ships 1-5 days
019 175-2601 Square keyway $4.88 1 usually ships 10-16 days
020 175-8059 Drive belt $35.09 1 ships same day
021 175-8057 Black idler pivot bracket $85.25 1 usually ships 1-5 days
022 175-2725 Bushing $7.48 3 usually ships 10-16 days
023 175-8063 Drive belt link (black) $37.62 1 usually ships 1-5 days
024 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 2 ships same day
025 999-0034 Washer 3/8 split lock plain finish $1.82 2 ships same day
026 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 2 ships same day
027 175-1090 Righthand wheel assembly $393.03 1 usually ships 10-16 days
028 999-0628 Nut 3/8-16 hex jam stainless steel $0.99 1 ships same day
029 999-0034 Washer 3/8 split lock plain finish $1.82 1 ships same day
030 175-8056 Idler pulley $34.87 1 usually ships 1-5 days
031 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 1 ships same day
032 175-8055 Belt tension spring $17.49 1 usually ships 1-5 days
033 175-3031 Screw 3/8-16x2 $5.28 1 usually ships 1-5 days
034 999-0493 Bolt 3/8-16 x 3/4 hex head stainless steel $0.99 5 ships same day
035 999-0034 Washer 3/8 split lock plain finish $1.82 4 ships same day
036 999-0617 Washer 3/8 x 1 flat stainless steel $1.82 4 ships same day
037a 175-8054 Drive motor $2,167.44 1 Includes 037b usually ships 1-5 days
037b 175-2773 Carbon brush (sold individually) $27.94 4 Included in 037a usually ships 10-16 days
038 175-0923 Male terminal $4.88 2 usually ships 10-16 days
039 172-2601 Axle Weldment (OBSOLETE) $264.33 1 usually ships 1-5 days
040 999-0170 Nut 3/8-16 hex plain finish $0.99 1 ships same day
041 175-3031 Screw 3/8-16x2 $5.28 1 usually ships 1-5 days
042 175-8053 Motor pulley $41.03 1 usually ships 1-5 days
