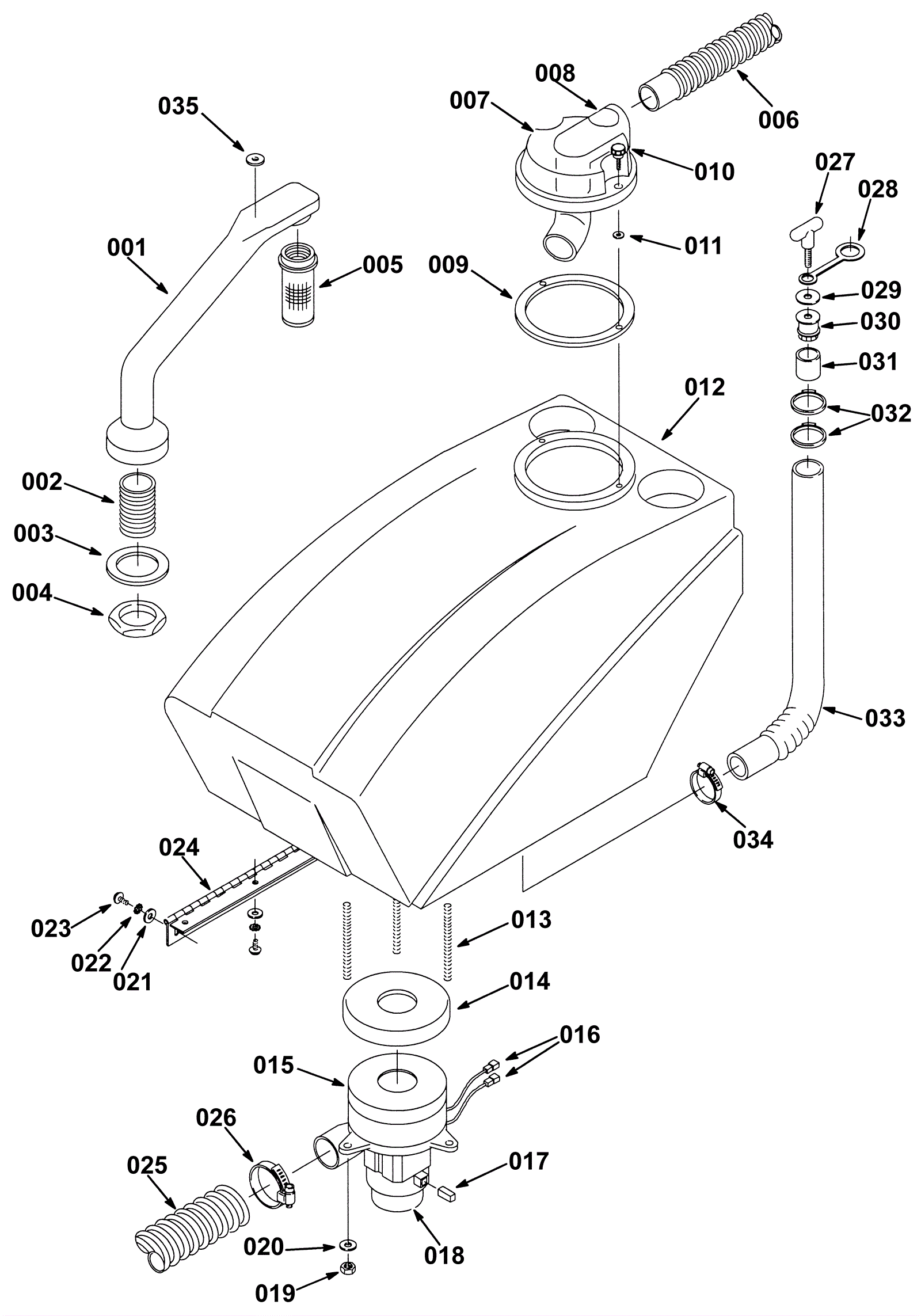

FALCON 2800 PLUS Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
000 175-2637 Standpipe with nipple assembly $181.50 1 Includes 001-002 usually ships 5-16 days
001 175-2638 Standpipe (OBSOLETE) $81.51 1 Included in 000 usually ships 1-5 days
002 175-2639 1 1/2 inch nipple fitting $21.12 1 Included in 000 usually ships 5-16 days
003 175-2640 Gasket $4.29 1 ships same day
004 175-2907 Nut 1 1/2 flanged hex $6.60 1 usually ships 5-16 days
005a 175-2642 Shut-off float $112.75 1 (OEM) usually ships 5-16 days
005b 991-5136 Shut-off float $33.33 1 (NON-OEM) ships same day
006 175-6270 Vacuum hose with cuff $37.95 1 usually ships 5-16 days
007a 175-8046 Dome assembly $194.59 1 Includes 007b-011 usually ships 5-16 days
007b 175-6265 Tank lid $40.26 1 Included in 007a usually ships 5-16 days
008 175-6109 Do not allow foam decal $5.28 1 Included in 007a usually ships 5-16 days
009 175-6049 Tank lid gasket $9.90 1 Included in 007a usually ships 5-16 days
010 175-6050 Knob $7.48 2 Included in 007a usually ships 5-16 days
011 175-6161 Nylon washer $3.08 2 Included in 007a usually ships 5-16 days
012 175-8045 Green recovery tank $634.48 1 usually ships 5-16 days
013 175-6087 Vacuum fan cover $22.66 3 usually ships 5-16 days
014 175-6085 Gasket $9.90 1 ships same day
015a 175-0198 120V 3 stage vacuum motor $590.70 1 Includes 016-018 ships same day
015b 991-1213 120V 3 stage vacuum motor tangential $177.60 1 (NON-OEM) ships same day
016 175-0142 1/4 inch male terminal $3.96 2 Included in 015 usually ships 5-16 days
017 175-6086 Carbon brush (pkg of 2) $23.87 1 Included in 015 usually ships 5-16 days
018 175-5289 Shell $24.31 1 Included in 015 usually ships 5-16 days
019 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 3 ships same day
020 999-0016 Washer 1/4 flat plain finish $0.99 3 ships same day
021 999-0016 Washer 1/4 flat plain finish $0.99 9 ships same day
022 999-0553 Washer 5/16 medium split lock stainless steel $0.99 9 ships same day
023 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel $0.99 9 ships same day
024 175-8044 Tank hinge $27.28 1 usually ships 1-5 days
025 175-8043 Vacuum hose 2 x 34 inch (white) $39.82 1 usually ships 1-5 days
026 175-2057 Hose clamp $5.61 1 usually ships 1-5 days
027a 175-6070 Drain plug assembly $83.49 1 Includes 027b-030 usually ships 5-16 days
027b 175-6071 Drain plug knob $16.17 1 Included in 027a usually ships 5-16 days
028 175-6072 Drain plug strap $17.60 1 Included in 027a usually ships 5-16 days
029 999-1446 Washer 3/8 x 1 1/2 fender stainless steel $0.99 1 Included in 027a ships same day
030 175-6073 Fitting $10.12 1 Included in 027a usually ships 5-16 days
031 175-6074 Drain hose sleeve $15.40 1 usually ships 5-16 days
032 175-1789 Hose clamp $4.95 2 ships same day
033 175-6173 Drain hose $70.62 1 ships same day
034 997-2007 Hose clamp $2.07 1 ships same day
035 175-6121 Brass plug $3.96 1 ships same day
