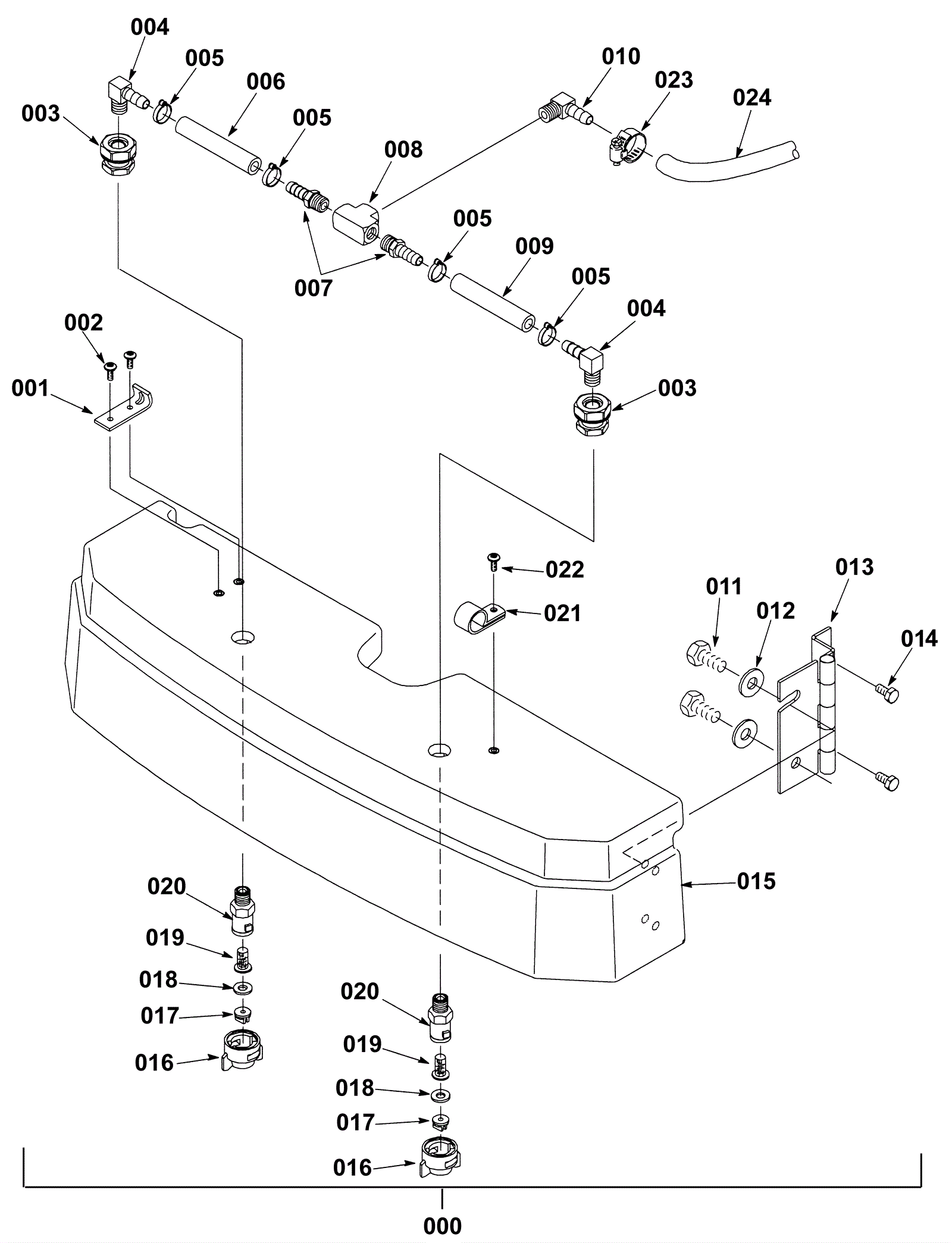

STRIVE Bumper Assembly

#PartDescriptionPriceReqNotesAvailability
000 175-8863 Bumper assembly $634.37 1 Includes 001 to 020 usually ships 1-5 days
001 175-8864 Bracket $15.62 1 usually ships 10-16 days
002 999-0434 Screw 6 x 3/8 pan head phillips $0.99 2 ships same day
003 175-4814 Brass strainer fitting $29.81 2 ships same day
004 175-2997 Elbow $13.86 2 usually ships 10-16 days
005 175-6032 Hose clamp $5.50 4 ships same day
006 175-8865 Hose 3/4 x 4 inch $9.90 1 usually ships 10-16 days
007 175-2613 Straight brass fitting $5.50 2 usually ships 10-16 days
008 175-6253 1/4 inch brass tee $9.57 1 usually ships 10-16 days
009 175-8865 Hose 3/4 x 4 inch $9.90 1 usually ships 10-16 days
010 175-2997 Elbow $13.86 1 usually ships 10-16 days
011a 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 (Before SN 10314331) ships same day
011b 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $4.09 2 (After SN 10314332) ships same day
012 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
013 175-8866 Hinge $69.30 1 usually ships 10-16 days
014 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 2 ships same day
015 275-5072 Bumper $307.78 1 usually ships 10-16 days
016 175-6431 Quick-jet cap $5.50 2 ships same day
017 175-8869 Brass fitting tip $27.94 2 usually ships 10-16 days
018 175-4193 Quick jet gasket $4.09 2 ships same day
019 175-4204 Check valve filter screen $17.16 2 ships same day
020 175-4192 Quick jet body $14.30 2 usually ships 10-16 days
021 175-8767 P clamp $5.50 1 usually ships 1-5 days
022 999-0434 Screw 6 x 3/8 pan head phillips $0.99 1 ships same day
023 175-6081 Hose clamp $4.84 1 ships same day
024a 175-8870 Hose 3/8 x 62 inch $20.35 6 (Before SN 10314331) usually ships 1-5 days
024b 275-5074 Hose 3/8 x 75 inch $22.00 6 (After SN 10314332) usually ships 10-16 days
N/S 175-1565 Pump out cover plate (OBSOLETE) $196.90 1 (16 gallon model with pump-out) usually ships 10-16 days
