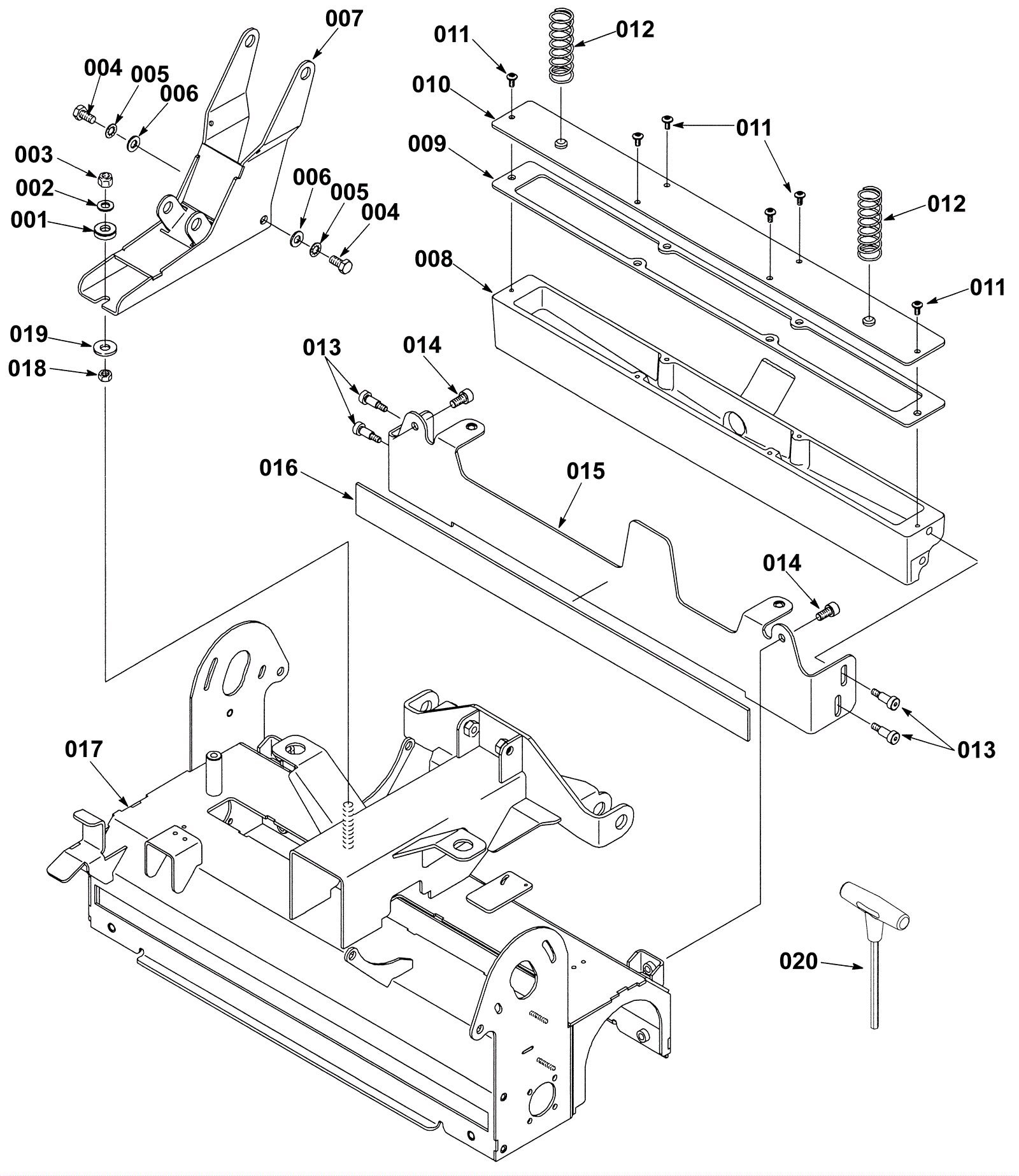

STRIVE Extraction Vacuum Shoe Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-4334 Washer spherical $15.29 1 usually ships 5-16 days
002 999-9097 Washer M8 flat stainless steel $0.99 1 ships same day
003 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 1 ships same day
004 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 2 ships same day
005 999-0406 Washer 5/16 internal star lock zinc plated $0.99 2 ships same day
006 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
007 175-8854 Scrub deck mounting bracket $296.78 1 usually ships 5-16 days
008 175-8856 Carpet pickup tool $712.47 1 usually ships 5-16 days
009 175-8857 Carpet tool gasket $12.98 1 usually ships 5-16 days
010 175-8858 Carpet tool plate $93.94 1 usually ships 5-16 days
011 175-4398 Screw M5-.8 x 10mm phillips truss head zinc $3.83 6 usually ships 5-16 days
012 175-8859 Compression spring $13.64 2 usually ships 5-16 days
013 175-8860 Bolt M6 x 1 stainless steel $21.01 4 ships same day
014 999-0802 Screw M8-1.25 x 16mm socket head $0.99 2 ships same day
015 175-8861 Mounting bracket $257.07 1 usually ships 5-16 days
016 175-8862 Gasket $17.49 1 usually ships 5-16 days
017 175-8825 Housing weldment $2,086.81 1 usually ships 5-16 days
018 999-1424 Nut M8-1.25 hex stainless steel $1.65 1 ships same day
019 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
020 175-8780 6mm hex head T-handle tool $45.10 1 ships same day
N/S 175-8855 Vacuum shoe assembly $1,505.79 1 (Includes 008-016) ships same day
