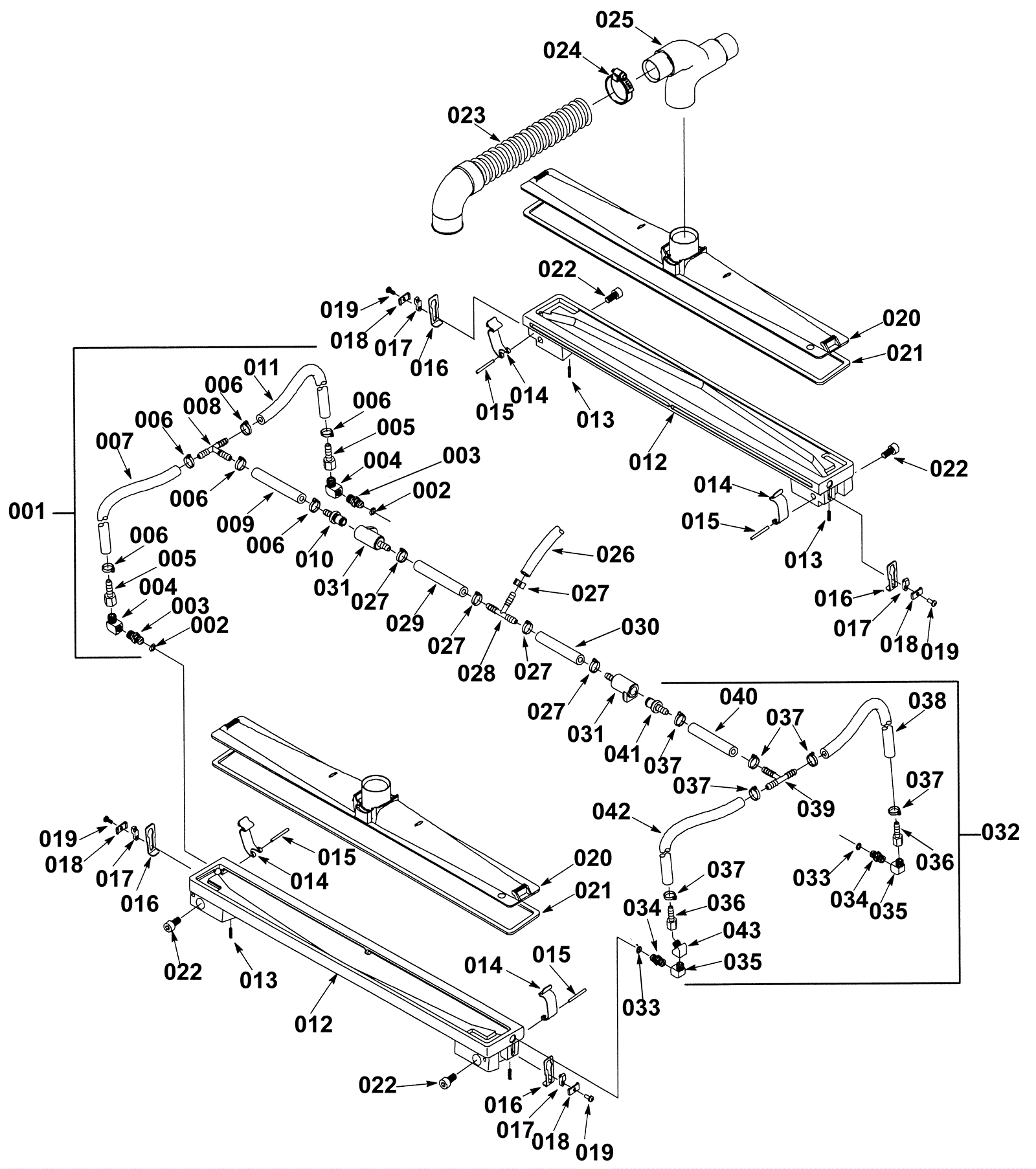

STRIVE ReadySpace Vacuum Shoe and Solution Flush Line Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-8834 Right side hose assembly $268.51 1 (Includes 002-011) usually ships 13-17 days
002 175-8835 O-ring seal $5.83 2 usually ships 13-17 days
003 175-8836 Brass tip fitting $40.26 2 ships same day
004 175-1661 90 degree elbow fitting $5.50 2 usually ships 13-17 days
005 175-3529 Brass fitting $5.50 2 usually ships 13-17 days
006 175-6170 Hose clamp $5.28 6 ships same day
007 175-8837 Hose 1/4 x 8 inch (gray) $12.87 1 usually ships 1-5 days
008 175-7303 1/4 inch union tee $11.11 1 usually ships 13-17 days
009 175-8838 Braided hose 1/4 x 1/2 x 4 inches (gray) $9.24 1 usually ships 1-5 days
010 175-8839 Strainer fitting $11.99 1 usually ships 13-17 days
011 175-7364 16 inch hose (gray) $15.73 2 usually ships 13-17 days
012a 175-8840 Roller tool assembly $978.12 2 (Includes 012b-021) ships same day
012b 175-8841 Roller vacuum tool $464.86 2 usually ships 13-17 days
013 175-8842 Compression spring $6.27 4 ships same day
014 175-8843 Vacuum tool cover mounting clip $5.50 4 usually ships 13-17 days
015 175-8844 Roll pin 1/8 x 1 1/4 inch $3.30 4 usually ships 13-17 days
016 175-8845 Nozzle retaining latch $11.66 4 usually ships 13-17 days
017 175-8846 Timing key $29.37 4 usually ships 13-17 days
018 175-8847 Latch retainer $20.46 4 usually ships 13-17 days
019 999-0534 Screw M4-.7 x 10mm pan head slotted zinc $0.99 4 usually ships 19-32 days
020 175-8848 Tool cover assembly $40.15 2 usually ships 13-17 days
021 175-8849 Gasket $13.75 2 usually ships 13-17 days
022 999-0802 Screw M8-1.25 x 16mm socket head $0.99 4 ships same day
023 175-8850 Vacuum hose 1 1/2 x 11 3/4 inch $32.45 1 usually ships 13-17 days
024 997-2007 Hose clamp $2.07 1 ships same day
025 175-8851 Hose fitting assembly $125.73 1 usually ships 13-17 days
026 175-7302 Hose 1/4 x 1/2 x 8 inches (gray) $11.66 1 usually ships 1-5 days
027 175-6170 Hose clamp $5.28 5 ships same day
028 175-7303 1/4 inch union tee $11.11 1 usually ships 13-17 days
029 175-8852 Hose 1/4 x 1/2 x 10 inches (gray) $13.97 1 usually ships 1-5 days
030 175-4877 Hose 1/4 x 9 1/2 inch (gray) $11.66 1 usually ships 13-17 days
031 175-5311 Female fitting with valve $60.72 2 usually ships 13-17 days
032 175-8853 Left side hose assembly $270.38 1 (Includes 033-043) usually ships 13-17 days
033 175-8835 O-ring seal $5.83 2 usually ships 13-17 days
034 175-8836 Brass tip fitting $40.26 2 ships same day
035 175-1661 90 degree elbow fitting $5.50 2 usually ships 13-17 days
036 175-3529 Brass fitting $5.50 2 usually ships 13-17 days
037 175-6170 Hose clamp $5.28 6 ships same day
038 175-4876 PVC hose 1/4 x 12 inch (gray) $18.48 1 usually ships 13-17 days
039 175-7303 1/4 inch union tee $11.11 1 usually ships 13-17 days
040 175-8838 Braided hose 1/4 x 1/2 x 4 inches (gray) $9.24 1 usually ships 1-5 days
041 175-8839 Strainer fitting $11.99 1 usually ships 13-17 days
042 175-8838 Braided hose 1/4 x 1/2 x 4 inches (gray) $9.24 1 usually ships 1-5 days
043 175-6041 Elbow 1/8 x 1/8 inch $6.49 1 usually ships 13-17 days
