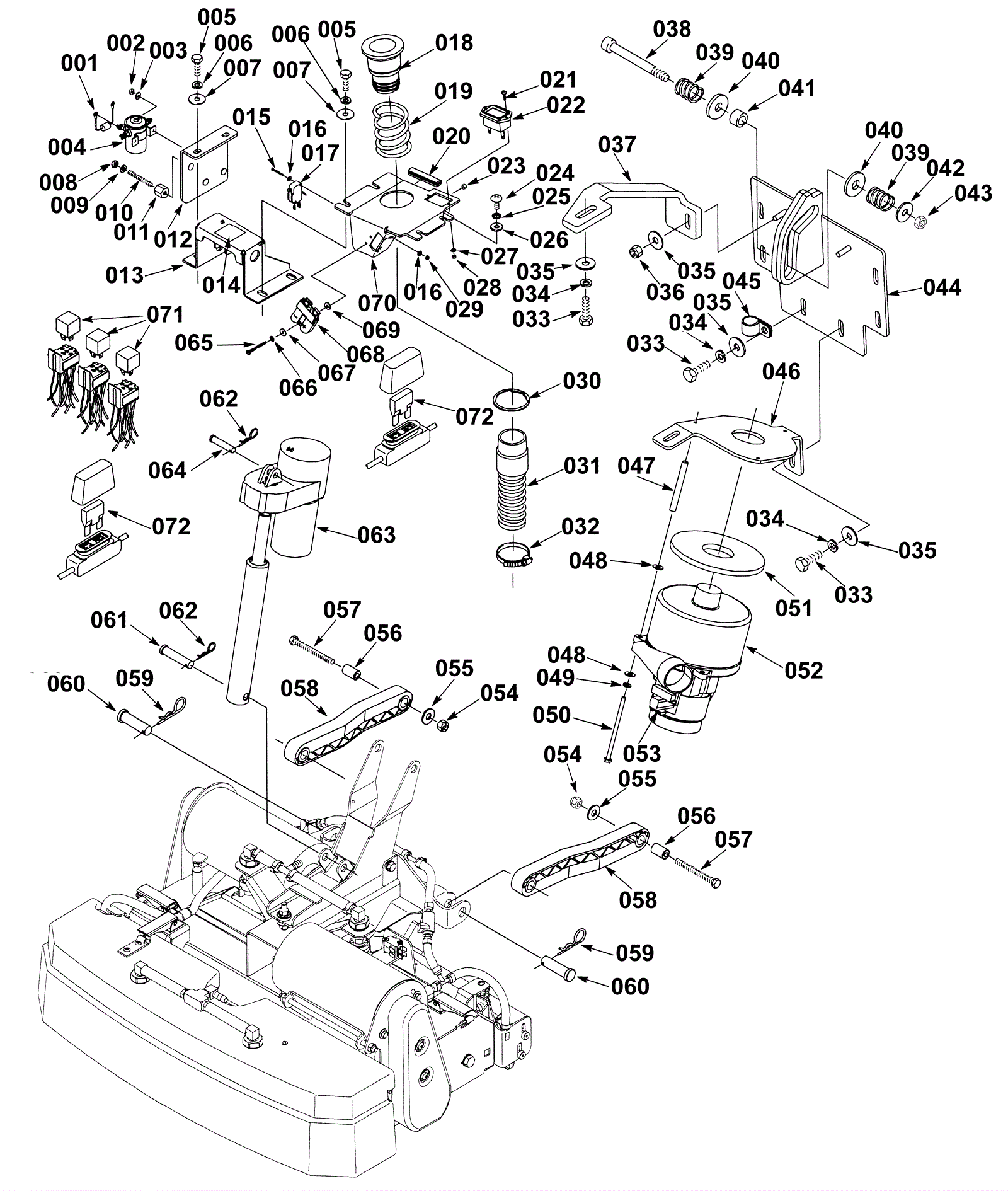

STRIVE Scrub Head Lift Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-2757 Diode with ring terminals (small) $11.44 1 usually ships 5-16 days
002 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 2 ships same day
003 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
004 175-2023 24V solenoid contactor $63.47 1 ships same day
005 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
006 999-1053 Washer 5/16 internal star lock stainless steel $0.99 4 ships same day
007 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
008 999-0181 Nut 1/4-20 hex jam plain finish $0.99 1 ships same day
009 999-0632 Washer 1/4 split lock stainless steel $0.99 1 ships same day
010 175-3227 Threaded rod $7.59 1 usually ships 1-5 days
011 175-3226 Insulated stand off $9.57 1 ships same day
012 175-4352 Contactor bracket $38.28 1 usually ships 1-5 days
013 175-8644 Actuator mounting bracket $122.10 1 usually ships 1-5 days
014 175-4351 General hazard decal $2.02 1 ships same day
015 175-1333 Screw M3-.5 x 20mm hex head $4.88 2 usually ships 5-16 days
016 999-1553 Washer M3.5 flat zinc plated $0.99 4 ships same day
017 175-4273 Switch $14.74 1 ships same day
018 175-3635 Transition tube $14.85 1 ships same day
019 175-4353 Compression spring $5.50 1 usually ships 5-16 days
020 175-8621 Plastic edging $11.22 1 usually ships 1-5 days
021 999-0738 Screw M3-.5 x 16mm pan head phillips zinc $0.99 2 ships same day
022 175-8810 Hour meter gauge $81.62 1 usually ships 5-16 days
023 999-0195 Nut 6-32 hex plain $0.99 2 ships same day
024 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
025 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
026 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
027 999-1521 Washer M3 flat stainless steel $0.99 2 ships same day
028 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
029 999-1161 Nut M3-.5 hex nylock stainless steel $0.99 2 ships same day
030 175-4355 Retaining ring $4.88 1 usually ships 5-16 days
031 175-8811 Vacuum hose 1 1/2 x 6 inch $30.25 1 (With short cuff) usually ships 5-16 days
032 997-2007 Hose clamp $2.07 1 ships same day
033 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 8 ships same day
034 999-1053 Washer 5/16 internal star lock stainless steel $0.99 8 ships same day
035 999-0024 Washer 5/16 flat stainless steel $1.34 9 ships same day
036 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 1 ships same day
037 175-4357 Bracket $26.07 1 usually ships 1-5 days
038 175-8812 Bolt 1/2 x 3 1/4 shield $5.50 1 usually ships 1-5 days
039 175-4371 Compression spring $4.88 2 usually ships 5-16 days
040 175-4358 Washer 1 1/2 thrust $14.08 2 usually ships 5-16 days
041 175-4359 Linkage roller $23.98 1 ships same day
042 999-0032 Washer 3/8 USS flat plain finish $2.42 1 ships same day
043 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel $3.96 1 ships same day
044 175-4013 Bracket $220.77 1 usually ships 1-5 days
045 175-3005 P clamp $4.22 1 usually ships 5-16 days
046 175-8813 Vacuum motor bracket $60.94 1 usually ships 1-5 days
047 175-4243 Spacer $6.82 3 usually ships 5-16 days
048 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
049 999-0632 Washer 1/4 split lock stainless steel $0.99 3 ships same day
050 999-1169 Bolt M6-1 x 100mm hex head full thread plain finish $1.91 3 ships same day
051 175-2657 Vacuum motor gasket $5.50 1 ships same day
052a 175-4361 24V 3 stage vacuum motor $810.26 1 usually ships 5-16 days
052b 991-1230 24V 3 stage vacuum motor tangential with snout $211.00 ships same day
053 175-2658 Carbon brush (pkg of 2) $36.30 1 ships same day
054 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
055 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
056 175-4343 1 inch tube $6.49 2 ships same day
057 999-9079 Screw M8 x 80mm hex head stainless steel $4.41 2 ships same day
058 175-2102 Scrub head lifting arm $49.94 2 ships same day
059 175-2106 Cotter hair pin $4.09 2 ships same day
060 175-2105 Clevis pin $6.82 2 ships same day
061 175-5083 Clevis pin $5.50 1 usually ships 1-5 days
062 175-4331 Cotter hair pin $4.88 2 ships same day
063 175-8841 Roller vacuum tool $434.39 1 usually ships 5-16 days
064 175-2111 Clevis pin $4.75 1 ships same day
065 999-0511 Screw 6-32 x 1 pan head phillips zinc plated $0.99 2 ships same day
066 999-0148 Washer #6 external star lock zinc plated $0.99 2 ships same day
067 999-1215 Washer #6 SAE flat zinc plated $0.99 2 ships same day
068 991-2103 50amp charger plug SB50 with pins (red) $6.17 1 ships same day
069 999-0393 Washer 3/16 flat aluminum $0.99 2 ships same day
070 175-8815 Bracket $100.43 1 usually ships 1-5 days
071 175-8635 40amp relay $29.26 3 ships same day
072 175-8798 FUSE, BLADE, 030A [MAXI] (Tennant Industrial) $16.50 2 usually ships 1-5 days
