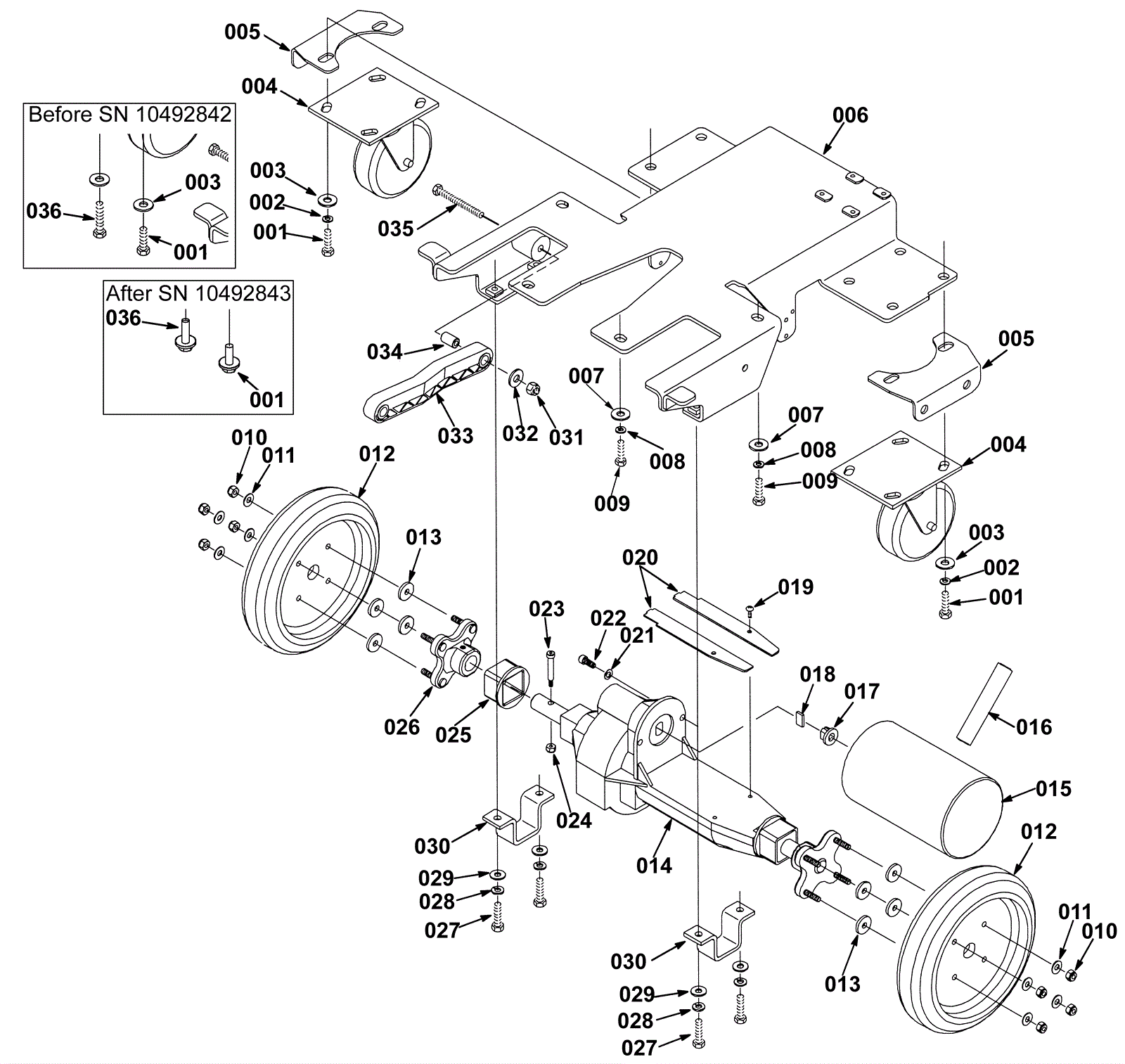

STRIVE Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
001a 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel $2.64 8 ships same day
001b 999-0784 Screw M8-1.25 x 16mm hex head stainless steel $1.74 4 ships same day
001c 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 4 ships same day
002 999-1053 Washer 5/16 internal star lock stainless steel $0.99 8 ships same day
003 999-0024 Washer 5/16 flat stainless steel $1.34 8 ships same day
004a 175-2991 4 inch caster wheel $63.27 2 (OEM) ships same day
004b 991-2016 4 inch caster wheel $58.28 2 (NON-OEM) ships same day
005 175-8807 Caster tiedown bracket $18.37 2 usually ships 5-16 days
006 175-8808 Transaxle frame $322.41 1 usually ships 1-5 days
007 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
008 999-1053 Washer 5/16 internal star lock stainless steel $0.99 4 ships same day
009 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 4 ships same day
010 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 8 ships same day
011 999-0016 Washer 1/4 flat plain finish $0.99 8 ships same day
012 175-4347 Wheel $127.27 2 usually ships 5-16 days
013a 175-1097 Washer flat stainless steel $5.50 8 ships same day
013b 175-3622 24V transaxle motor assembly $2,264.24 1 (Includes 014-026) usually ships 5-16 days
014 175-3654 Transaxle body $2,135.87 1 usually ships 5-16 days
015 175-3657 24V transaxle motor $666.16 1 (Includes 016-022) usually ships 5-16 days
016 175-7898 Carbon brush (pkg of 4) $66.77 1 ships same day
017 175-3655 Transaxle coupling $10.01 1 ships same day
018 175-3656 Transaxle key $10.23 1 usually ships 5-16 days
019 175-3664 Screw 8 x 1/2 panhead phillips $1.58 2 usually ships 1-5 days
020 N/A Not available Call for price 2 (Shaft cover) usually ships 3-26 days
021 999-0238 Washer 1/4 internal star lock zinc plated $0.99 2 ships same day
022 175-3663 Screw 1/4-20 x 5/8 socket $3.04 2 usually ships 1-5 days
023 999-0745 Screw 10-24 x 1 1/4 socket head shoulder $2.67 2 ships same day
024 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 2 ships same day
025 175-3660 Transaxle sleeve $10.34 2 usually ships 5-16 days
026 275-5229 Transaxle wheel hub with retainer $137.61 2 usually ships 5-16 days
027 999-0248 Bolt M8-1.25 x 30mm hex head full thread plain finish $0.99 4 ships same day
028 999-1053 Washer 5/16 internal star lock stainless steel $0.99 4 ships same day
029 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
030 175-4349 Transaxle bracket $37.51 2 usually ships 5-16 days
031 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 (Before SN 10492842) ships same day
032a 999-0787 Bolt M8-1.25 x 40mm hex head full thread stainless steel $2.48 2 (After Sn 10492843) ships same day
032b 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
033 175-2102 Scrub head lifting arm $49.94 2 ships same day
034 175-4343 1 inch tube $6.49 2 ships same day
035 999-9079 Screw M8 x 80mm hex head stainless steel $4.41 2 ships same day
N/S 175-0921 Wire tie $4.88 2 usually ships 5-16 days
