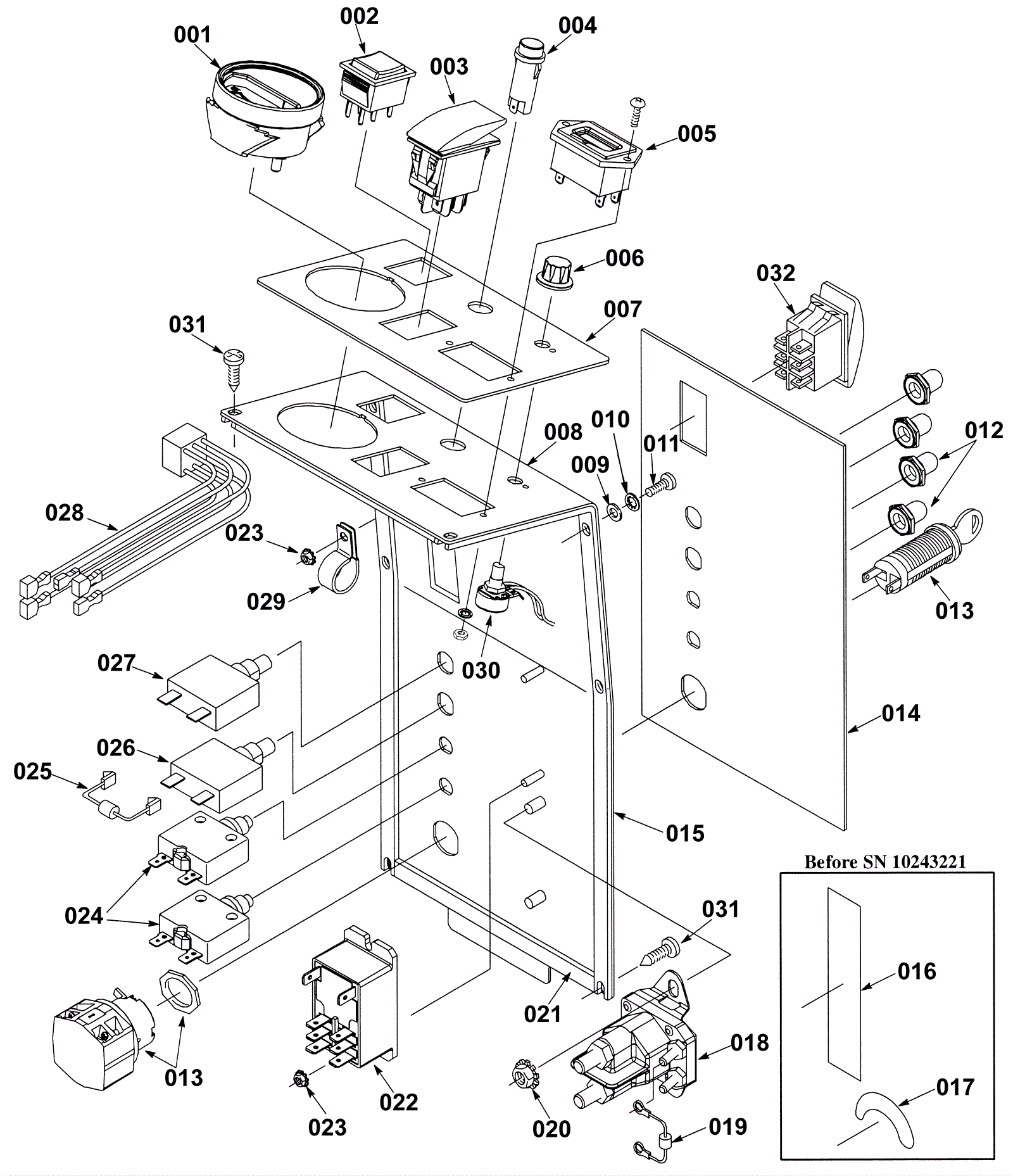

STRIVE Component Panel Assembly

#PartDescriptionPriceReqNotesAvailability
001 175-8800 Brush pressure gauge $79.86 1 usually ships 5-16 days
002 175-8630 Brush pressure switch $27.28 1 ships same day
003 175-4822 Rocker switch $41.69 1 ships same day
004 175-2849 Indicator light $14.08 1 usually ships 5-16 days
005 175-3728 24V battery gauge with screw $257.07 1 usually ships 5-16 days
006 175-4281 Potentiometer knob $14.08 1 usually ships 5-16 days
007 175-8801 Main dash decal $29.59 1 usually ships 1-5 days
008a 175-8802 Console panel $61.49 1 (After SN 10243220) usually ships 1-5 days
008b 175-8803 Console panel (OBSOLETE) $55.88 1 (Before SN 10243221) usually ships 1-5 days
009 999-9089 Washer M4 flat stainless steel $0.99 4 ships same day
010 999-1083 Washer #8 internal star lock stainless steel $0.99 4 ships same day
011 999-0530 Screw M4-.7 x 8mm pan head slotted zinc $0.99 4 ships same day
012 175-7699 Switch boot $11.00 2 usually ships 5-16 days
013a 175-4287 Key switch assembly $143.33 1 ships same day
013b 175-0185 Double sided key (steel) $15.73 1 ships same day
014 175-8804 Console panel decal $22.33 1 usually ships 1-5 days
015 175-4291 Console gasket $4.09 2 usually ships 5-16 days
016 175-8805 Circuit breaker decal (OBSOLETE) $16.06 1 (Before SN 10243221) usually ships 1-5 days
017 175-4288 Key switch decal $14.30 1 (Before SN 10243221) usually ships 1-5 days
018 175-4293 24V relay $60.39 1 usually ships 5-16 days
019 175-2757 Diode with ring terminals (small) $11.44 1 usually ships 5-16 days
020 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
021 175-4292 Console gasket $18.15 2 ships same day
022 175-8806 20amp relay $62.04 1 usually ships 5-16 days
023 175-4290 Nut M4 x .70mm hex $2.90 3 usually ships 1-5 days
024 175-6630 17amp circuit breaker $25.63 2 usually ships 5-16 days
025 175-4295 Terminal diode $17.60 1 usually ships 5-16 days
026 175-2337 20amp circuit breaker $15.51 1 ships same day
027 175-2336 10amp circuit breaker $15.51 1 ships same day
028 275-5067 Relay interrupter $265.43 1 usually ships 5-16 days
029 175-8767 P clamp $5.50 1 usually ships 1-5 days
030 175-4285 Potentiometer $36.19 1 usually ships 5-16 days
031 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling $0.99 4 ships same day
032 175-3098 Lighted on/off rocker switch $33.55 1 ships same day
