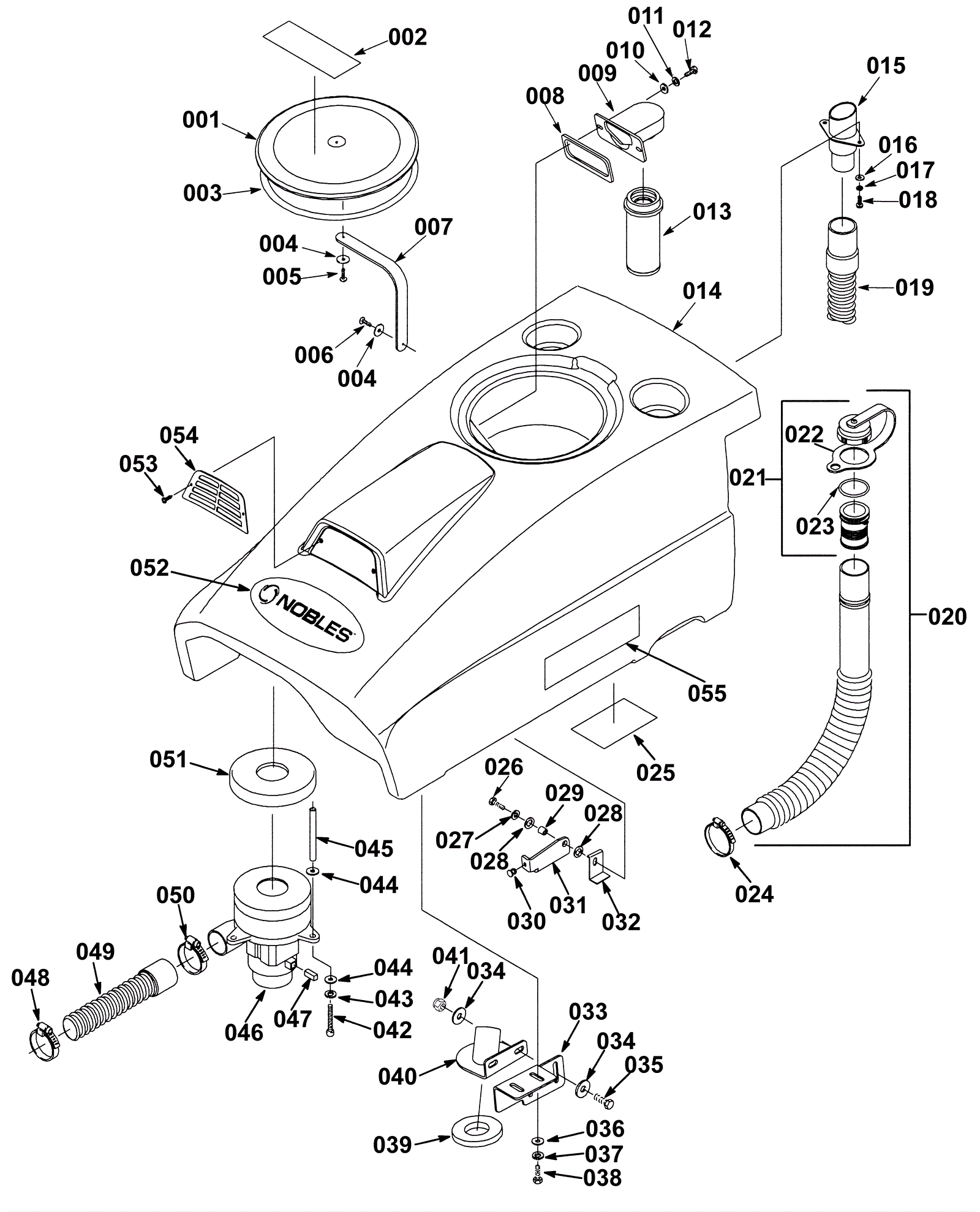

STRIVE Recovery Tank Assembly

#PartDescriptionPriceReqNotesAvailability
001a 175-8784 Recovery tank lid assembly (lid, gasket, & label) $224.07 1 (Includes 001-003) ships same day
001b 991-7141 Recovery tank lid assembly $108.22 1 ships same day
002 175-2868 Warning decal $12.32 1 ships same day
003 175-8785 Recovery lid gasket $12.10 1 usually ships 5-16 days
004 175-5797 Washer 1/6 flat zinc $4.09 2 ships same day
005 999-1114 Screw 10-16 x 3/8 pan head phillips hi-lo self tapping zinc $4.88 1 ships same day
006 999-0434 Screw 6 x 3/8 pan head phillips $0.99 1 ships same day
007 175-8786 Strap $5.50 1 ships same day
008 175-4231 Float mount gasket $5.50 1 ships same day
009 175-4232 Float cage mount $20.79 1 ships same day
010 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
011 999-1117 Washer M6 split lock stainless steel $0.99 2 ships same day
012 999-1168 Screw M6-1 x 20mm pan head phillips stainless steel $1.01 2 ships same day
013a 175-1804 Shut-off float $77.22 1 ships same day
013b 991-3108 Shut off float $35.19 1 (NON-OEM) ships same day
014 175-8787 Recovery tank $835.78 1 usually ships 1-5 days
015 175-4233 Hose adaptor $30.25 1 ships same day
016 175-4234 Washer M5.3 flat $4.09 2 usually ships 5-16 days
017 999-9132 Washer M5 split lock stainless steel $0.99 2 ships same day
018 175-3234 Screw M5-.8 x 10mm pan head $3.96 2 usually ships 5-16 days
019 175-0887 Vacuum hose 1 1/2 x 33 inch $46.75 1 usually ships 5-16 days
020a 175-1153 Drain hose assembly $88.44 1 (Includes 021) (OEM) usually ships 5-16 days
020b 991-5126 Drain hose assembly $34.19 (NON-OEM) ships same day
021a 175-4214 Drain plug assembly $20.35 1 (Includes 022-023) (OEM) ships same day
021b 991-3028 Drain plug assembly $13.43 1 (NON-OEM) ships same day
022 175-4214 Drain plug assembly $20.35 1 ships same day
023 175-5804 O-ring $11.77 1 ships same day
024 997-2007 Hose clamp $2.07 1 ships same day
025 175-8788 Battery diagram decal $45.21 1 usually ships 1-5 days
026 999-0517 Bolt M8-1.25 x 16mm hex head full thread zinc $0.99 1 ships same day
027 999-0553 Washer 5/16 medium split lock stainless steel $0.99 1 ships same day
028 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel $0.99 2 ships same day
029 175-2673 Bushing $3.83 1 usually ships 5-16 days
030 175-7780 Rubber bumper $4.22 1 usually ships 5-16 days
031 175-4241 Tank support $35.75 1 usually ships 1-5 days
032 175-4236 Stop bracket $39.49 1 usually ships 1-5 days
033 175-8789 Vacuum mounting bracket $47.08 1 usually ships 1-5 days
035 999-1133 Bolt M8-1.25 x 20mm hex head full thread plain $0.99 2 ships same day
036 999-0016 Washer 1/4 flat plain finish $0.99 2 ships same day
037 999-0632 Washer 1/4 split lock stainless steel $0.99 2 ships same day
038 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 2 ships same day
039 175-2028 Gasket $9.13 1 usually ships 5-16 days
040 175-4247 Bracket $89.65 1 usually ships 1-5 days
041 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
042 999-1169 Bolt M6-1 x 100mm hex head full thread plain finish $1.91 3 ships same day
043 999-0632 Washer 1/4 split lock stainless steel $0.99 3 ships same day
044 999-0016 Washer 1/4 flat plain finish $0.99 6 ships same day
045 175-4243 Spacer $6.82 3 usually ships 5-16 days
046a 175-4245 24V 3 stage vacuum motor $424.82 1 (Includes 047) usually ships 1-5 days
046b 991-1210-D 24V 3 stage vacuum motor tangential with Delphi plug $192.50 1 ships same day
047 175-2658 Carbon brush (pkg of 2) $36.30 1 ships same day
048 997-2007 Hose clamp $2.07 1 ships same day
049 175-4246 Vacuum hose with one cuff $29.59 1 usually ships 5-16 days
050 175-2057 Hose clamp $5.83 1 usually ships 1-5 days
051 175-2657 Vacuum motor gasket $5.50 1 ships same day
052 275-5867 Front decal $10.12 1 ships same day
053 175-8791 Screw M4 x 7 x 8 truss head $5.28 2 usually ships 1-5 days
054 175-8792 Battery cover grill $14.85 1 usually ships 5-16 days
055 375-1675 Strive decal (Tennant Industrial) $38.94 2 usually ships 5-16 days
